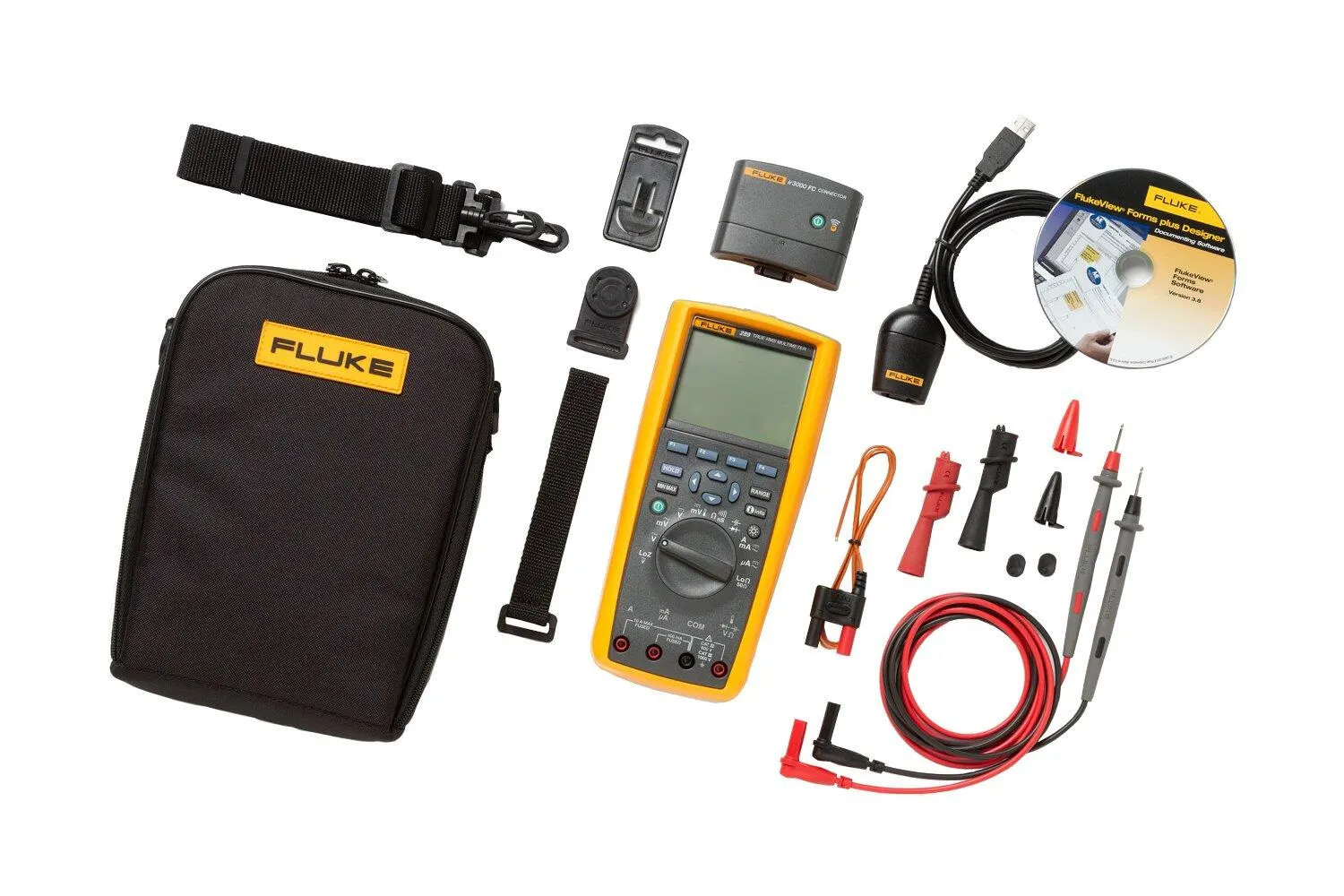

Fluke 287 FlukeView® Forms Combo Kit with IR3000 FC Connector

Maximize productivity with the combined Fluke 287 and FlukeView® Forms Combo Kit. With built-in data logger and TrendCapture capability, the 287 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs.

Manufacturer part number (MPN)

4699316 Brand: Fluke Category: Tools Function Range and Resolution: Basic Accuracy 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V: 0.025 % AC volts: 0.4 % (True-RMS) AC current: 0.6 % (True-RMS) -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F): 1.0 % 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz: 0.005 % Connectivity: Optional infrared connector via Fluke ir3000 FC Maximum voltage between any terminal and earth ground: 1000 V Battery type: 6 AA alkaline batteries, NEDA 15A IECLR6 Battery life: 100 hours minimum, 200 hours in logging mode Temperature: Operating: -20 °C to 55 °C; Storage: -40 °C to 60 °C Relative humidity: 0 to 90 % (0 t 37 °C), 0 to 65 % (37 °C to 45 °C), 0 to 45 % (45 °C to 55 °C) Electromagnetic compatibility: EMC EN61326-1 Vibration: Random vibration per MIL-PRF-28800F Class 2 Shock: 1 meter drop per IEC/EN 61010-1 3rd Edition Size (HxWxL): 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in) Weight: 870.9 g (28 oz) Multiple on screen displays: Yes True-RMS AC bandwidth: 100 kHz dBV/dBm: Yes DC mV resolution: 1 μV Megohm range: Up to 500 MΩ Conductance: 50.00 nS Continuity beeper: Yes Temperature (°C and °F): -200 °C to 1350 °C Battery/fuse access: Yes/Yes Elapse time clock: Yes Time of day clock: Yes Min-max-avg: Yes Frequency: Yes Duty cycle/pulse width: Yes Info button on board help: Yes Hold: Yes Isolated optical interface: Yes Auto/touch hold: Yes Reading memory: Yes Log to PC: Yes On board logging with TrendCapture: Yes Logging memory: Up to 10,000 readings Wireless connectivity (optional): Yes

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/fluke-287-ir3000-fc-kit
