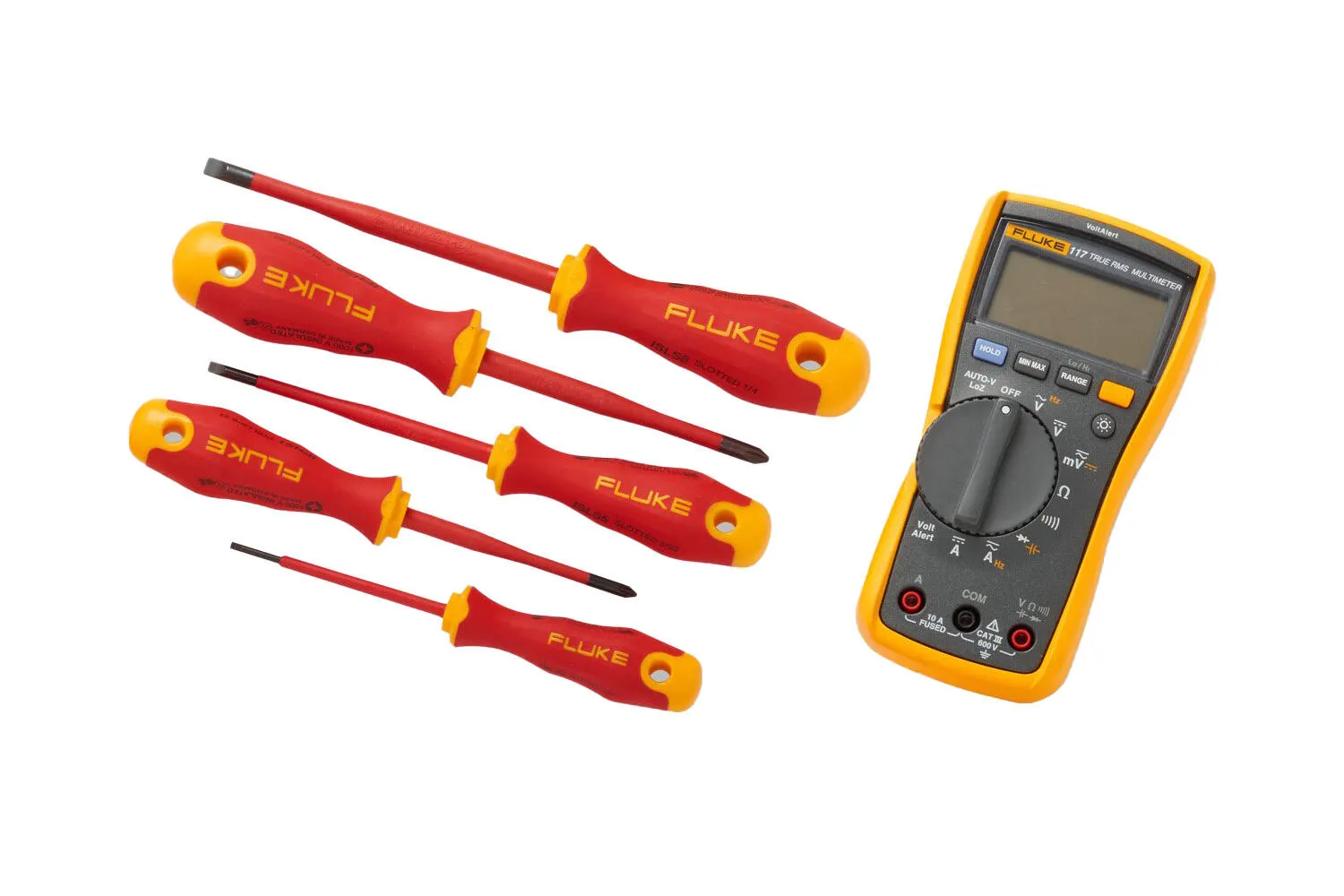

Fluke 117 Electrician's Multimeter plus insulated hand tools starter kit

Fluke 117 digital multimeter and heavy-duty insulated hand tools.

Manufacturer part number (MPN)

5067428

Brand

Fluke

Category

Tools

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2

Fuse for A input

11 A, 1000 V FAST Fuse (Fluke PN 803293)

Display

Digital: 6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating temperature

-10°C to +50°C

Storage temperature

-40°C to +60°C

Battery type

9 volt Alkaline, NEDA 1604A / IEC 6LR61

Battery life

400 hours typical, without backlight

DC millivolts Range/resolution

600.0 mV / 0.1 mV

DC millivolts Accuracy

±([% of reading] + [counts]): 0.5% + 2

DC volts Range/resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V

DC volts Accuracy

±([% of reading] + [counts]): 0.5% + 2

Auto volts Range/resolution

600.0 V / 0.1 V

Auto volts Accuracy

2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts¹ True RMS Range/resolution

600.0 mV / 0.1 mV

AC millivolts¹ True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

AC volts¹ True RMS Range/resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V

AC volts¹ True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

Continuity Range/resolution

600 Ω / 1 Ω

Continuity Accuracy

Beeper on 250 Ω detects opens or shorts of 500 μs or longer.

Ohms Range/resolution

600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ

Ohms Accuracy

0.9% + 1

Diode test Range/resolution

2.00 V / 0.001 V

Diode test Accuracy

0.9% + 2

Capacitance Range/resolution

1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF

Capacitance Accuracy

1.9% + 2

Lo-Z capacitance Range

1 nF to 500 μF

Lo-Z capacitance Accuracy

10% + 2 typical

AC amps True RMS (45 Hz to 500 Hz) Range/resolution

6.000 A / 0.001 A 10.00 A / 0.01 A

AC amps True RMS (45 Hz to 500 Hz) Accuracy

1.5% + 3 20 A continuous overload for 30 seconds max

DC amps Range/resolution

6.000 A / 0.001 A 10.00 A / 0.01 A

DC amps Accuracy

1.0% + 3 20 A continuous overload for 30 seconds max

Hz (V or A input)2 Range/resolution

99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz

Hz (V or A input)2 Accuracy

0.1% + 2

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Warranty

3 years

HS Code

9030.33
