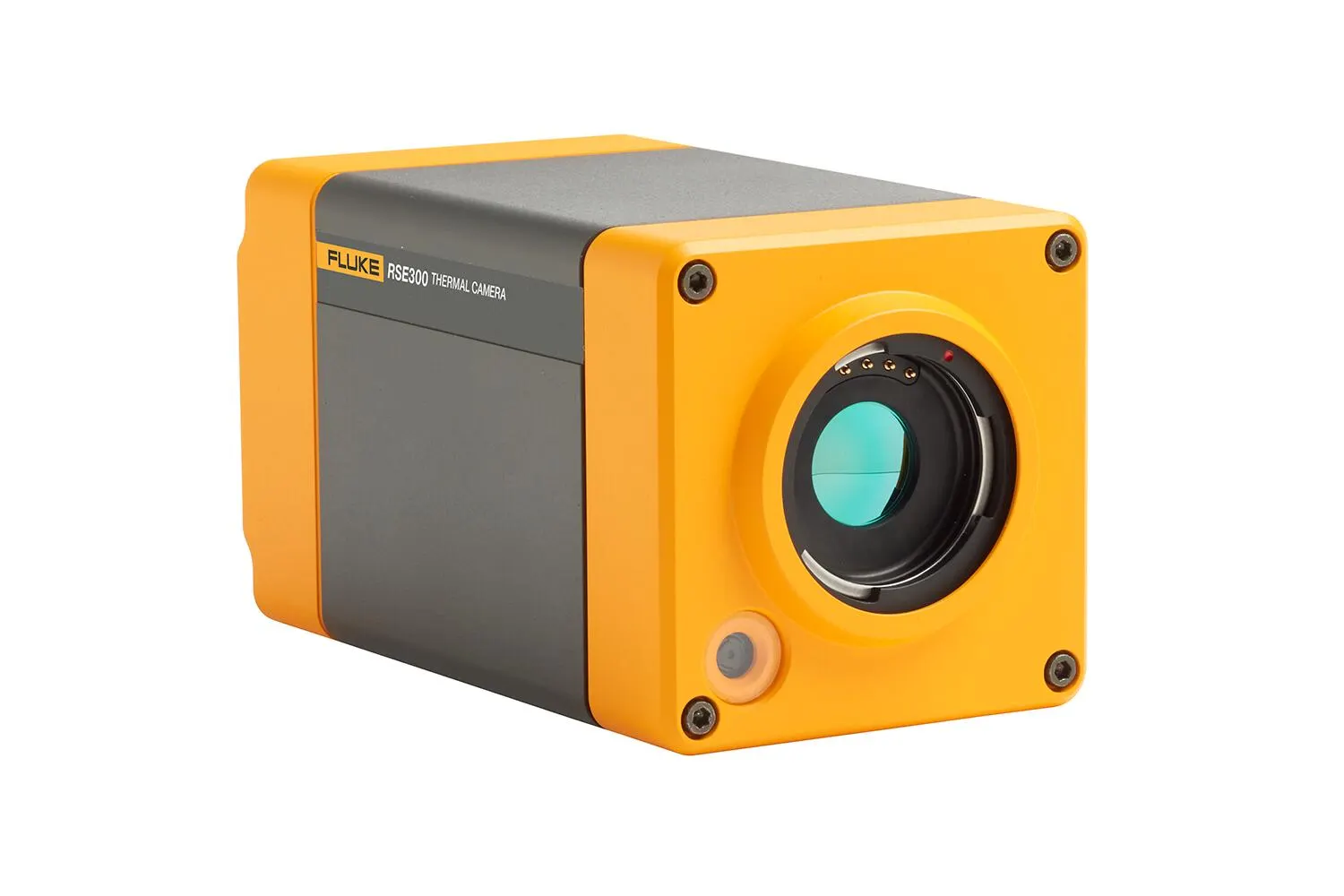

Fluke RSE300 Mounted Infrared Camera

A high performance, 320 x 240 infrared camera. Perfect for streaming and analyzing thermal data, with plug-ins to MATLAB® and LabVIEW®

Manufacturer part number (MPN)

4944776 Brand: Fluke Category: Tools IFOV with standard lens (spatial resolution): 1.85 mRad Detector resolution: 320 x 240 (76,800 pixels) Field of view: 34 °H x 25.5 °V minimum focus distance: 15 cm (approx. 6 in) Camera focus options: Focus is adjusted in SmartView® R&D desktop software IR-Fusion® technology: Yes, in SmartView® R&D desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image Thermal sensitivity (NETD): ≤ 0.030 °C at 30 °C target temp (30 mK)* Filter mode (NETD improvement): Yes Level and span: Smooth auto and manual scaling, in SmartView® R&D desktop software Fast auto toggle between manual and auto modes: Yes, in SmartView® R&D desktop software Fast auto-rescale in manual mode: Yes, in SmartView® R&D desktop software minimum span (in manual mode): 0.1 °C (0.18 °F), in SmartView® R&D desktop software minimum span (in auto mode): <1.0 °C (<1.8 °F), in SmartView® R&D desktop software Built-in digital camera (visible light): 5 megapixel industrial performance Frame rate: 60 Hz or 9 Hz versions digital zoom: Variable up to 16x in SmartView® R&D desktop software Image capture, review, save mechanism Image file formats: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files Software: Smartview R&D desktop software - streaming image capture and analysis Smartview Classic software - image analysis and reporting Compatible with MATLAB and LabVIEW software Export file formats with SmartView® desktop software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF Voice annotation: Yes Text annotation: Yes Video recording: Yes File formats video: Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3) Remote display viewing: Yes, see the live stream of the camera display on your PC via Smartview R&D desktop software Remote control operation: Yes, through Smartview R&D desktop software Temperature measurement range (not calibrated below -10 °C): -10 °C to +1200 °C (14 °F to +2192 °F) Accuracy: ± 2 °C or ± 2 %, whichever is greater Reflected background temperature compensation: Yes Transmission correction: Yes Live line marker: Yes Standard palettes: 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Ultra Contrast™ palettes: 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra Color alarms (temperature alarms): Yes, high temperature, low temperature, and isotherms (within range) Infrared spectral band: 8 μm to 14 μm (long wave) Operating temperature: -10 °C to +50 °C (14 °F to 122 °F) Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F) without batteries Relative humidity: 10 % to 95 % non-condensing Center-Point temperature measurement: Yes Spot temperature: Yes, hot and cold spot markers User-definable spot markers: Unlimited user-definable spot markers, in software Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display Electromagnetic compatibility: EN 61326-1:2013 IEC 61326-1:2013; (Industrial) US FCC: CFR 47, Part 15 Subpart B Class A Vibration: IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis Shock: IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis Size (H x W x L): 8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in) Weight (battery not included): 1 kg (2.2 lb) Enclosure rating: IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions) Warranty: Two years (standard), extended warranties are available Recommended calibration cycle: Two-years (assumes normal operation and normal aging) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
