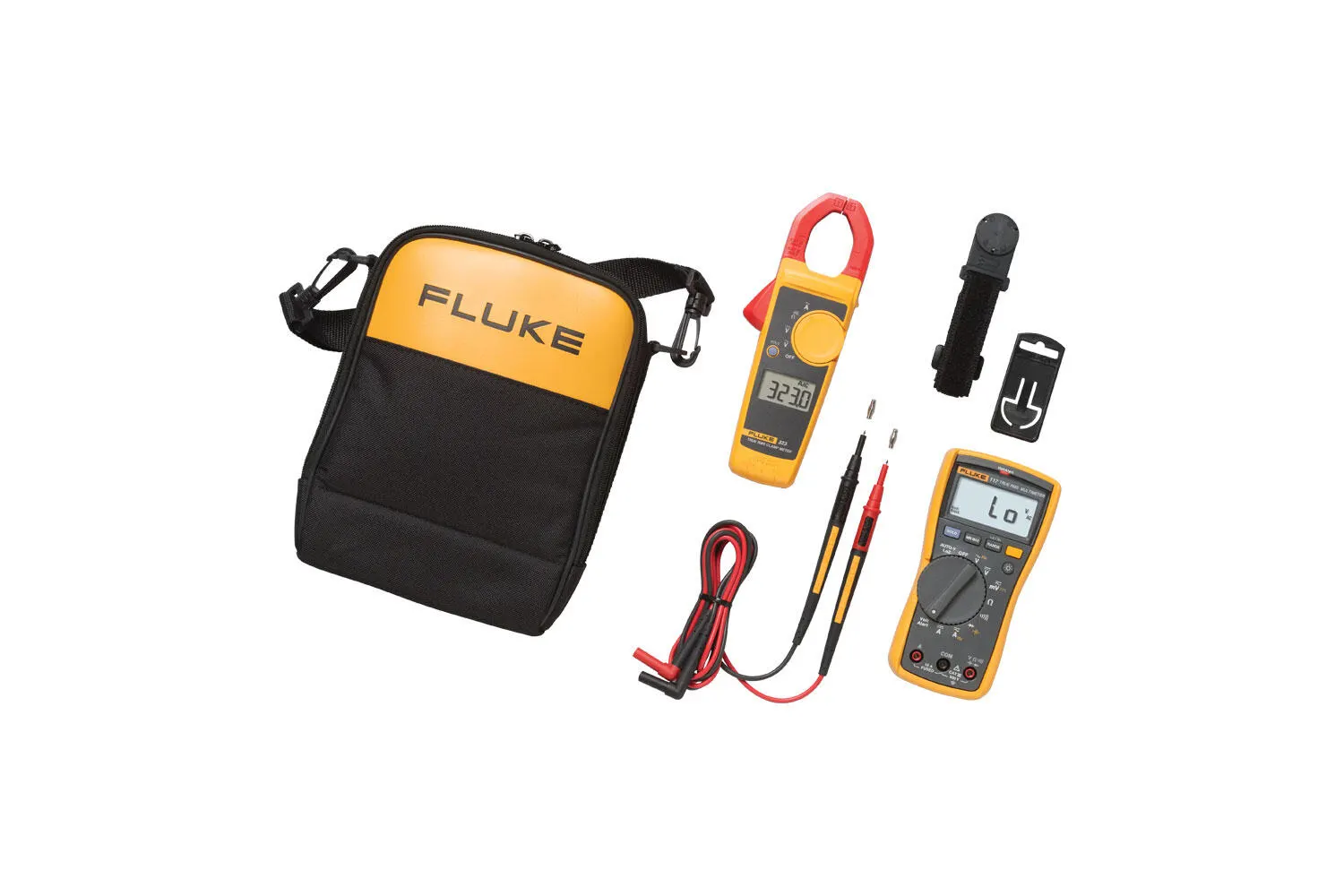

Fluke 117/323 Electricians Combo Kit, Digital Multimeter and Clamp Meter

Electrician’s combo kit with the Fluke 117 digital multimeter and Fluke 323 clamp meter.

Manufacturer part number (MPN)

4296041

Brand

Fluke

Category

Tools

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2

Fuse for A input

11 A, 1000 V FAST Fuse (Fluke PN 803293)

Display

Digital: 6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating temperature

-10 °C to +50 °C

Storage temperature

-40 °C to +60 °C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery life

400 hours typical, without backlight

DC millivolts Range/Resolution

600.0 mV / 0.1 mV

DC millivolts Accuracy

±([% of reading] + [counts]): 0.5% + 2

DC volts Range/Resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V

DC volts Accuracy

±([% of reading] + [counts]): 0.5% + 2

Auto volts Range/Resolution

600.0 V / 0.1 V

Auto volts Accuracy

2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts¹ True RMS Range/Resolution

600.0 mV / 0.1 mV

AC millivolts¹ True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

AC volts¹ True RMS Range/Resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V

AC volts¹ True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

Continuity Range/Resolution

600 Ω / 1 Ω

Continuity Accuracy

Beeper on 250 Ω; detects opens or shorts of 500 μs or longer.

Ohms Range/Resolution

600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ

Ohms Accuracy

0.9% + 1

Diode test Range/Resolution

2.00 V / 0.001 V

Diode test Accuracy

0.9% + 2

Capacitance Range/Resolution

1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF

Capacitance Accuracy

1.9% + 2

Lo-Z capacitance Range

1 nF to 500 μF

Lo-Z capacitance Accuracy

10% + 2 typical

AC amps True RMS (45 Hz to 500 Hz) Range/Resolution

6.000 A / 0.1 A 10.00 A / 0.01 A

AC amps True RMS (45 Hz to 500 Hz) Accuracy

1.5% + 3 20 A continuous overload for 30 seconds max

DC amps Range/Resolution

6.000 A / 0.1 A10.00 A / 0.01 A

DC amps Accuracy

1.0% + 3 20 A continuous overload for 30 seconds max

Hz (V or A input)² Range/Resolution

99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz

Hz (V or A input)² Accuracy

0.1% + 2

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Warranty

3 years

AC current Range

400.0 A

AC current Accuracy

2% ±5 digits (45 Hz to 65 Hz) 2.5% ±5 digits (65 Hz to 400 Hz)

AC voltage Range

600.0 V

AC voltage Accuracy

1.5% ±5 digits

DC voltage Range

600.0 V

DC voltage Accuracy

1.0% ±5 digits

Resistance Range/Resolution

400.0 Ω/ 4000 Ω

Resistance Accuracy

1.0% ±5 digits

Continuity

≤ 70 Ω

AC response

True RMS

Data hold

Yes

Size H x W x D (mm)

207 x 75 x 34

Size Max wire diameter

30 mm (600 MCM)

Size Weight

265 g

Category rating

CAT III 600 V CAT IV 300 V

HS Code

9030.33
