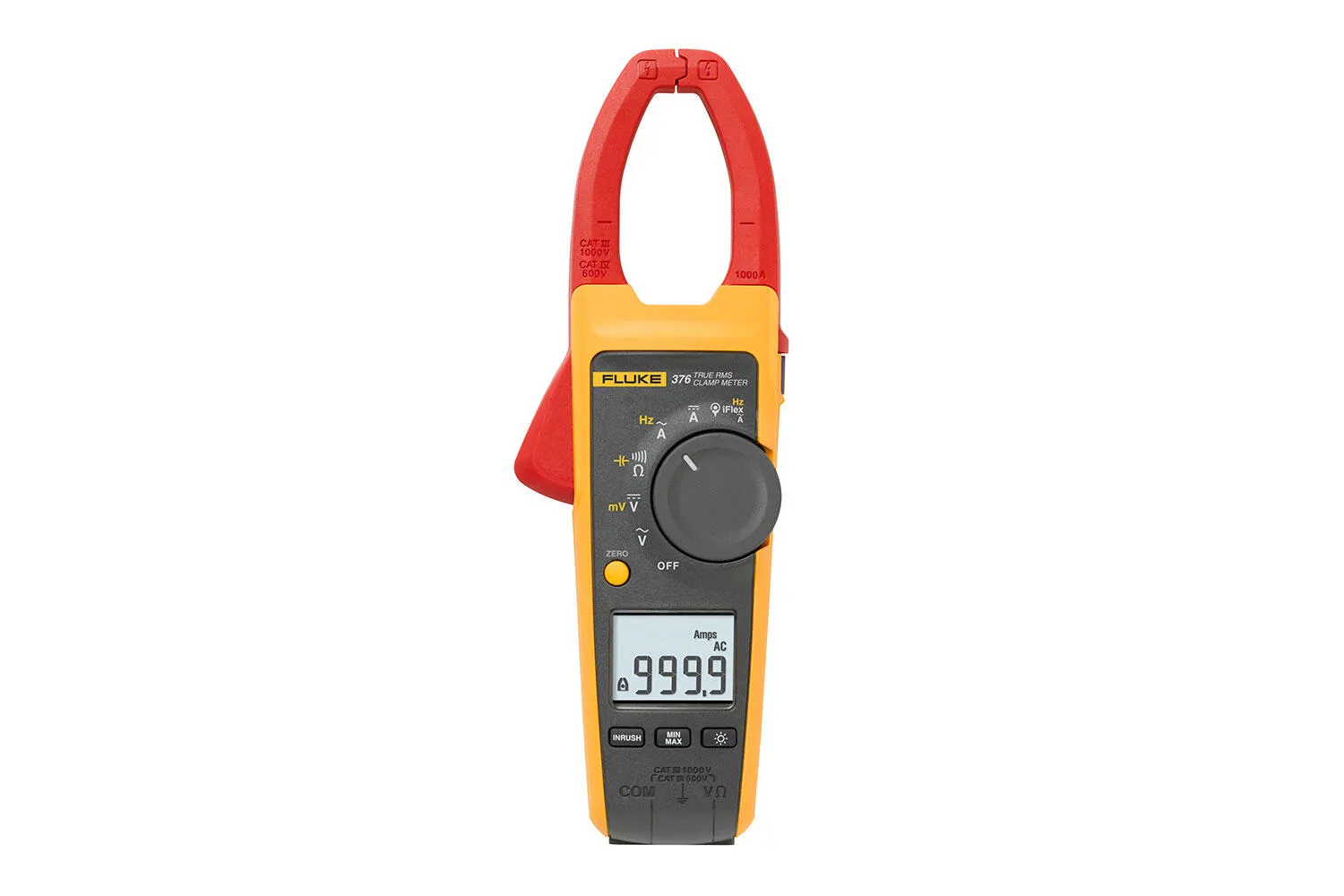

Fluke 376 FC True-RMS Clamp Meter with iFlex

The Fluke 376 FC Wireless True-RMS Clamp Meter offers measurements up to 1000V & 1000A, AC or DC, plus an included iFlex Flexible Current Clamp. Learn more

Manufacturer part number (MPN)

5065965

Brand

Fluke

Category

Tools

Range

999.9 A

Resolution

0.1 A

Accuracy

2% ±5 digits (10 Hz to 100 Hz)

Crest Factor (50 Hz/60 Hz)

3 @ 500 A

Crest Factor (50/60Hz)

3.0 at 1100 A

i2500-10 Flex

i2500-18 Flex

Distance from Optimum 0.5 in (12.7 mm)

1.4 in (35.6 mm)

Distance from Optimum 0.8 in (20.3 mm)

2.0 in (50.8 mm)

Distance from Optimum 1.4 in (35.6 mm)

2.5 in (63.5 mm)

Trigger level

5 Hz to 10 Hz, ≥10 A

Maximum voltage between any terminal and earth ground

1000 V

Batteries

2 AA, NEDA 15A, IEC LR6

Operating temperature

-10 °C to +50 °C

Storage temperature

-40 °C to +60 °C

Operating humidity - non-condensing (< 10°C)

≤90% RH (at 10 °C to 30 °C)

Operating altitude

2000 m

Storage altitude

12,000 m

Size (L x W x H)

249 x 85 x 45 mm

Weight

395 g

Jaw opening

34 mm

Flexible current probe diameter

7.5 mm

Safety

IEC 61010-1, Pollution Degree 2

IP rating

IEC 60529: IP30, non-operating

Radio Frequency Certification FCC ID

T68-FBLE IC:6627A-FBLE

International

IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2

Korea (KCC)

Class A Equipment (Industrial Broadcasting & Communication Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Temperature coefficients

Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C

HS Code

9030.33
