Fluke

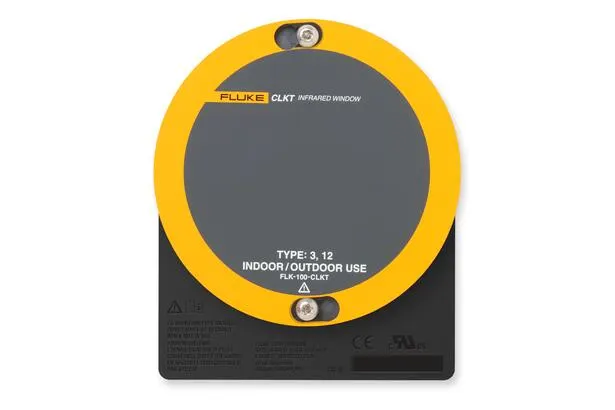

Fluke 100 CLKT IR Window for Outdoor and Indoor Applications
Part number3460439
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
With a Fluke infrared window there is no more need to power down or remove panel doors. Inspections are now conducted quickly and safer. Buy Online Now.
Technical Specifications
- Manufacturer part number (MPN)
- 3460439
- Brand
- Fluke
- Category
- Tools
- Crystal insert diameter
- 100 mm (3.94 in)
- Viewing aperture diameter
- 89 mm (3.5 in)
- Viewing aperture area
- 6322 mm2 (9.79 in2)
- Thickness
- 4 mm (0.16 in)
- ClirVu coating
- Yes
- Shortwave IR capable
- Yes
- Midwave IR capable
- Yes
- Longwave IR capable
- Yes
- Ultraviolet (UV) capable
- Yes
- Visual capable
- Yes
- Fusion capable
- Yes
- Canadian Standards Association (CSA) approval
- Yes
- Environmental
- Type 3/12
- ANSI C37.20.7
- 50 kA for 30 cycles @ 60 Hz
- EEMACS 14-1 Type-B
- 40 kA for 30 cycles @ 60 Hz
- IEC 62271
- 20 kA for 5 cycles @ 50 Hz
- Cyclic humidity withstand
- Yes
- Vibration withstand
- Yes
- Resistance of insulating materials to 100°
- Yes
- Resistance of insulating material to ball pressure (Brinell)
- Yes
- Glow-wire test 650°C
- Yes
- Up to 11 kV marine switchgear, indoor or outdoor
- Yes
- Maximum temperature Gaskets
- 250°C (482°F)
- Maximum temperature Body
- 659°C (1219°F)
- Maximum temperature Optic
- 1400°C (2552°F)
- Gaskets
- Low smoke and fume (LSF) compliant silicone
- IP rating
- IP65
- NEMA rating
- Type 3/12
- Vibration rating
- IEC60068-2-6
- Humidity rating
- IEC60068-2-3
- Pull-out strength
- Up to 630 kg (1388 lb)
- Warranty
- Lifetime replacement against manufacturing defects
- Country of Origin
- Singapore
