Fluke

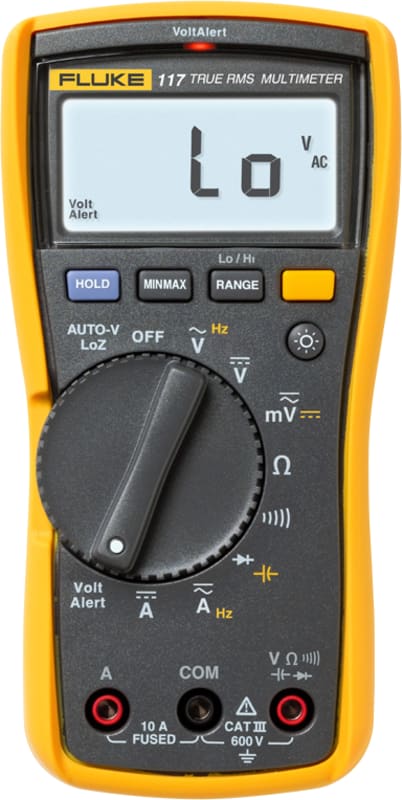

Fluke 117 True-RMS Digital Multimeter
Part numberFLUKE-117 EUREAN / GTIN0095969344852HS code9030.32
Sensors & Instrumentation
Meters & Analysers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact Fluke 117 true-RMS digital multimeter for electricians. Integrated non-contact voltage detector helps identify live circuits.
Technical Specifications
- Manufacturer part number (MPN)
- FLUKE-117 EUR
- EAN / GTIN
- 0095969344852
- Sales unit
- pcs
- Manufacturer model
- Fluke 117
- Safety
- IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
- Fuse for A input
- 11 A, 1000 V FAST Fuse (Fluke PN 803293)
- Display
- Digital: 6,000 counts, updates 4 per second
- Bar graph
- 33 segments, updates 32 per second
- Operating temperature
- -10°C to +50°C
- Storage temperature
- -40°C to +60°C
- Battery type
- 9 volt Alkaline, IEC 6LR61
- Battery life
- 400 hours typical, without backlight
- Accuracy
- ±([% of reading] + [counts]): 0.5% + 2
- Range/resolution
- 40.00 MΩ / 0.01 MΩ
- Lo-Z capacitance
- Range 1 nF to 500 μF
- Size
- 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
- Weight
- 550 g
- Current supply
- Battery
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Manual/automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Interface
- No
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Analogue bar graph display
- Yes
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.1 mV
- Lowest resolution, DC current
- 1000 µA
- Lowest resolution, AC voltage
- 0.1 mV
- Lowest resolution, resistance
- 0.1 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 600 V
- Max. voltage measuring range DC
- 600 V
- Max. current measuring range, AC
- 10 A
- Max. current measuring range, DC
- 10 A
- Max. resistance measuring range
- 40 MOhm
- Max. value storage
- Yes
- Multiple display
- No
- Measuring circuit category
- CAT III
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
Standards & Compliance
- HS Code
- 9030.32
Cross References
- EAN 0095969344852
- SAP 1000046335
- Code 8797296
Product Documentation
Document preview: Fluke 117 True-RMS Digital Multimeter (FLUKE-117 EUR) — Specification sheet
