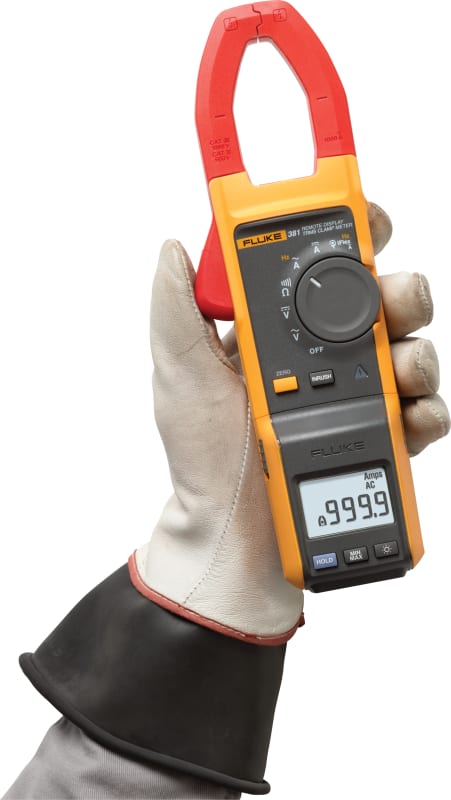

Fluke 381 TRUE RMS Clamp Meter

Fluke 381 true RMS current clamp with detachable shield.

Manufacturer part number (MPN)

5065875

EAN / GTIN

0095969537483

Sales unit

pcs

Manufacturer model

Fluke 381

Range

999.9 A

Resolution

0.1 A

Accuracy

2% ± 5 digits (10-100 Hz) 5% ± 5 digits (100-500 Hz)

Crest Factor (50/60 Hz)

3 @ 500 A 2.5 @ 600 A 1.42 @ 1000 A Add 2% for C.F. > 2

i2500-10 Flex

i2500-18 Flex Error

A

0.5 in (12.7 mm) 1.4 in (35.6 mm) ±0.5%

B

0.8 in (20.3 mm) 2.0 in (50.8 mm) ±1.0%

C

1.4 in (35.6 mm) 2.5 in (63.5 mm) ±2.0%

Trigger Level

5 – 10 Hz, ≥ 10 A 10 – 100 Hz, ≥ 5 A 100 – 500 Hz, ≥ 10 A

Size (L x W x H)

277 x 88 x 43 mm (55 mm for remote unit)

Weight

350 g

Jaw Opening

34 mm

Flexible Current Probe Diameter

7.5 mm

Operating Temperature

-10°C to +50°C

Storage Temperature

-40°C to +60°C

Type of current

AC/DC

Measured value memory

No

Indication

Digital

Measuring range selection

Automatic

Current measuring range, AC

0.1–2500 A

Current measuring range, DC

0.1–1000 A

Resistance measuring range

Yes

True RMS measurement

Yes

Continuity test

No

Interface

No

Capacitance measurement

No

Frequency measurement

Yes

Power measuring

No

Leakage current measuring

No

Measurement in cables with for- and back conductor

No

Version as adaptor to connect to multi meter

No

Harmonics measurement

No

Voltage measurement, AC

Yes

Voltage measurement, DC

Yes

Analogue bar graph display

No

Multiple display

No

Measuring circuit category

CAT IV

Temperature measurement

No

Max. voltage measuring circuit category

600 V

With display backlight

Yes

Country of origin

China

HS Code

9030.31
