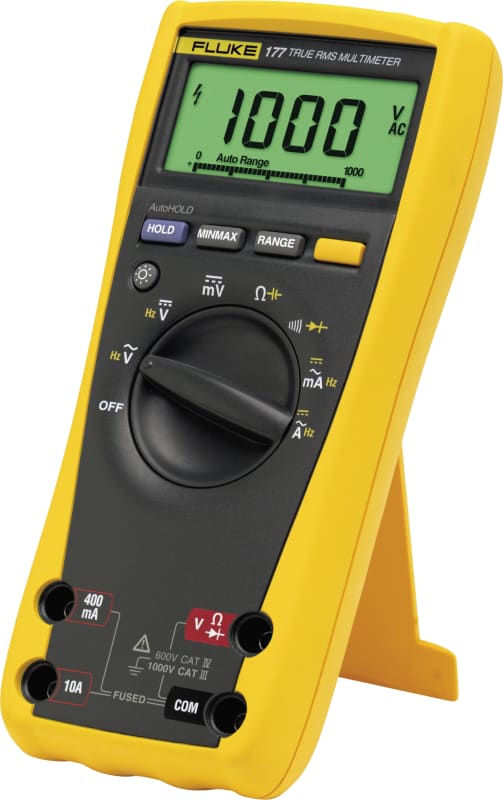

Fluke 177 MULTIMETER, TRUE RMS

Fluke 13240 Digital multimeter with true RMS.

Manufacturer part number (MPN)

13240

EAN / GTIN

0095969095884

Sales unit

pcs

Manufacturer model

Fluke 177

Voltage DC

Accuracy 1 ±(0.09% + 2)

Max. resolution

0.1 mV

Maximum

1000 V

Voltage AC

Accuracy 1 ±(1.0% + 3)

Current DC

Accuracy 1 ±(1.0% + 3)

Current AC

Accuracy 1 ±(1.5% + 3)

Resistance

Accuracy 1 ±(0.9% + 1)

Capacitance

Accuracy 1 ±(1.2% + 2)

Frequency

Accuracy 1 ±(0.1% + 1)

Operating temperature

-10°C to +50°C

Storage temperature

-30°C to +60°C

Humidity (without condensation)

0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C)

Overvoltage category

EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV

Agency approvals

UL, CSA, TÜV listed and VDE Pending

Size

43 x 90 x 185 mm

Current supply

Battery

Measured value memory

No

Indication

Digital

Measuring range selection

Manual/automatic

True RMS measurement

Yes

Continuity test

Yes

Interface

No

Capacitance measurement

Yes

Frequency measurement

Yes

With decibel measurement (dB)

No

Data hold

Yes

IR interface

No

Explosion-tested version

No

Analogue bar graph display

Yes

Bluetooth interface

No

Resistance test/diode test

Yes

Inductance measurement

No

Lowest resolution, DC voltage

0.1 mV

Lowest resolution, DC current

10 µA

Lowest resolution, AC voltage

0.1 mV

Lowest resolution, AC current

10 µA

Lowest resolution, resistance

0.1 Ohm

With conductivity measurement

No

Max. voltage measuring range AC

1000 V

Max. voltage measuring range DC

1000 V

Max. current measuring range, AC

10 A

Max. current measuring range, DC

10 A

Max. resistance measuring range

50 MOhm

Max. value storage

Yes

Multiple display

No

Measuring circuit category

CAT IV

Min. value storage

Yes

Nominal test voltage 100 V

No

Nominal test voltage 1000 V

No

HS Code

9030.32
