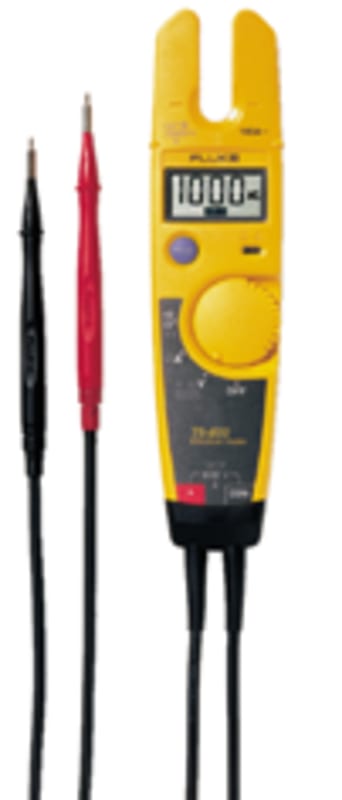

Fluke T5-600 Electrical Tester (13244)

Fluke 13244 voltage, continuity and current tester up to 600V AC/DC.

Manufacturer part number (MPN)

13244

EAN / GTIN

0095969059503

Sales unit

pcs

Manufacturer model

Fluke T5-600

Jaw opening

12.9 mm (0.5 in)

Max wire size

1/0 THHN Cable

AC response

Averaging

Voltage

AC 600V rms 1V Resolution Accuracy +/-(1.5% + 2 Counts)

Accuracy AC current (50/60 Hz)

3% ± 3 counts

Range & Accuracy

DC 600V 1V Resolution Accuracy +/-(1% + 1 Count)

AC Current (50/60Hz)

100.0A AC 0.1A Resolution Accuracy +/-(3% + 3 Digits)

DC

1% ± 1 count

Resistance (Ohms)

1000 Ohms 1 Ohm Resolution Accuracy +/-(1% + 2 Counts)

Continuity beeper threshold

On at 400 Ω

Volts indicator LED threshold

Guaranteed on by 30 V AC

Operating temperature

-10°C to 50°C

Storage temperature

-30°C to 60°C

Humidity (without condensation)

0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)

Dust/water resistance

Yes

Current supply

Battery

Measured value memory

No

Indication

Digital

Measuring range selection

Automatic

True RMS measurement

No

Continuity test

Yes

I

HS Code

9030.31

• EAN 0095969059503
• SAP 1000039323
• Code 8751853
