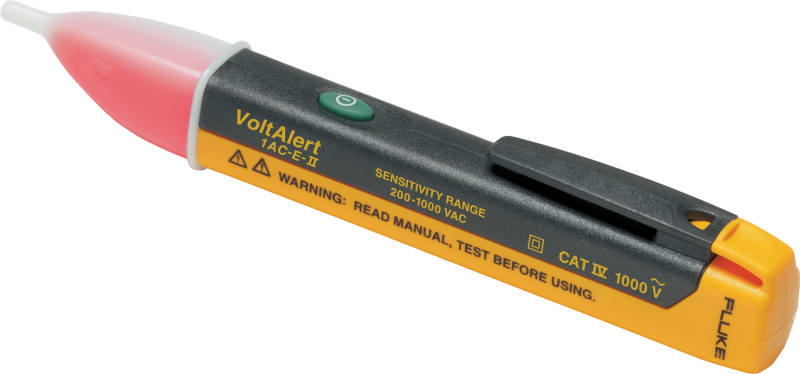

Fluke 1AC II Voltagesdetektor

Fluke 55797 Single voltage detector, if the tip is red, voltage is present. Internal self-test, battery test.

Manufacturer part number (MPN)

55797

EAN / GTIN

0095969290784

Sales unit

pcs

Package quantity

12 pcs

Manufacturer model

Fluke 1AC II

Voltage sensing ranges

Nominally, 90 V AC to 1000 V AC

Detector tip style

Flat-tip

Light source

One high intensity red LED

Safety

IEC 61010-1: Pollution Degree 2

IEC 61010-2-030

CAT IV 1000 V

EMC

IEC 61326-1: Portable

IP Rating

IP 40

Operating Temperature

-10°C to 50°C (-14°F to 122°F)

Operating Humidity Ranges

0% to 95% (0°C to 30°C)

Operating Altitude

3000 m

Cleaning

Clean with damp cloth

Batteries

2 AAA alkaline batteries included

Battery Life

Typical battery life of greater than 1 year

Warranty Period

Two years

Current supply

Battery

Continuity test

No

Length

152 mm

Blade length

9 mm

Blade width

4 mm

Voltage indication

LED

Internal base load

No

Single pole phase indication

Yes

Contactless voltage detection

Yes

Data hold

No

Background lighting LC-indication

No

Probe tip protection

No

Measuring point lightning

No

Voltage measuring range

90–1000 V

Indication of direction of field rotation

No

Load switchable

No

Measuring circuit category

CAT IV

Type of test

1-pole

Usable at precipitation

No

Country of origin

Malaysia

HS Code

9030.33

• EAN 0095969290784
• SAP 1000087492
• Code 8889055
