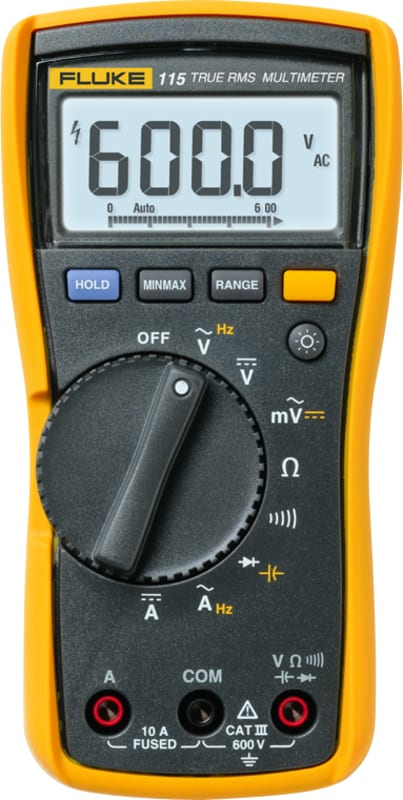

Fluke 115 MULTIMETER, TRUE RMS

Fluke 58002 Multimeter for field testing with true RMS.

Manufacturer part number (MPN)

58002

EAN / GTIN

0095969344814

Sales unit

pcs

Manufacturer model

Fluke 115

Accuracy

± ([% of reading] + [counts]): 0.5% + 2

Range/resolution

40.00 MΩ / 0.01 MΩ

Lo-Z capacitance

Range 1 nF to 500 μF

Safety

IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V

Display

Digital: 6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating temperature

-10℃ to + 50℃

Storage temperature

-40℃ to + 60℃

Battery type

9 volt Alkaline, IEC 6LR61

Battery life

400 hours typical, without backlight

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Current supply

Battery

Measured value memory

No

Indication

Digital

Measuring range selection

Manual/automatic

True RMS measurement

Yes

Continuity test

Yes

Interface

No

Capacitance measurement

Yes

Frequency measurement

Yes

With decibel measurement (dB)

No

Data hold

Yes

IR interface

No

Explosion-tested version

No

Analogue bar graph display

Yes

Bluetooth interface

No

Resistance test/diode test

Yes

Inductance measurement

No

Lowest resolution, DC voltage

0.1 mV

Lowest resolution, DC current

1000 µA

Lowest resolution, AC voltage

0.1 mV

Lowest resolution, resistance

0.1 Ohm

With conductivity measurement

No

Max. voltage measuring range AC

600 V

Max. voltage measuring range DC

600 V

Max. current measuring range, AC

10 A

Max. current measuring range, DC

10 A

Max. resistance measuring range

40 MOhm

Max. value storage

Yes

Multiple display

No

Measuring circuit category

CAT III

Min. value storage

Yes

Nominal test voltage 100 V

No

Nominal test voltage 1000 V

No

Nominal test voltage 250 V

No

Nominal test voltage 500 V

No

Relative value measurement

No

Peak value memory

No

Duty cycle measurements

No

Degree of protection (IP)

IP42

Temperature measurement

No

Max. capacitance measuring range

9999 µF

Lowest resolution, capacitance

0.001 µF

Max. frequency measuring range

50 kHz

Lowest resolution, frequency

0.01 Hz

Analogue bar graph display analogue/logarithmical

Yes

Temperature measurement RTD

No

Temperature measurement TC

No

Nominal test voltage 10 V

No

Nominal test voltage 50 V

No

Cable length measurement

No

Cable symmetry testing for two wire connections a-b-E

No

Power and energy measurement

No

Harmonics analysis/power quality

No

Rotational speed measuring

No

Automatic circuit breaker

No

Max. voltage measuring circuit category

600 V

With display backlight

Yes

Scaling bar graph linear

Yes

Scaling bar graph logarithmic

No

High voltage test for motor windings

No

Country of origin

China

HS Code

9030.32
