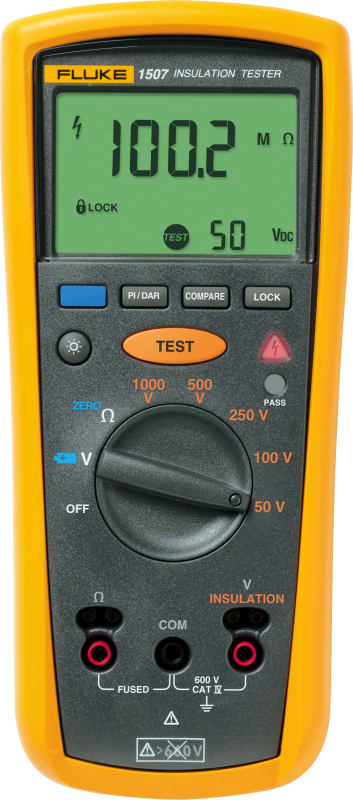

Fluke 1507 Insulation Tester

Fluke 55315 Insulation Tester with remote-control probe. Automatic calculation of pole index and dielectric absorption ratio. CAT IV - 600 volt approved.

Manufacturer part number (MPN)

55315

EAN / GTIN

0095969288675

Sales unit

pcs

Manufacturer model

Fluke 1507

Accuracy

Range 600.0 V

Resolution

0.1 V

50 Hz to 400 Hz ± (% of Rdg + Digits)

±(2% + 3)

Input impedance

3 MΩ (nominal), < 100 pF

Common mode rejection ratio (1 kΩ unbalanced)

: > 60 dB at DC, 50 or 60 Hz

Overload protection

600 V rms or DC

Range/Resolution

20.00 Ω 0.01 Ω

Open circuit test voltage

> 4.0 V, < 8 V

Short circuit current

> 200.0 mA

Measurement range

0.01 MΩ to 10 GΩ

Test voltage

50 V, 100 V, 250 V, 500 V, 1000 V

Test voltage accuracy

+ 20%, - 0%

Auto discharge

Discharge time < 0.5 second for C = 1 µF or less

Live circuit indicator

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum capacitive load

Operable with up to 1 µF load

Current supply

Battery

Measured value memory

No

Indication

Digital

Isolation resistance measuring range

0.01–10000 MOhm

Low resistance measurement

No

Interface

No

Data hold

Yes

Background lighting LC-indication

Yes

Overvoltage protector testing

Yes

Analogue bar graph display

No

Nominal test voltage 100 V

Yes

Nominal test voltage 1000 V

Yes

Nominal test voltage 250 V

Yes

Nominal test voltage 2500 V

No

Nominal test voltage 500 V

Yes

Nominal test voltage 5000 V

No

Nominal test voltage adjustable

No

Voltage measurement

Yes

Nominal test voltage adjustable with ramp function

No

External voltage detection at OFF-state

No

Nominal test voltage 10 kV

No

Nominal test voltage 15 kV

No

Country of origin

China

HS Code

9030.31
