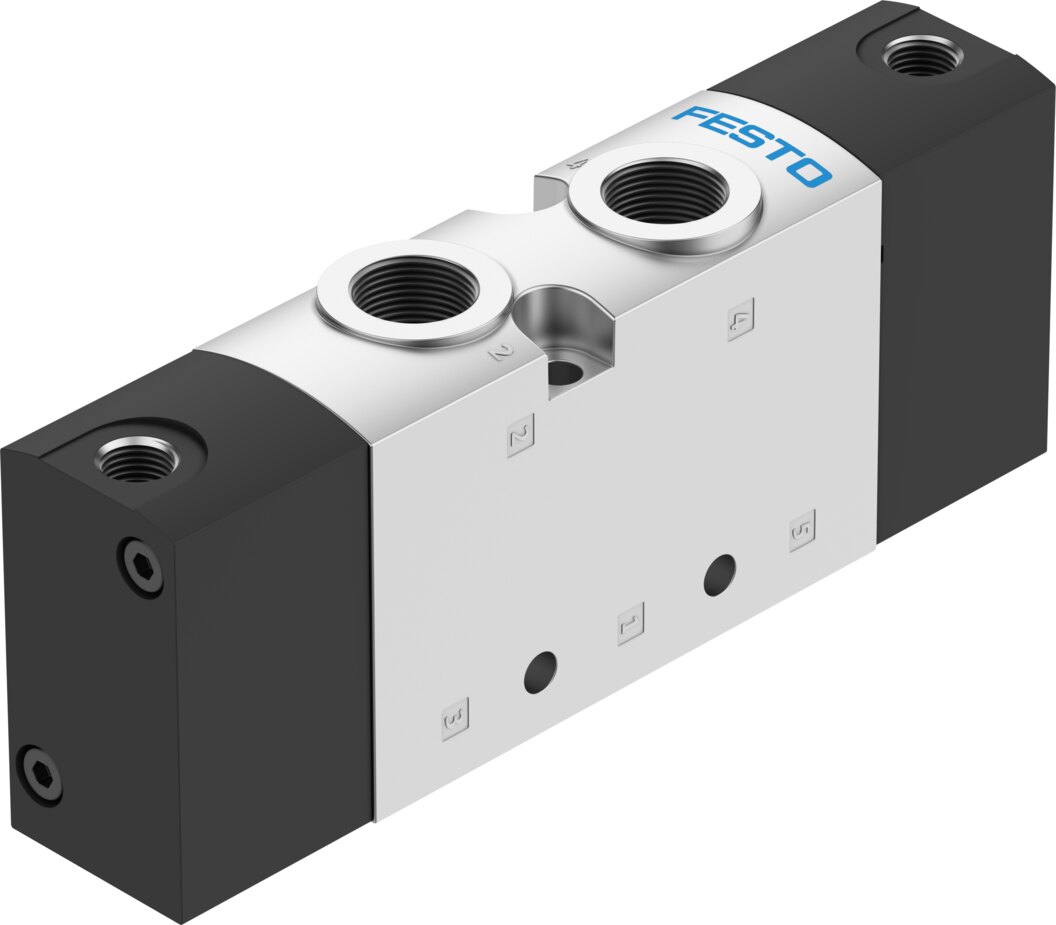

Festo VUWS-L30 Pneumatic valve - G3/8", Air, Spring, VUWS-L30-P53E-M-G38
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUWS-L30 Pneumatic valve. Pneumatic Valves Air-Controlled (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G3/8", activation Air, return Spring, supplier type designation VUWS-L30-P53E-M-G38. Supplied under manufacturer part number 575636, EAN 4052568261733, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/3 exhausted
- Type of actuation
- Pneumatic
- Valve size
- 31 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1700 l/min
- pneumatic working port
- G3/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Nominal size
- 8.1 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Pilot air supply
- Internal
- Flow direction
- Reversible
- Symbol
- 00991021
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Switching time off
- 98 ms
- Switching time on
- 19 ms
- Switching time reversal
- 41 ms
- Explosion protection
- The information in the certificate must be observed!; Zone 1 (ATEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 542 g
- Type of mounting
- On manifold rail; With through-hole
- Breather connection
- Not ducted
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- HNBR; NBR
- Material housing
- painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Nickel-plated steel
- EAN / GTIN
- 4052568261733
- Festo type code
- VUWS-L30-P53E-M-G38
- Festo order number
- 575636
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 11.0956 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 575636
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568261733
- MPN 575636
Product Documentation
More from Festo
Festo
Festo VUVG-B10A Solenoid Valve - El, Spring, VUVG-B10A-P53E-ZT-F-1P3
566451
Festo
Festo QSML Elbow connector push-in composite - 4mm, 4mm, QSML-4
153344
Festo
Festo ADNGF Compact cylinder - 50mm, G1/8, 25mm, ADNGF-50-25-PPS-A
574043
Festo
Festo PUN-H Compressed Air Hose polyurethane black - 8mm, 5.7mm, 50M, PUN-H-8X1,25-Sw
197392
Festo
Festo QS Straight connection push-in composite - 6mm, 6mm, QS-6-100
130687
Festo

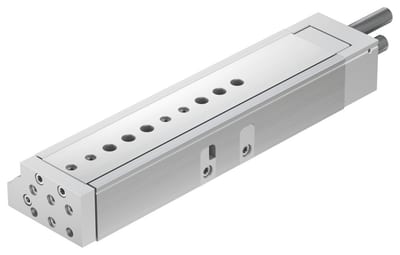

Festo DGSL Mini Slide - G1/8, DGSL-25-150-P1A
544046
Festo

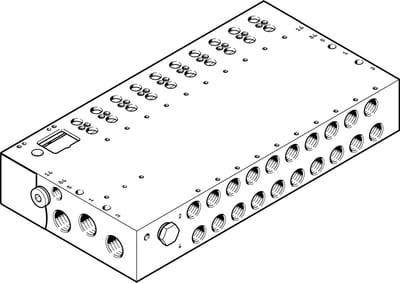

Festo VABM-L1 Connection strip - 3/8", VABM-L1-18W-G38-20-M-G
8004925
Festo

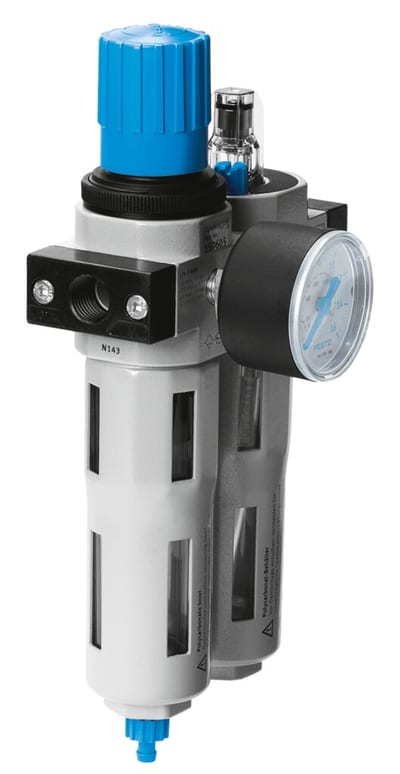

Festo FRC Service Unit Midi automatic - 3/8", 0,5 - 7bar, 40MY, FRC-3/8-D-7-MIDI-A
