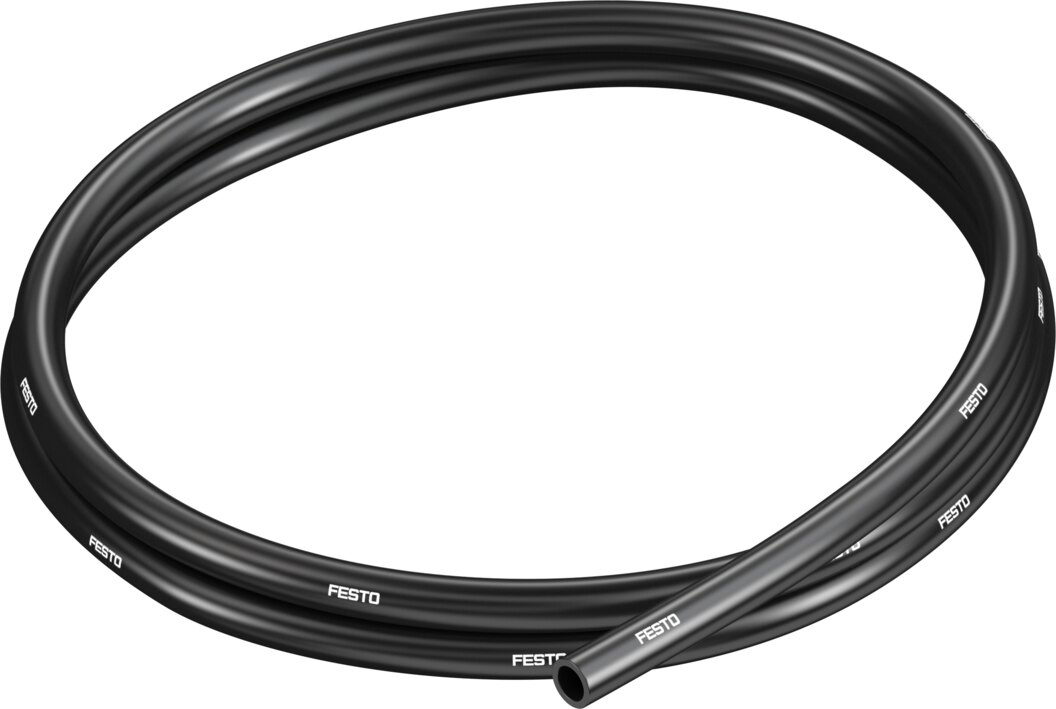

Festo PUN-H Compressed Air Hose polyurethane black - 8mm, 5.7mm, 50M, PUN-H-8X1,25-Sw

Festo PUN-H Compressed Air Hose polyurethane black. Pneumatic hoses (Technique / Pneumatics). Principal data: outer diameter 8 mm, inner diameter 5.7 mm, roll size 50 m, supplier type designation PUN-H-8X1.25-SW. Supplied under manufacturer part number 197392, EAN 4052568045210, HS code 3917.32, country of origin Czechia.

Outside diameter

8 mm

Flow-relevant bending radius

37 mm

Inside diameter

5.7 mm

Min. bending radius

21 mm

Instructions on use

TPE-U, ether-based

Tubing characteristics

Suitable for energy chains

Operating pressure complete temperature range

-0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)

Temperature-dependent operating pressure

-0.095 ... 1 MPa (-0.95 ... 10 bar) (-13.775 ... 145 psi)

Note on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C

Approval

German Technical Control Board (TÜV)

Certificate issuing authority

B 013277 0527 00

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)

Fire test material

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14

Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with food

See supplementary material information

Ambient temperature

-35 ... 60 °C

Product weight according to length

0.0287 kg/m

Pneumatic connection

For push-in connector O.D. 8 mm; For push-in connector outside diameter of 5/16"; For barbed fitting inside diameter of 6 mm with union nut

Colour

Black

Shore hardness

D 52 +/-3

Material tubing

TPE-U(PU)

EAN / GTIN

4052568045210

Festo type code

PUN-H-8X1,25-SW

Festo order number

197392

Product type

Pneumatic hoses

Product group

Pneumatics

Roll size

50 m

Temperature max

60 °C

Pressure max

10 bar

Temperature min

-35 °C

Type

Shore D 52 +/-3

Sales unit

Roll

Carbon footprint (EPD)

0.2118 kg CO2e per M

Country of origin

Czechia

Customs tariff code (EU CN)

39173200

HS code

3917.32

Manufacturer part number

197392

HS Code

3917.32

• EAN 4052568045210
• MPN 197392
