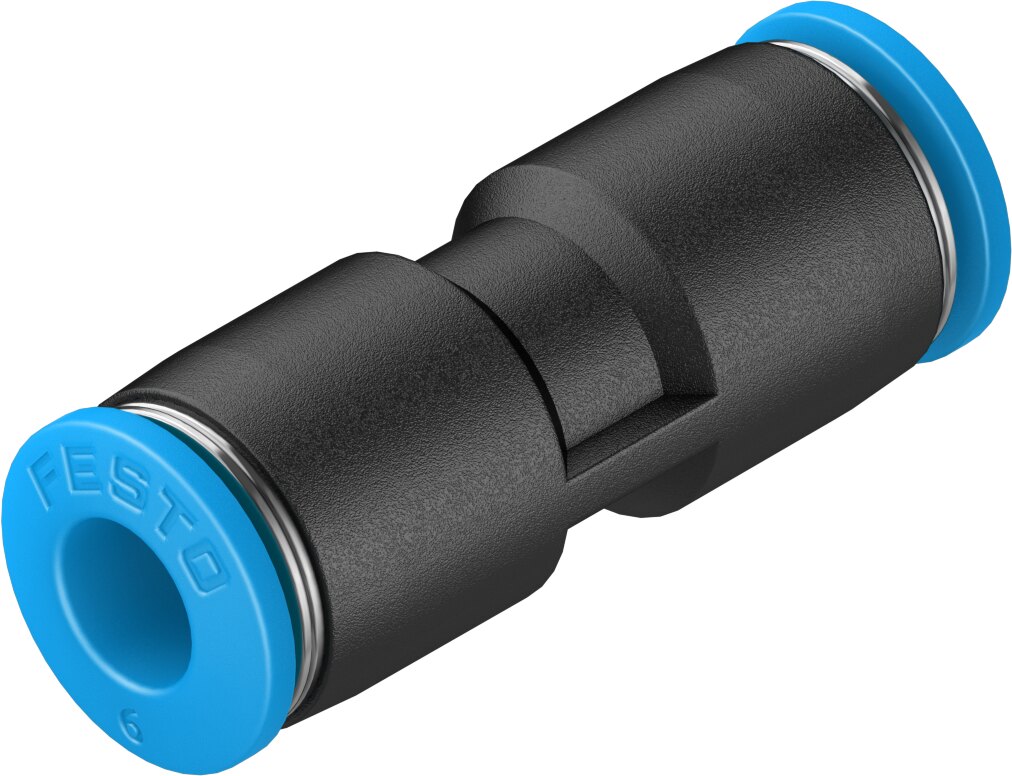

Festo QS Straight connection push-in composite - 6mm, 6mm, QS-6-100
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QS Straight connection push-in composite. Collectors C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 6 mm, outer hose diameter 2 6 mm, supplier type designation QS-6-100. Supplied under manufacturer part number 130687, EAN 4052568024086, HS code 3917.40, country of origin Japan.
Technical Specifications
- Size
- Standard
- Nominal size
- 4.3 mm
- Tubing insertion depth
- 17 mm
- Mounting position
- Any
- Design
- Straight design (Push-pull principle)
- Size of pack
- 100
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at max. 50°C
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 ... 80 °C
- Product weight
- 6.5 g
- Pneumatic connection, port 1
- For tubing outside diameter of 6 mm
- Pneumatic connection, port 2
- For tubing outside diameter of 6 mm
- Colour of release ring
- Blue
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- EAN / GTIN
- 4052568024086
- Festo type code
- QS-6-100
- Festo order number
- 130687
- Product type
- Collectors C
- Product group
- Pneumatics
- Outer hose diameter
- 6 mm
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0409 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 39174000
- HS code
- 3917.40
- Manufacturer part number
- 130687
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4052568024086
- MPN 130687
More from Festo
Festo
Festo DGSL Mini Slide - G1/8, DGSL-25-150-P1A
544046
Festo
Festo VABM-L1 Connection strip - 3/8", VABM-L1-18W-G38-20-M-G
8004925
Festo
Festo FRC Service Unit Midi automatic - 3/8", 0,5 - 7bar, 40MY, FRC-3/8-D-7-MIDI-A
162765
Festo

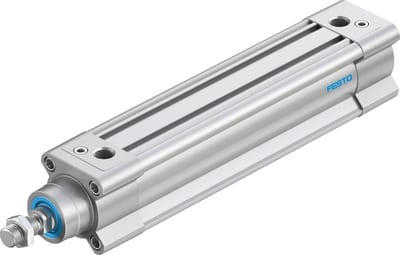

Festo DSBC Standard cylinder double-acting aluminium - 150mm, 40mm, DSBC-40-150-PPVA-N3
2123226
Festo

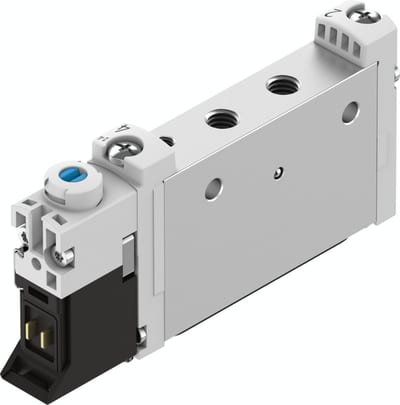

Festo VUVG-L10 Solenoid Valve - M5", El, Spring, VUVG-L10-M52-MZT-M5-1P3
574355
Festo

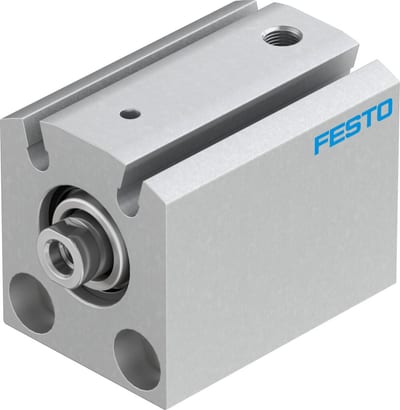

Festo AEVC Short stroke cylinder - 16mm, M5, 10mm, AEVC-16-10-I-P-A
