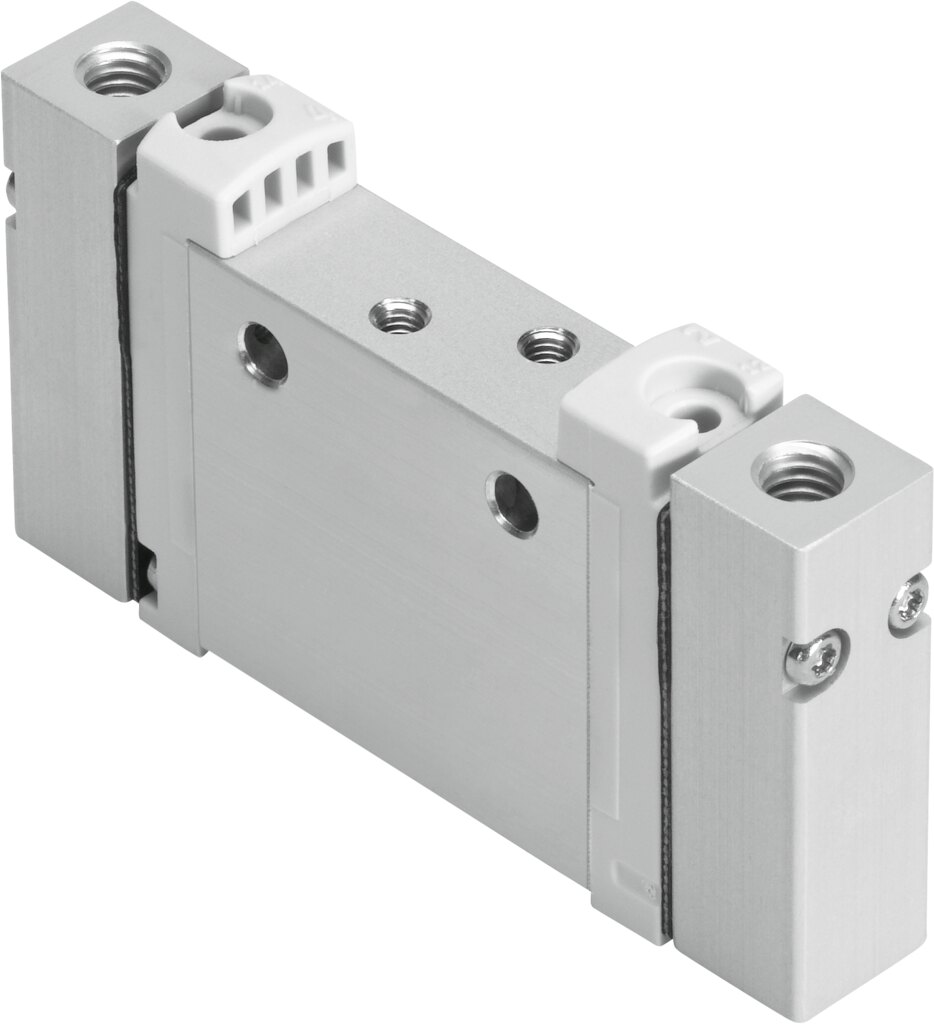

Festo VUWG-L10 Pneumatic valve - M3", Air, Spring, VUWG-L10A-P53U-M3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUWG-L10 Pneumatic valve. Pneumatic Valves Air-Controlled (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread M3", activation Air, return Spring, supplier type designation VUWG-L10A-P53U-M3. Supplied under manufacturer part number 573799, EAN 4052568221034, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Pneumatic
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 90 l/min
- pneumatic working port
- M3
- Operating pressure
- -0.9 ... 10 bar
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Grid dimension
- 10.5 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00991022
- lap
- Indeterminate overlap
- Pilot pressure
- 3 ... 10 bar
- Suitability for vacuum
- Yes
- Switching time off
- 19 ms
- Switching time on
- 7 ms
- Switching time reversal
- 9 ms
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 40 g
- Type of mounting
- On PR rail; With through-hole
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- M3
- Pneumatic connection, port 2
- M3
- Pneumatic connection, port 3
- M3
- Pneumatic connection, port 4
- M3
- Pneumatic connection, port 5
- M3
- Material seals
- HNBR; NBR
- Material housing
- anodised
- EAN / GTIN
- 4052568221034
- Festo type code
- VUWG-L10A-P53U-M3
- Festo order number
- 573799
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- M3"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 0.8176 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 573799
