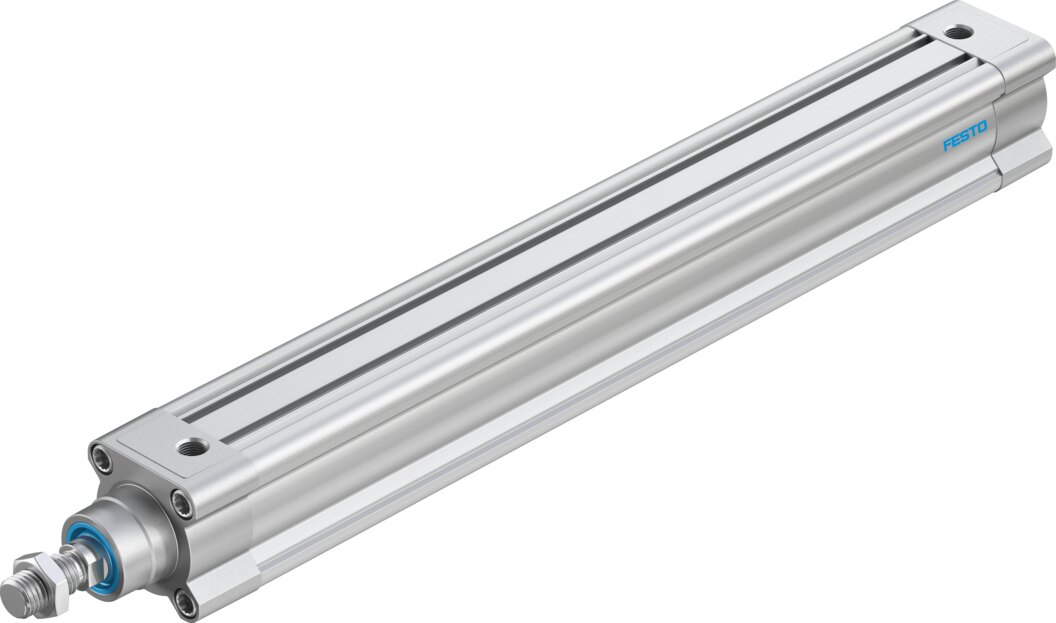

Festo DSBC Standard cylinder double-acting aluminium - 400mm, 50mm, DSBC-50-400-PPVA-N3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSBC Standard cylinder double-acting aluminium. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: stroke rate 400 mm, diameter 50 mm, supplier type designation DSBC-50-400-PPVA-N3. Supplied under manufacturer part number 1366958, EAN 4052568016531, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 400 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 ... 1.2 MPa (0.4 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1 J
- Cushioning length
- 22 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 990 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 1178 N
- Moving mass
- 1365 g
- Moving mass for 0 mm stroke
- 365 g
- Additional moving mass per 10 mm stroke
- 25 g
- Product weight
- 3430 g
- Basic weight for 0 mm stroke
- 1190 g
- Additional weight per 10 mm stroke
- 56 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G1/4
- Material cover
- Coated die-cast aluminium
- Material piston seal
- TPE-U(PU)
- Material piston
- Wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material piston rod wiper
- TPE-U(PU)
- Buffer seal material
- TPE-U(PU)
- Material of cushioning boss
- POM
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Material nut
- Galvanised steel
- Material bearing
- POM
- Material collar screws
- Galvanised steel
- EAN / GTIN
- 4052568016531
- Festo type code
- DSBC-50-400-PPVA-N3
- Festo order number
- 1366958
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Port Size
- 1/4"
- Carbon footprint (EPD)
- 61.7252 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 1366958
