Festo VUVS-L30-P53C-MD-G38-F8-1C1 Solenoid valve
Part number575618EAN / GTIN4052568261559HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L30-P53C-MD-G38-F8-1C1 — Solenoid valve, universal directional control valves. valve function 5/3-way, closed; operating pressure 0.25. 1 MPa (2.5. 10 bar); nominal size 8.9 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575618
- Type code
- VUVS-L30-P53C-MD-G38-F8-1C1
- EAN / GTIN
- 4052568261559
- Product category
- Universal directional control valves
- Valve function
- 5/3-way, closed
- Type of actuation
- Electrical
- Valve size
- 31 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2000 l/min
- pneumatic working port
- G3/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 8.9 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991033
- lap
- Overlap
- b value
- 0.4
- C value
- 8.9 l/sbar
- Switching time off
- 76 ms
- Switching time on
- 17 ms
- Switching time reversal
- 39 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse with 1 signal
- 3600 µs
- Characteristic coil data
- 24 V DC: 3.3 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 562 g
- Electrical connection
- Type C, To EN 175301-803
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- HNBR, NBR
- Material housing
- Die-cast aluminium, painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Nickel-plated steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Return
- Spring
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 11.8035 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568261559
- MPN 575618
Product Documentation
Document preview: VUVS-L30-P53C-MD-G38-F8-1C1 — Festo product documentation
More from Festo
Festo
Festo FRC-1/8-D-MINI-KF-A Service unit combination
185840
Festo

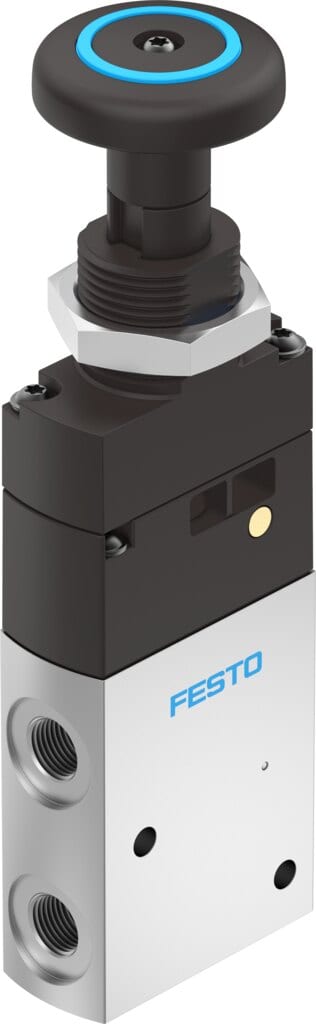

Festo VHEF-PTC-M32-M-G18 Pushbutton valve
5299705
Festo

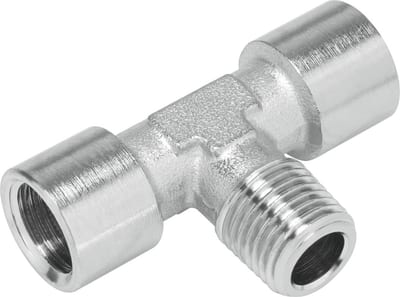

Festo NPFC-T-R12-2G12-MFF T-fitting
