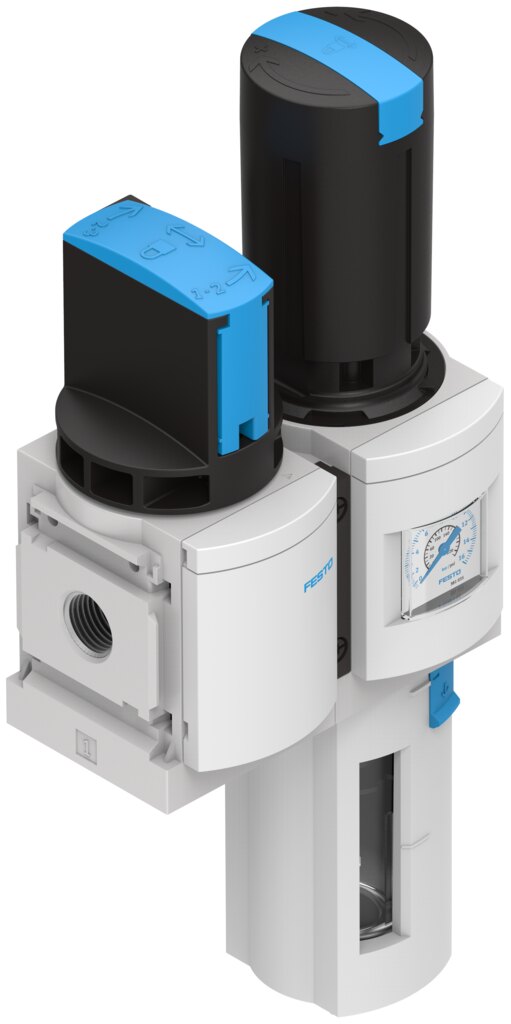

Festo MSB6-1/2:C3:J1-WP Service unit combination

Festo MSB6-1/2:C3:J1-WP — Service unit combination, ms series. operating pressure 0.8. 18 bar.

Manufacturer part number (MPN)

8025355

Type code

MSB6-1/2:C3:J1-WP

EAN / GTIN

4052568258580

Product category

MS series

Size

6

Series

MS

Actuator lock

Rotary knob with detent, can be closed with accessories

Mounting position

Vertical +/-5°

Grade of filtration

40 µm

Condensate drain

Manual, rotating

Design

On/off valve, Filter regulator with pressure gauge

Controller function

Output pressure constant, with primary pressure compensation, with secondary exhausting, with return flow function

Bowl guard

Plastic bowl guard

Symbol

00991755

Pressure gauge (ANALOG) or Pressure display (DIGITAL)

With pressure gauge

Operating pressure

0.8 ... 18 bar

Pressure regulation range

0.5 ... 12 bar

Standard nominal flow rate (standardised to DIN 1343)

5100 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Storage temperature

-10 ... 60 °C

Suitable for use with food

See supplementary material information

Air purity class at output

Compressed air to ISO 8573-1:2010 [7:4:4]

Media temperature

-10 ... 60 °C

Ambient temperature

-10 ... 60 °C

Product weight

1100 g

Type of mounting

With accessories

Pneumatic connection, port 1

G1/2

Pneumatic connection, port 2

G1/2

Pneumatic connection, port 3

G1/2

Material housing

Die-cast aluminium

Material bowl

Makrolon®

Product type

Air treatment

Product group

Pneumatics

Thread

1/2"

Filter element

40 My

Temperature min

-10 °C

Temperature max

60 °C

Carbon footprint (EPD)

33.6151 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84811005

HS code

8481.10

HS Code

8481.10
