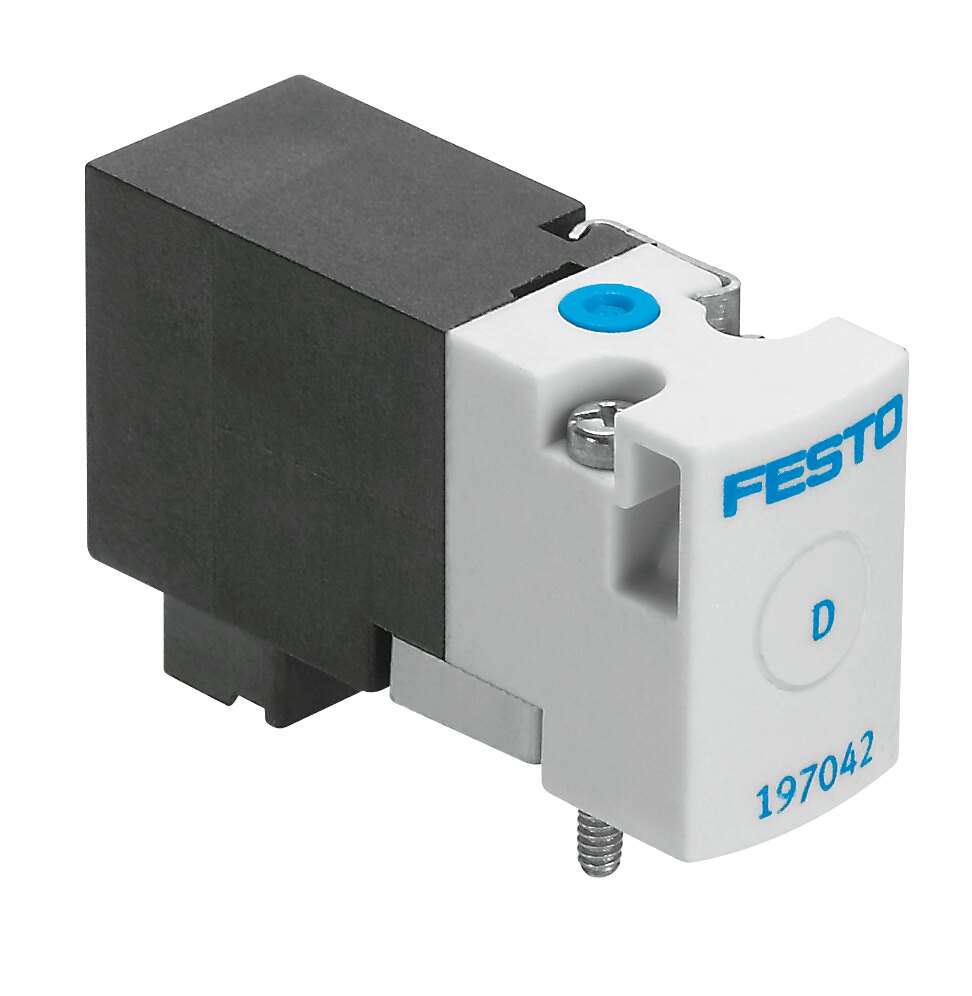

Festo MHA1-M5H-2/2G-0,9-Pi Solenoid valve

Festo MHA1-M5H-2/2G-0,9-PI — Solenoid valve, application-specific directional control valves. valve function 2/2-way, single solenoid, closed; operating pressure -0.09. 0.2 MPa (-0.9. 2 bar; -13.05. 29 psi); nominal size 0.9 mm.

Manufacturer part number (MPN)

197043

Type code

MHA1-M5H-2/2G-0,9-PI

EAN / GTIN

4052568081690

Product category

Application-specific directional control valves

Valve function

2/2-way, single solenoid, closed

Type of actuation

Electrical

Construction width

10 mm

Standard nominal flow rate (standardised to DIN 1343)

14 l/min

pneumatic working port

Sub-base

Operating voltage

12 V DC

Operating pressure

-0.09 ... 0.2 MPa (-0.9 ... 2 bar; -13.05 ... 29 psi)

Design

Poppet valve with spring return

Type of reset

Mechanical spring

Degree of protection

IP40

Approval

c UL us - Recognised (Oil)

Certificate issuing authority

UL MH19482

Nominal size

0.9 mm

Grid dimension

10 mm

Exhaust-air function

Cannot be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Non-detenting

Type of piloting

Direct

Flow direction

Non-reversible

Symbol

00991398

Valve position code

Label

lap

Underlap

Suitability for vacuum

Yes

Max. switching frequency

20 Hz

Switching time off

5 ms

Switching time on

4 ms

Duty cycle

100%

Electrical power consumption

1 W

Characteristic coil data

12 V DC: 1.0 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B2-L

Storage temperature

-20 ... 60 °C

Media temperature

-5 ... 40 °C

Ambient temperature

-5 ... 40 °C

Product weight

10 g

Electrical connection

Plug

Type of mounting

On sub-base, with through-hole

Pneumatic connection, port 1

Sub-base

Pneumatic connection, port 2

Sub-base

Material seals

Fluoro rubber, HNBR, NBR

Material housing

Reinforced PPS

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Activation

El

Return

Spring

Carbon footprint (EPD)

0.2104 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568081690
• MPN 197043
