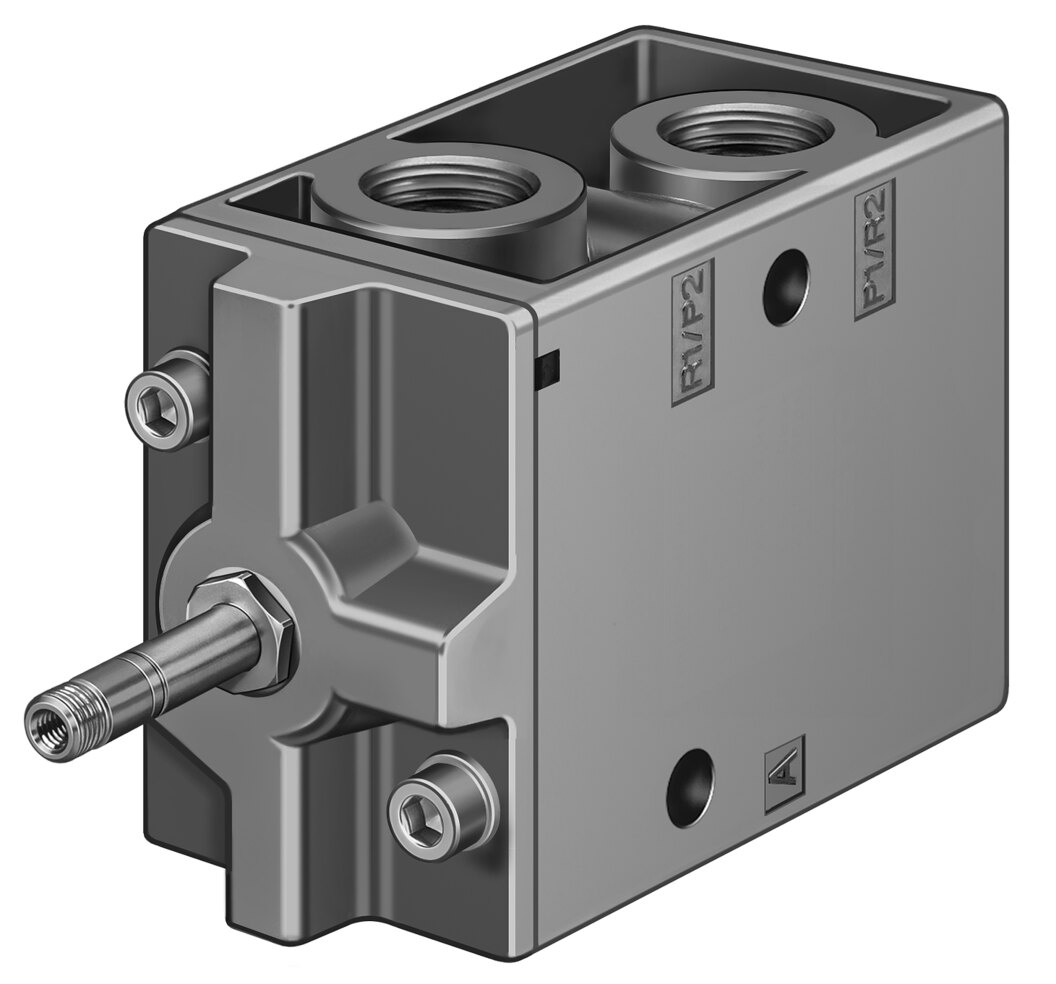

Festo MFH-3-3/4 Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-3-3/4 — Solenoid valve, universal directional control valves. valve function 3/2-way, single solenoid, closed; operating pressure 0.2. 0.8 MPa (2. 8 bar); nominal size 19 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 11967
- Type code
- MFH-3-3/4
- EAN / GTIN
- 4052568111946
- Product category
- Universal directional control valves
- Valve function
- 3/2-way, single solenoid, closed
- Type of actuation
- Electrical
- Construction width
- 68 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 7500 l/min
- pneumatic working port
- G3/4
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0.2 ... 0.8 MPa (2 ... 8 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65
- Nominal size
- 19 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991008
- lap
- Underlap
- Switching time off
- 32 ms
- Switching time on
- 36 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 1260 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On manifold rail, with through-hole
- Pilot exhaust port 82
- M5
- Pneumatic connection, port 1
- G3/4
- Pneumatic connection, port 2
- G3/4
- Pneumatic connection, port 3
- G3/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/4"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 25.9780 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568111946
- MPN 11967
Product Documentation
More from Festo
Festo
Festo MHA1-M5H-2/2G-0,9-Pi Solenoid valve
197043
Festo

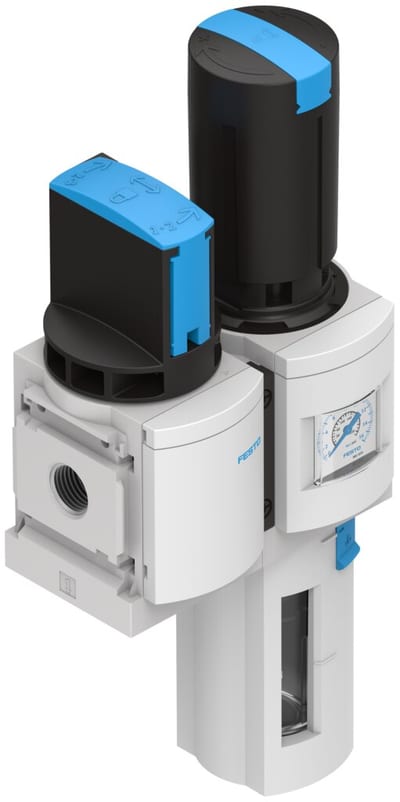

Festo MSB6-1/2:C3:J1-WP Service unit combination
8025355
Festo
Festo DFM-16-100-B-PPV-A-GF Guided drive
604968
Festo

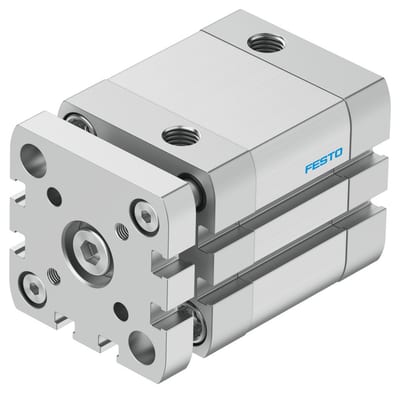

Festo ADNGF-40-20-P-A Compact cylinder
554251
Festo

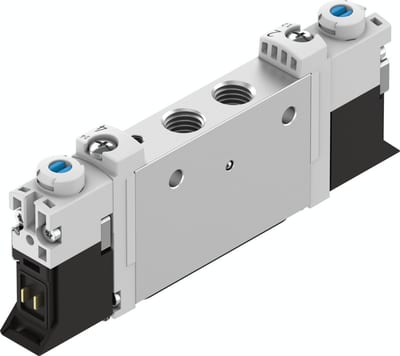

Festo VUVG-L10-P53U-T-M7-1P3 Solenoid valve
566478
Festo

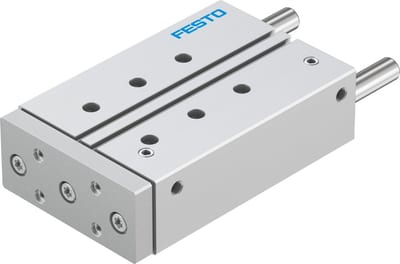

Festo DFM-40-125-P-A-KF Guided drive
170943
Festo
Festo CRSGS-M6 Rod eye
195580
Festo

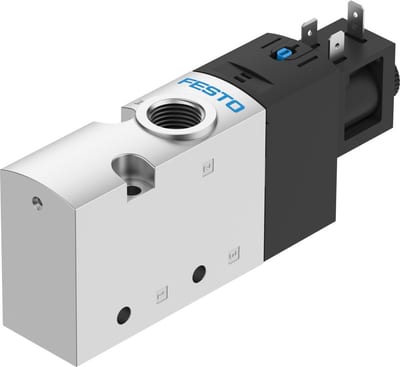

Festo VUVS-L30-M32U-MD-G38-F8-1B2 Solenoid valve
