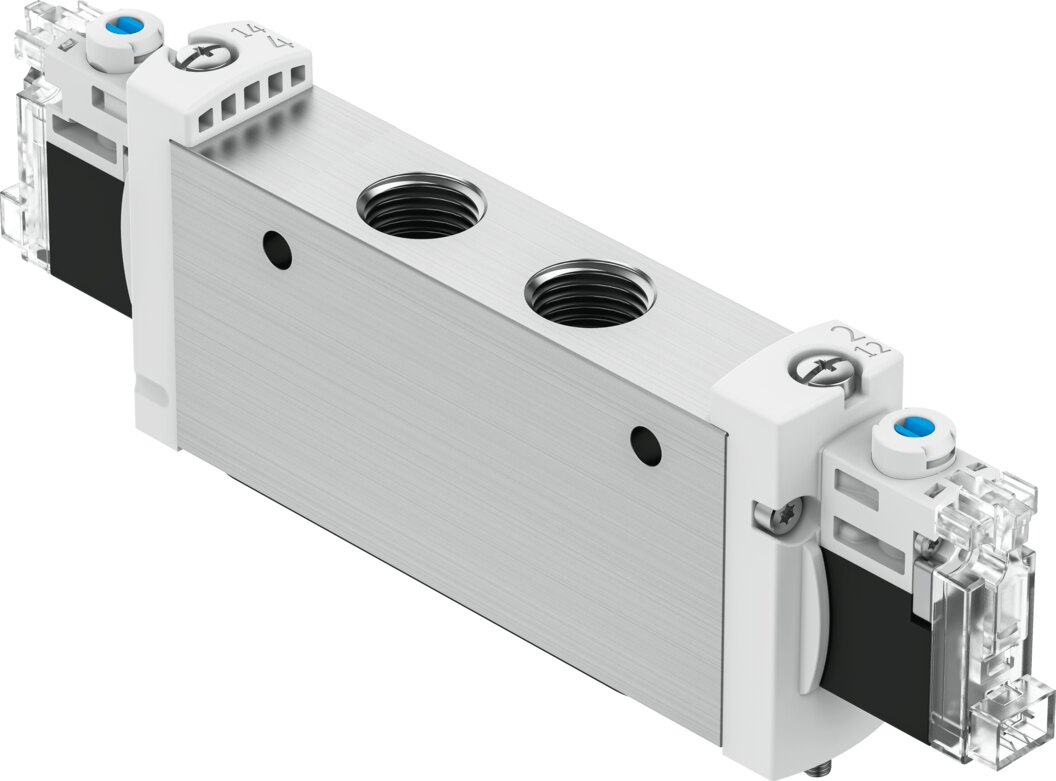

Festo VUVG-L18-T32C-MT-G14-1H2L-F1A Solenoid valve

Festo VUVG-L18-T32C-MT-G14-1H2L-F1A — Solenoid valve, universal directional control valves. valve function 2x3/2 closed monostable; operating pressure 0.3. 0.8 MPa (3. 8 bar); nominal size 5.7 mm.

Manufacturer part number (MPN)

8172830 Type code: VUVG-L18-T32C-MT-G14-1H2L-F1A EAN / GTIN: 4052568617820 Product category: Universal directional control valves Valve function: 2x3/2 closed monostable Type of actuation: Electrical Valve size: 18 mm Standard nominal flow rate (standardised to DIN 1343): 870 l/min pneumatic working port: G1/4 Operating voltage: 24 V DC Operating pressure: 0.3 ... 0.8 MPa (3 ... 8 bar) Design: Piston gate valve Type of reset: Mechanical spring Approval: RCM, c UL us - Recognised (Oil) Certificate issuing authority: UL MH19482 Degree of protection: IP40 Nominal size: 5.7 mm Exhaust-air function: Can be throttled Sealing principle: Soft Mounting position: Any Manual override: Detenting, Non-detenting, Concealed Type of piloting: Piloted Pilot air supply: Internal Symbol: 00995242 lap: Overlap Pilot pressure: 0.3 ... 0.8 MPa (3 ... 8 bar) Suitability for vacuum: No Switching time off: 29 ms Switching time on: 20 ms Duty cycle: 100% Max. positive test pulse with 0 signal: 700 µs Max. negative test pulse with 1 signal: 900 µs Characteristic coil data: 24 V DC: 0.8 W Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Restrictions for environmental and media temperature: -5 - 50 °C, Without holding current reduction Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC: 0 - No corrosion stress LABS (PWIS) conformity: VDMA24364 zone III Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a) Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1 Storage temperature: -20 ... 60 °C Media temperature: -5 ... 50 °C Ambient temperature: -5 ... 50 °C Product weight: 164 g Electrical connection: Plug Type of mounting: On manifold rail, With through-hole Pneumatic connection, port 1: G1/4 Pneumatic connection, port 2: G1/4 Pneumatic connection, port 3: G1/4 Pneumatic connection, port 4: G1/4 Pneumatic connection, port 5: G1/4 material seals: HNBR, NBR material housing: Wrought aluminium alloy material screws: Coated steel Product type: Pneumatic solenoid valves Product group: Pneumatics Thread: G1/4" Activation: El Return: mechanical spring Carbon footprint (EPD): 3.2534 kg CO2e per pcs Country of origin: China Customs tariff code (EU CN): 84812090 HS code: 8481.20

HS Code

8481.20

• EAN 4052568617820
• MPN 8172830
