Festo ADVU-100-25-A-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVU-100-25-A-P-A — Compact cylinder, pneumatic cylinders. stroke 25 mm; piston diameter 100 mm; operating pressure 0.06. 1 MPa (0.6. 10 bar; 8.7. 145 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 156666
- Type code
- ADVU-100-25-A-P-A
- EAN / GTIN
- 4052568119195
- Product category
- Pneumatic cylinders
- Stroke
- 25 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar; 8.7 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 4418 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 4712 N
- Moving mass for 0 mm stroke
- 614 g
- Additional moving mass per 10 mm stroke
- 38 g
- Basic weight for 0 mm stroke
- 2797 g
- Additional weight per 10 mm stroke
- 177 g
- Type of mounting
- With through-hole, with accessories
- Pneumatic connection
- G1/4
- Material collar screws
- Galvanised steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/4
- Carbon footprint (EPD)
- 63.8655 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568119195
- MPN 156666
Product Documentation
More from Festo
Festo
Festo VABM-B10-25-G12-4-P53-E Common supply manifold
8026239
Festo
Festo FUA-20 Flange mounting
157300
Festo
Festo ADN-40-50-I-PPS-A Compact cylinder
572670
Festo
Festo VUVG-B18-M52-RZT-F-1R8L Solenoid valve
8031543
Festo
Festo ADN-80-30-A-PPS-A Compact cylinder
572731
Festo

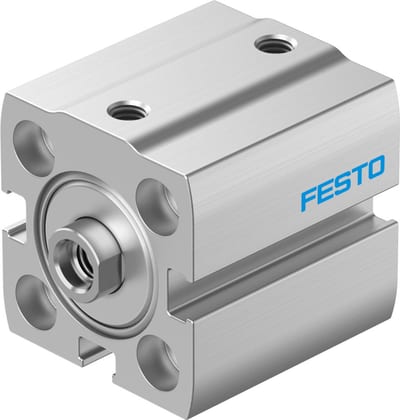

Festo ADN-S-20-10-I-P Compact cylinder
