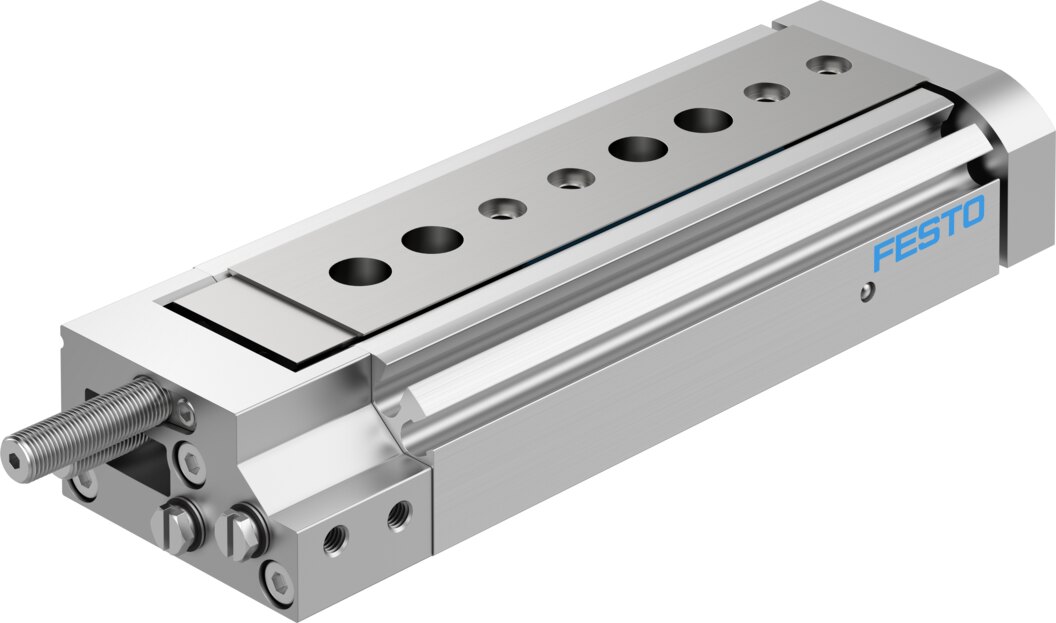

Festo DGSL-6-40-PA Mini slide
Part number543919EAN / GTIN4052568182649HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-6-40-PA — Mini slide, drives with slides. stroke 40 mm; piston diameter 8 mm; operating pressure 0.15. 0.8 MPa (1.5. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 543919
- Type code
- DGSL-6-40-PA
- EAN / GTIN
- 4052568182649
- Product category
- Drives with slides
- Stroke
- 40 mm
- Adjustable end position range/length front
- 30.5 mm
- Adjustable end position range/length rear
- 15 mm
- Piston diameter
- 8 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. speed
- 0.5 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.05 J
- Cushioning length
- 1.5 mm
- Max. force Fy
- 677 N
- Max. force Fz
- 677 N
- Max. moment Mx
- 8 Nm
- Max. moment My
- 5.5 Nm
- Max. moment Mz
- 5.5 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 23 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 30 N
- Moving mass
- 90 g
- Product weight
- 222 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 4.8793 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568182649
- MPN 543919
Product Documentation
Document preview: DGSL-6-40-PA — Festo product documentation
More from Festo
Festo
Festo DZF-18-10-P-A Flat cylinder
164015
Festo
Festo VABM-B10-20-G38-5-P53 Common supply manifold
576366
Festo
Festo VABM-L1-18S-G38-10 Manifold rail
574463
Festo
Festo ADVU-100-25-A-P-A Compact cylinder
156666
Festo
Festo VABM-B10-25-G12-4-P53-E Common supply manifold
8026239
Festo
Festo FUA-20 Flange mounting
157300
Festo
Festo ADN-40-50-I-PPS-A Compact cylinder
572670
Festo

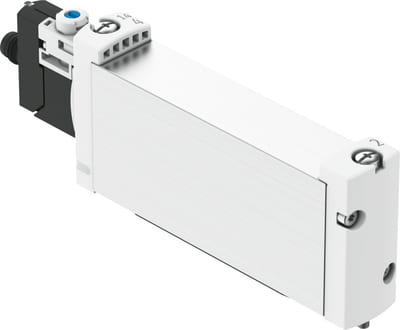

Festo VUVG-B18-M52-RZT-F-1R8L Solenoid valve
