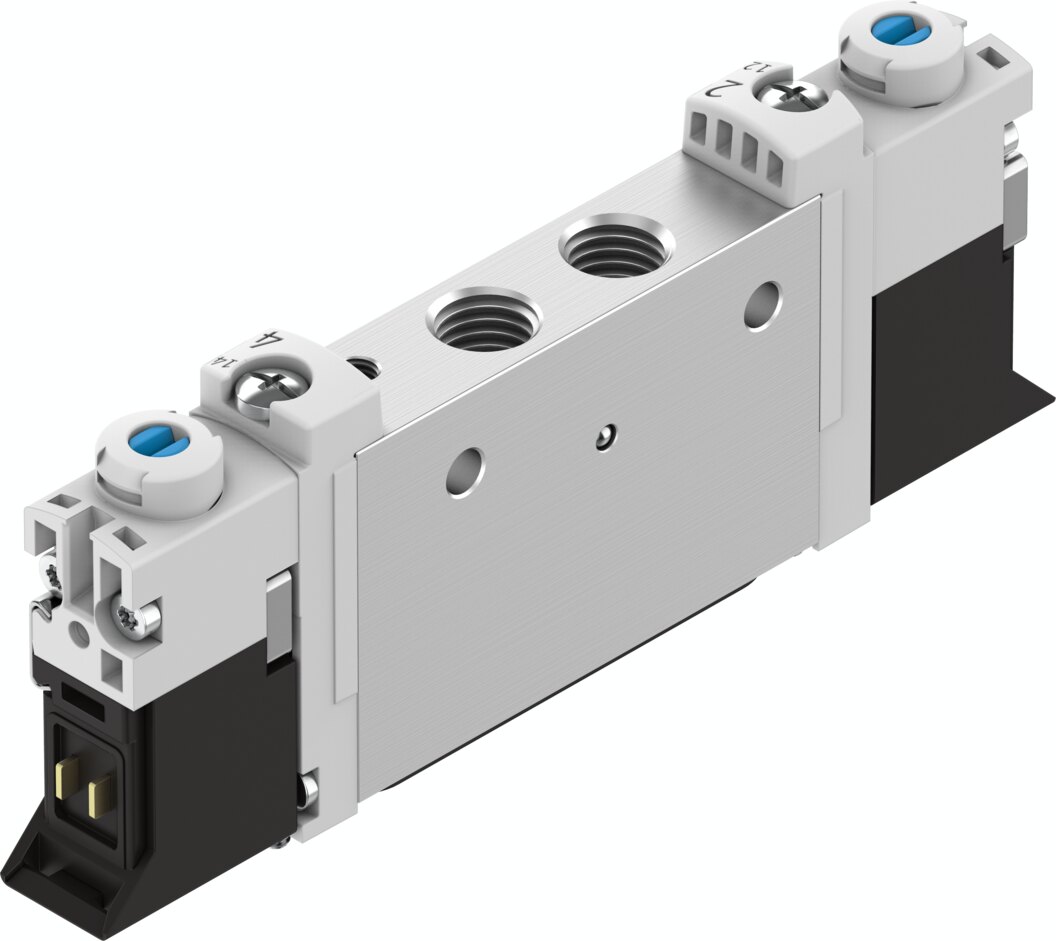

Festo VUVG-L10 Solenoid Valve - M7", El, Spring, VUVG-L10-T32C-MZT-M7-1P3

Festo VUVG-L10 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread M7", activation El, return Spring, supplier type designation VUVG-L10-T32C-MZT-M7-1P3. Supplied under manufacturer part number 574360, EAN 4052568222871, HS code 8481.20, country of origin Germany.

Valve function

2x3/2 closed monostable

Type of actuation

Electrical

Valve size

10 mm

Standard nominal flow rate (standardised to DIN 1343)

155 l/min

pneumatic working port

M7

Operating voltage

24 V DC

Operating pressure

-0.09 ... 1 MPa (-0.9 ... 10 bar)

Design

Piston gate valve

Type of reset

Mechanical spring

Approval

RCM; c UL us - Recognised (Oil)

CE mark (see declaration of conformity)

To EU EMC Directive; To EU Low Voltage Directive; In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions; To UK regulations for electrical equipment

Degree of protection

IP40; IP65; With plug socket

Nominal size

2 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting; Non-detenting; Concealed

Type of piloting

Piloted

Pilot air supply

External

Symbol

00992948

lap

Overlap

Pilot pressure

0.2 ... 0.8 MPa (2 ... 8 bar)

Suitability for vacuum

Yes

Switching time off

11 ms

Switching time on

8 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

700 µs

Max. negative test pulse with 1 signal

900 µs

Characteristic coil data

24 V DC: 1.0 W; 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperature

-5 - 50 °C; Without holding current reduction

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Media temperature

-5 ... 60 °C

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 60 °C

Product weight

54 g

Electrical connection

Via electrical sub-base

Type of mounting

On manifold rail; With through-hole

Pilot air port 12/14

M3

Pneumatic connection, port 1

M7

Pneumatic connection, port 2

M7

Pneumatic connection, port 4

M7

Pneumatic connection, port 5

M7

Material seals

HNBR; NBR

Material housing

Wrought aluminium alloy

EAN / GTIN

4052568222871

Festo type code

VUVG-L10-T32C-MZT-M7-1P3

Festo order number

574360

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

M7"

Activation

El

Return

Spring

Carbon footprint (EPD)

1.1704 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

Manufacturer part number

574360

HS Code

8481.20

• EAN 4052568222871
• MPN 574360
