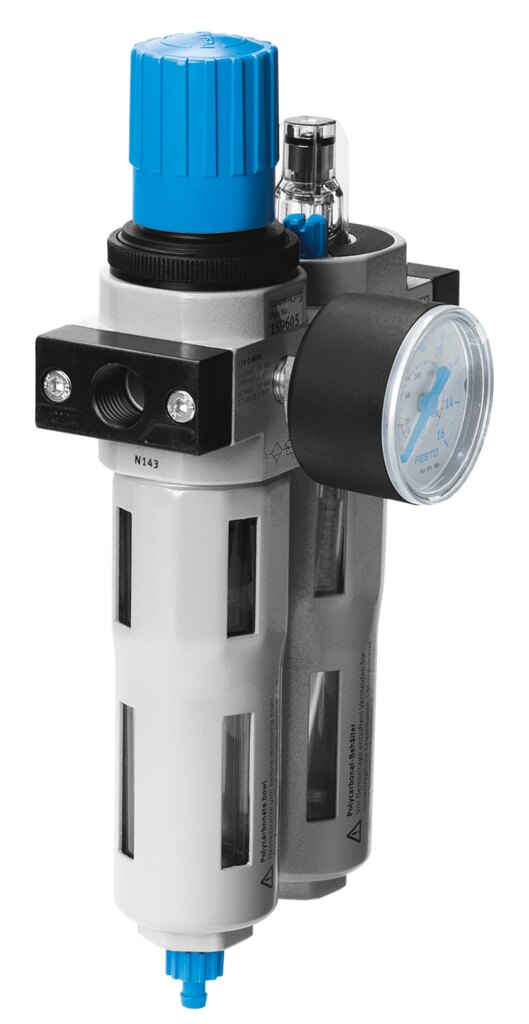

Festo FRC Service Unit Midi manual - 3/4", 0,5 - 12bar, 40MY, FRC-3/4-D-MIDI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FRC Service Unit Midi manual. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 3/4", press area 0.5 to 12 bar, filter element 40 My, supplier type designation FRC-3/4-D-MIDI. Supplied under manufacturer part number 162735, EAN 4052568132477, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Condensate drain
- Manual, rotating
- Design
- Proportional standard mist lubricator
- Max. condensate volume
- 43 ml
- Grade of filtration
- 40 µm
- Bowl guard
- Metal bowl guard
- Symbol
- 00991549
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar) (2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 2600 l/min
- Operating medium
- Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:8:-]; Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1440 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G3/4
- Pneumatic connection, port 2
- G3/4
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- EAN / GTIN
- 4052568132477
- Festo type code
- FRC-3/4-D-MIDI
- Festo order number
- 162735
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/4"
- Press Area
- 0.5 to 12 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 10.9024 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
- Manufacturer part number
- 162735
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568132477
- MPN 162735
