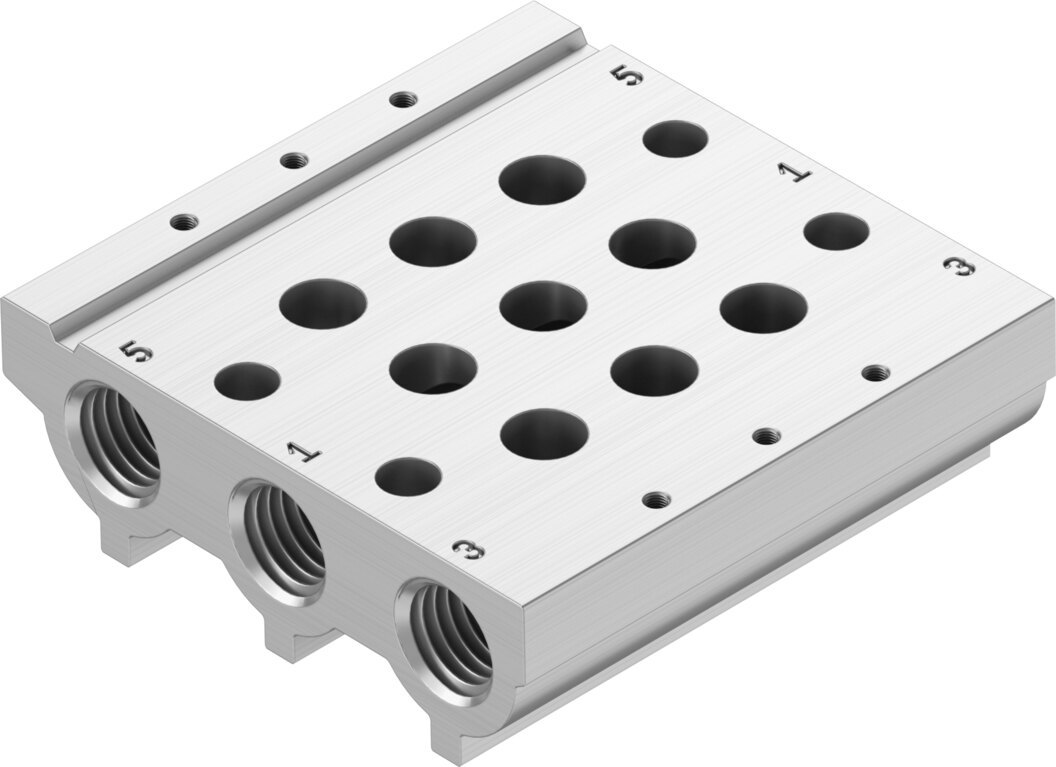

Festo VABM-L1 Connection strip - 1/8", M5/M7, VABM-L1-10S-G18-3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VABM-L1 Connection strip. Pneumatic ISO accessories (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread 1/8", size M5/M7, supplier type designation VABM-L1-10S-G18-3. Supplied under manufacturer part number 566559, EAN 4052568100384, HS code 8481.90, country of origin Germany.
Technical Specifications
- Grid dimension
- 10.5 mm
- Max. number of valve positions
- 16
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Approval
- RCM; c UL us - Recognised (Oil)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Max. tightening torque H-rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 0.45 Nm
- Max. tightening torque wall mounting
- 3 Nm
- Product weight
- 81 g
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 3
- G1/8
- Material manifold rail
- Wrought aluminium alloy
- EAN / GTIN
- 4052568100384
- Festo type code
- VABM-L1-10S-G18-3
- Festo order number
- 566559
- Product type
- Pneumatic ISO accessories
- Product group
- Pneumatics
- Thread
- 1/8"
- Size
- M5/M7
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 2.5121 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 566559
Standards & Compliance
- HS Code
- 8481.90
Cross References
- EAN 4052568100384
- MPN 566559
