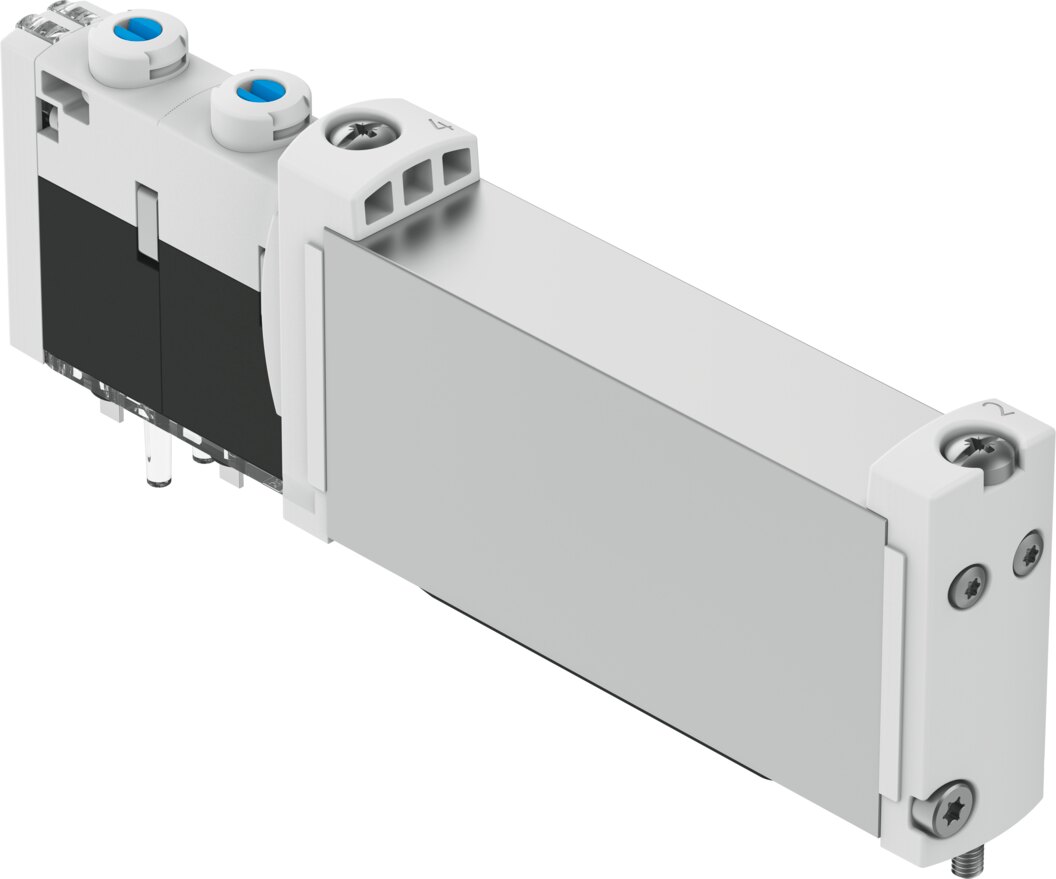

Festo VUVG-B14-P53E-ZT-F-1T1L-F1A Solenoid valve

Festo VUVG-B14-P53E-ZT-F-1T1L-F1A — Solenoid valve, universal directional control valves. valve function 5/3 exhausted; operating pressure -0.09. 1 MPa (-0.9. 10 bar).

Manufacturer part number (MPN)

8141533 Type code: VUVG-B14-P53E-ZT-F-1T1L-F1A EAN / GTIN: 4052568576998 Product category: Universal directional control valves Valve function: 5/3 exhausted Type of actuation: Electrical Valve size: 14 mm Standard nominal flow rate (standardised to DIN 1343): 470 l/min pneumatic working port: Flange Operating voltage: 24 V DC Operating pressure: -0.09 ... 1 MPa (-0.9 ... 10 bar) Design: Piston gate valve Type of reset: Mechanical spring Approval: c UL us - Recognised (Oil) Degree of protection: IP40 Exhaust-air function: Can be throttled Sealing principle: Soft Mounting position: Any Manual override: Detenting, Non-detenting Type of piloting: Piloted Pilot air supply: External Flow direction: Reversible Symbol: 00991127 lap: Overlap Signal status display: LED Pilot pressure: 0.3 ... 0.8 MPa (3 ... 8 bar) Max. switching frequency: 3 Hz Switching time off: 42 ms Switching time on: 15 ms Switching time reversal: 25 ms Duty cycle: 100% Max. positive test pulse with 0 signal: 1600 µs Max. negative test pulse with 1 signal: 3000 µs Characteristic coil data: 22 V DC: 1.0 W Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC: 0 - No corrosion stress LABS (PWIS) conformity: VDMA24364 zone III Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a) Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1 Media temperature: -5 ... 60 °C Pilot medium: Compressed air to ISO 8573-1:2010 [7:4:4] Ambient temperature: -5 ... 60 °C Product weight: 95 g Electrical connection: Via E-box Type of mounting: On manifold rail material seals: HNBR, NBR material housing: Wrought aluminium alloy Product type: Pneumatic solenoid valves Product group: Pneumatics Activation: El Return: mechanical spring Carbon footprint (EPD): 1.9243 kg CO2e per pcs Country of origin: China Customs tariff code (EU CN): 84812090 HS code: 8481.20

HS Code

8481.20

• EAN 4052568576998
• MPN 8141533
