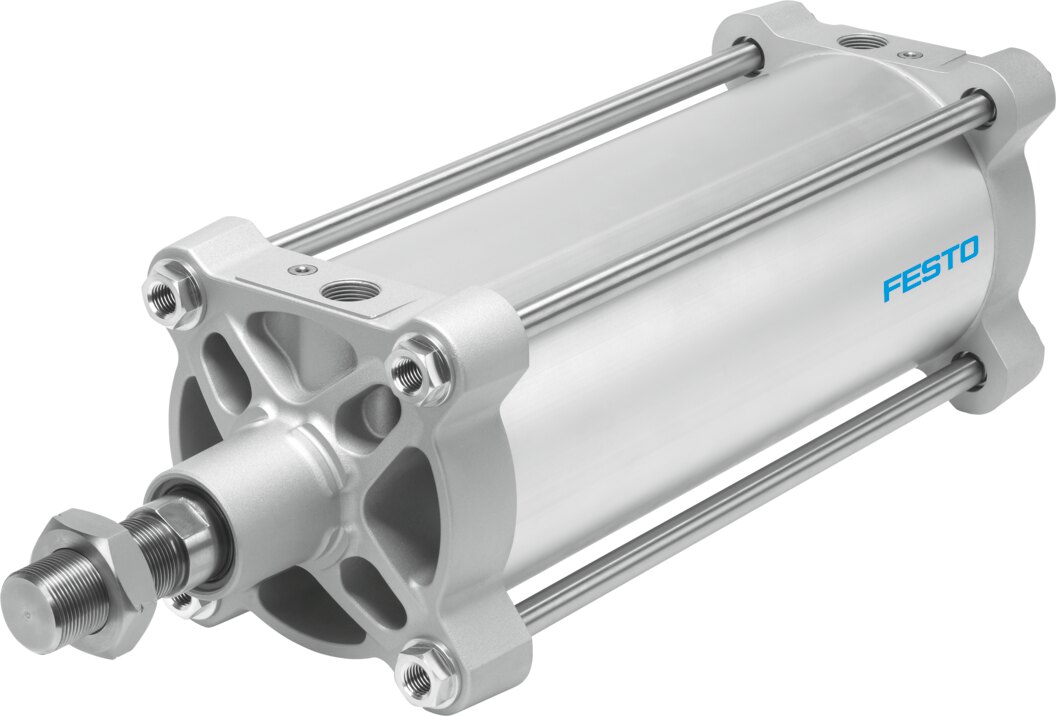

Festo DSBG-160-100-PPVA-N3 ISO cylinder
Part number2029466EAN / GTIN4052568250584HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSBG-160-100-PPVA-N3 — ISO cylinder, profile cylinder and tie rod cylinder. stroke 100 mm; piston diameter 160 mm; operating pressure 0.06. 1 MPa (0.6. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 2029466
- Type code
- DSBG-160-100-PPVA-N3
- EAN / GTIN
- 4052568250584
- Product category
- Profile cylinder and tie rod cylinder
- Stroke
- 100 mm
- Piston diameter
- 160 mm
- Piston rod thread
- M36x2
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod, Tie rod 1, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 3.3 J
- Cushioning length
- 48 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 11310 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 12064 N
- Moving mass
- 5262 g
- Moving mass for 0 mm stroke
- 4292 g
- Additional moving mass per 10 mm stroke
- 97 g
- Product weight
- 13831 g
- Basic weight for 0 mm stroke
- 11751 g
- Additional weight per 10 mm stroke
- 208 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- G3/4
- Material cover
- Cast aluminium, coated
- Material piston seal
- NBR
- Material piston
- Cast aluminium
- Material piston rod
- High-alloy steel
- Material piston rod wiper
- NBR
- Buffer seal material
- TPE-U(PU)
- Material of cushioning boss
- POM
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Material nut
- Galvanised steel
- Material bearing
- Metal polymer compound
- Material collar nut
- Galvanised steel
- Material tie rod
- High-alloy steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G3/4"
- Carbon footprint (EPD)
- 0.2812 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568250584
- MPN 2029466
Product Documentation
Document preview: DSBG-160-100-PPVA-N3 — Festo product documentation
