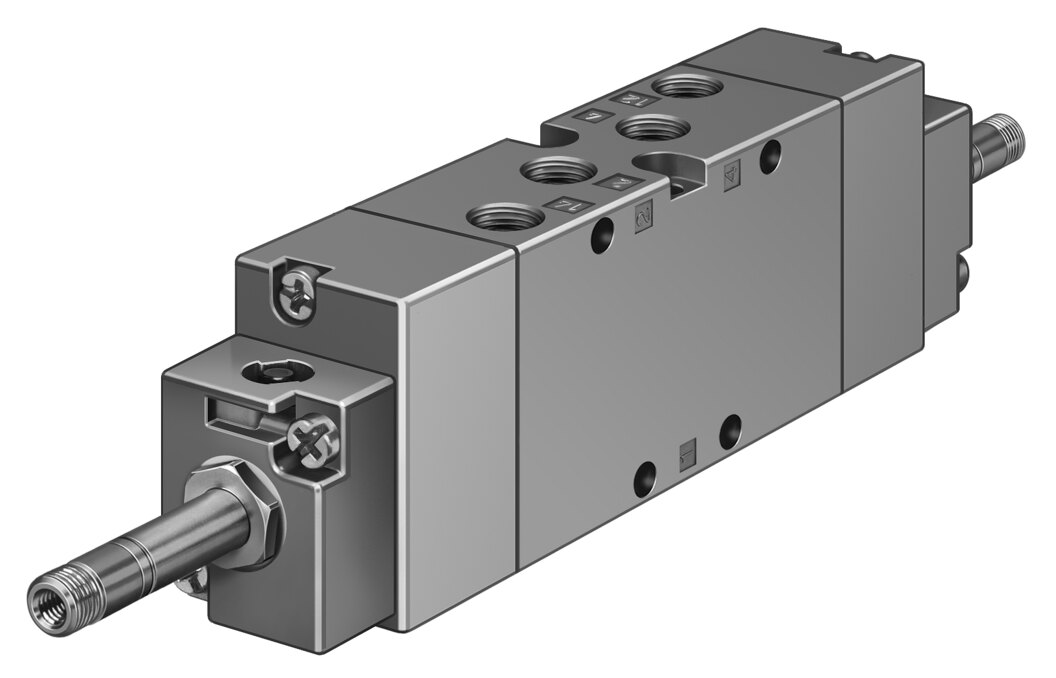

Festo JMFH-5-1/8-S-B-EX Solenoid valve
Part number535933EAN / GTIN4052568169831HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMFH-5-1/8-S-B-EX — Solenoid valve, valves and valve terminals. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 535933
- Type code
- JMFH-5-1/8-S-B-EX
- EAN / GTIN
- 4052568169831
- Product category
- Valves and valve terminals
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- CE mark (see declaration of conformity)
- To EU Explosion Protection Directive (ATEX)
- Explosion protection certification outside the EU
- EPL Db (GB), EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- To UK EX instructions
- ATEX category gas
- II 2G
- ATEX category dust
- II 2D
- Explosion ignition protection type for gas
- Ex h IIC T4 Gb
- Explosion ignition protection type for dust
- Ex h IIIC T130°C Db
- Explosion ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal size
- 8 mm
- Grid dimension
- 27 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991016
- lap
- Overlap
- Pilot pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Max. switching frequency
- 3 Hz
- Switching time reversal
- 12 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Explosion protection
- Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -5 ... 40 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 440 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Air
- Carbon footprint (EPD)
- 7.7764 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568169831
- MPN 535933
Product Documentation
Document preview: JMFH-5-1/8-S-B-EX — Festo product documentation
More from Festo
Festo

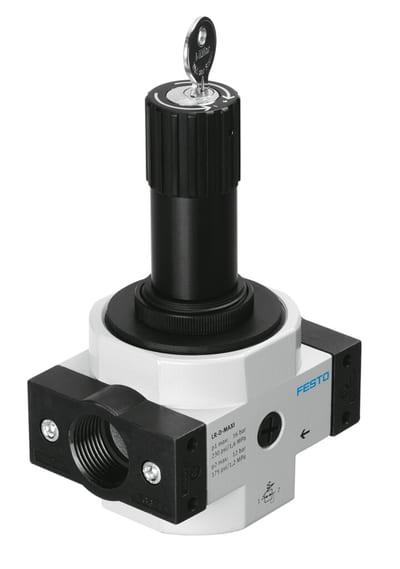

Festo LRS-1-D-7-O-MAXI Pressure regulator
194669
Festo

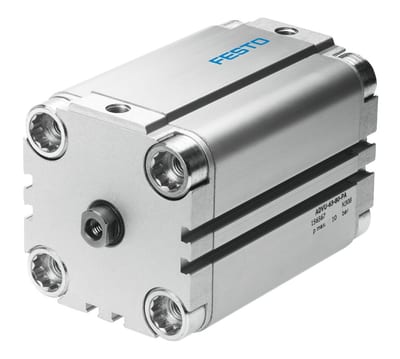

Festo ADVU-100-40-P-A Compact cylinder
156582
Festo

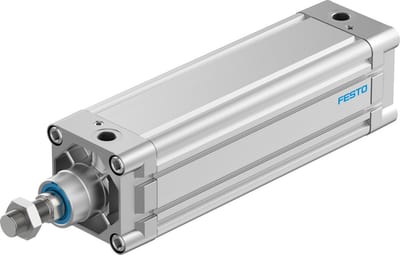

Festo DNC-100-320-PPV-A ISO cylinder
163474
Festo

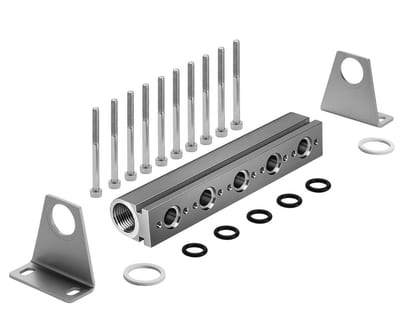

Festo PAL-3/8-5-B Common supply manifold
30695
Festo

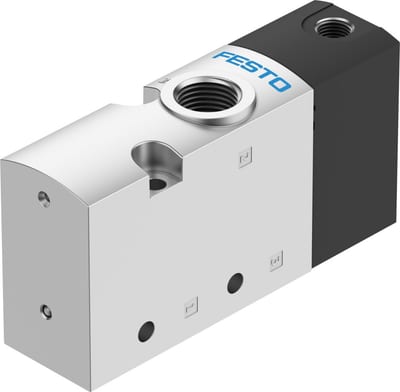

Festo VUWS-L30-M32U-M-G38 Pneumatic valve
575593
Festo
Festo DNC-63-160-PPV-A ISO cylinder
163407
Festo

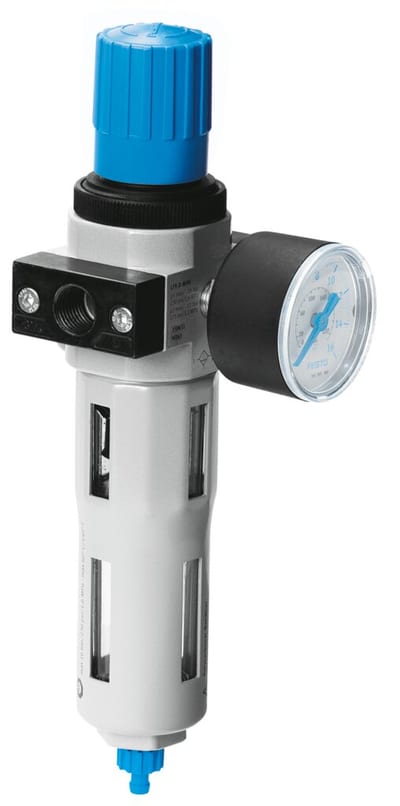

Festo LFR-3/8-D-7-MINI Filter regulator
162704
Festo

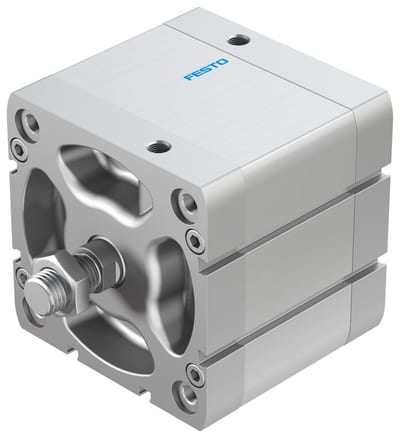

Festo ADN-100-40-A-P-A Compact cylinder
