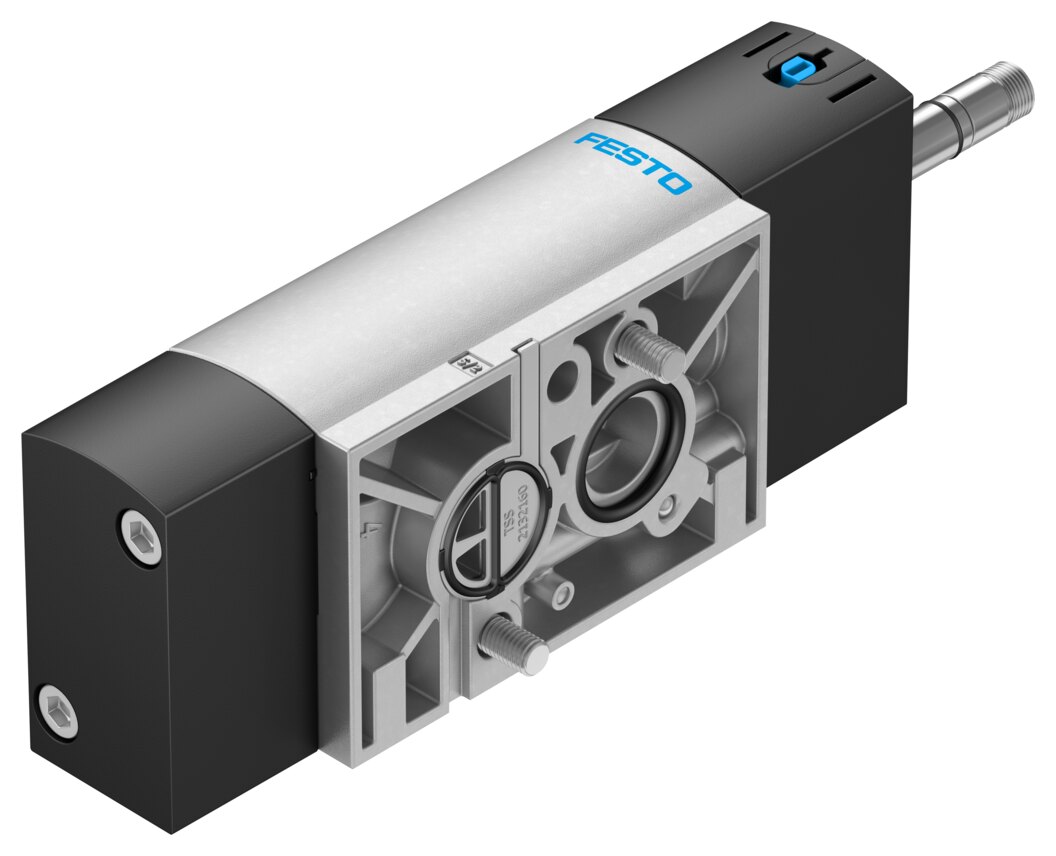

Festo VSNC-FC-M52-MD-G14-FN Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VSNC-FC-M52-MD-G14-FN — Solenoid valve, namur valves. valve function 5/2-way or 3/2-way, convertible; operating pressure 0.25. 0.8 MPa (2.5. 8 bar); conforms to standard VDI/VDE 3845 (NAMUR).
Technical Specifications
- Manufacturer part number (MPN)
- 577267
- Type code
- VSNC-FC-M52-MD-G14-FN
- EAN / GTIN
- 4052568262501
- Product category
- NAMUR valves
- Valve function
- 5/2-way or 3/2-way, convertible
- Type of actuation
- Electrical
- Construction width
- 32 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1250 l/min
- pneumatic working port
- Connection pattern to NAMUR
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Certificate issuing authority
- DNVGL-TAA000011J
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991831
- lap
- Overlap
- Signal status display
- With accessories
- b value
- 0.4
- C value
- 5.2 l/sbar
- Standard nominal flow rate, exhaust return 4->3
- 110 l/min
- Switching time off
- 92 ms
- Switching time on
- 35 ms
- Duty cycle
- 100%
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media temperature
- -20 ... 60 °C
- Ambient temperature
- -20 ... 60 °C
- Product weight
- 415 g
- Type of mounting
- With through-hole
- Breather connection
- Not ducted
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- Connection pattern to NAMUR
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- Connection pattern to NAMUR
- Pneumatic connection, port 5
- G1/4
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material screws
- Galvanised steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Return
- Spring
- Temperature min
- -20 °C
- Temperature max
- 60 °C
- Working pressure
- 8 bar
- Carbon footprint (EPD)
- 7.6574 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568262501
- MPN 577267
