Festo

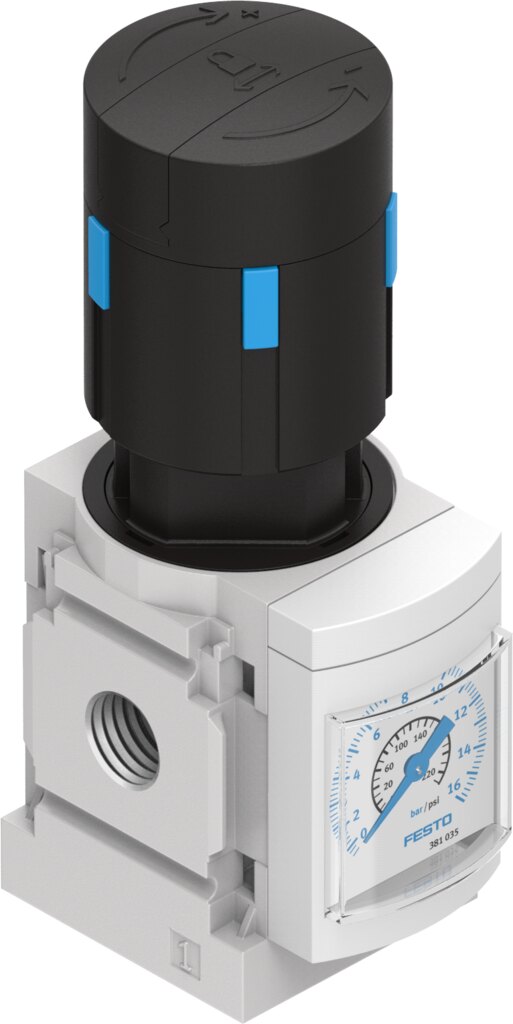

Festo MS4-LR-1/4-D7-AS Pressure regulator
Part number529419EAN / GTIN4052568085070HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS4-LR-1/4-D7-AS — Pressure regulator, pressure regulators ms-lr. operating pressure 0.08. 1.4 MPa (0.8. 14 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 529419
- Type code
- MS4-LR-1/4-D7-AS
- EAN / GTIN
- 4052568085070
- Product category
- Pressure regulators MS-LR
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent, can be closed with accessories
- Mounting position
- Any
- Design
- Directly actuated diaphragm regulator
- Controller function
- Output pressure constant, with secondary exhausting, with return flow function
- Symbol
- 00991558
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.08 ... 1.4 MPa (0.8 ... 14 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.025 MPa (0.25 bar; 3.625 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 1700 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Suitable for use with food
- See supplementary material information
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 225 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Material sub-base
- Die-cast aluminium
- Material control panel
- PA, POM
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Material membrane
- NBR
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 1.6258 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568085070
- MPN 529419
