Festo

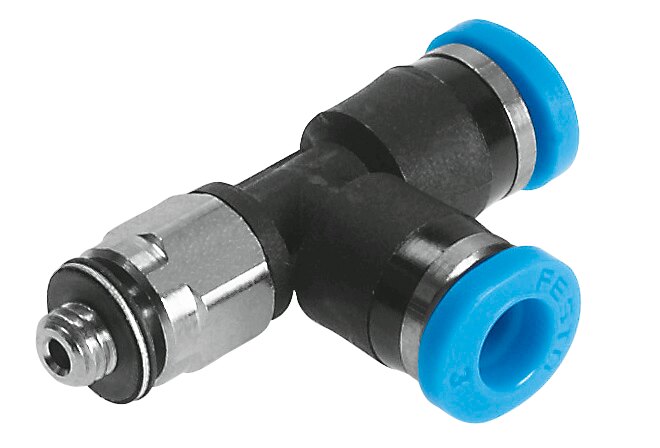

Festo QSMTL-M5-6 Push-in T-fitting
Part number153363EAN / GTIN4052568034214HS code7412.20
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSMTL-M5-6 — Push-in T-fitting, push-in fittings. nominal size 1.7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 153363
- Type code
- QSMTL-M5-6
- EAN / GTIN
- 4052568034214
- Product category
- Push-in fittings
- Size
- Mini
- Nominal size
- 1.7 mm
- Tubing insertion depth
- 11.9 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape, additional push-in connector, lengthwise
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 80 °C
- Nominal torque
- 1.2 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 5.7 g
- Number of outputs
- 2
- Number of supply lines
- 1
- Type of mounting
- External hexagon, size 8 mm
- Pneumatic connection, port 1
- Male thread M5
- Pneumatic connection, port 2
- For tubing outside diameter of 6 mm
- Colour of release ring
- Blue
- Material screwed plug
- Nickel-plated brass
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- Product type
- Insertions C
- Product group
- Pneumatics
- Outer hose diameter
- 6 mm
- Thread
- M5"
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0415 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568034214
- MPN 153363
Product Documentation
Document preview: QSMTL-M5-6 — Festo product documentation
