Festo

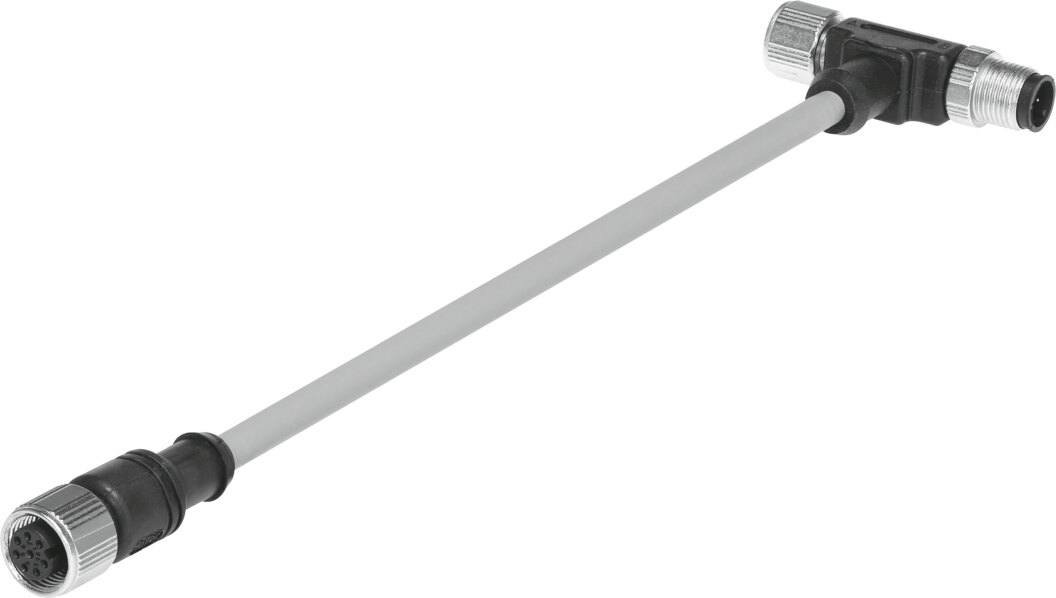

Festo VAVE-P8-VPS Programming cable
Part number570971EAN / GTIN4052568217617HS code8544.42
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VAVE-P8-VPS — Programming cable, electrical connection components. conforms to standard DIN 47100, EN 61076-2-101.
Technical Specifications
- Manufacturer part number (MPN)
- 570971
- Type code
- VAVE-P8-VPS
- EAN / GTIN
- 4052568217617
- Product category
- Electrical connection components
- Conforms to standard
- DIN 47100, EN 61076-2-101
- Design
- T-distributor with cable on controller side
- Distrubution
- 1 to 2
- Additional functions
- Programming interface for proportional pressure regulator
- Cable designation
- Without inscription label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connector system
- M12x1, A-coded to EN 61076-2-101
- Electrical connection 1, number of connections/cores
- 8
- Electrical connection 1, used connections/cores
- 8
- Electrical connection 1, type of mounting
- Screw-type lock, size 14 mm
- Electrical connection 1, connection pattern
- 00992265
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connector system
- M12x1, A-coded to EN 61076-2-101
- Electrical connection 2, number of connections/cores
- 8
- Electrical connection 2, used connections/cores
- 8
- electrical connection 2, type of mounting
- Screw-type lock, size 14 mm
- Electrical connection 2, connection pattern
- 00992264
- Electrical connection 3, function
- Control side
- Electrical connection 3, design
- Round
- Electrical connection 3, connection type
- Socket
- Electrical connection 3, cable outlet
- Straight
- Electrical connection 3, connector system
- M12x1, A-coded to EN 61076-2-101
- Electrical connection 3, number of connections/cores
- 5
- Electrical connection 3, used connections/cores
- 4
- Electrical connection 3, type of mounting
- Screw-type lock
- Electrical connection 3, connection pattern
- 00991861
- Operational voltage range DC
- 0 ... 30 V
- Operational voltage range AC
- 0 ... 30 V
- Current rating at 40° C
- 2 A
- Shielding
- Yes
- Cable length 1
- 0.15 m
- Cable characteristic
- Standard
- Cable diameter 1
- 6.3 mm
- Tolerance for cable diameter 1
- ±0.2 mm
- Cable structure
- 8 x 0.25 mm²
- Nominal cross section conductor
- 0.25 mm²
- Degree of protection
- IP65, IP67
- Ambient temperature
- -25 ... 80 °C
- Ambient temperature with moving cable
- -5 ... 80 °C
- CE mark (see declaration of conformity)
- To EU EMC Directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Pollution degree
- 3
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- Material cable sheath
- TPE-U(PUR)
- Cable sheath colour
- Grey
- Material housing
- TPE-U(PUR)
- Housing colour
- Black
- Material screw-type lock
- Nickel-plated die-cast zinc
- Material seals
- NBR
- Material electrical contact
- Gold-plated brass
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Exit
- M12x1
- Carbon footprint (EPD)
- 0.2370 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85444290
- HS code
- 8544.42
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4052568217617
- MPN 570971
Product Documentation
Document preview: VAVE-P8-VPS — Festo product documentation
