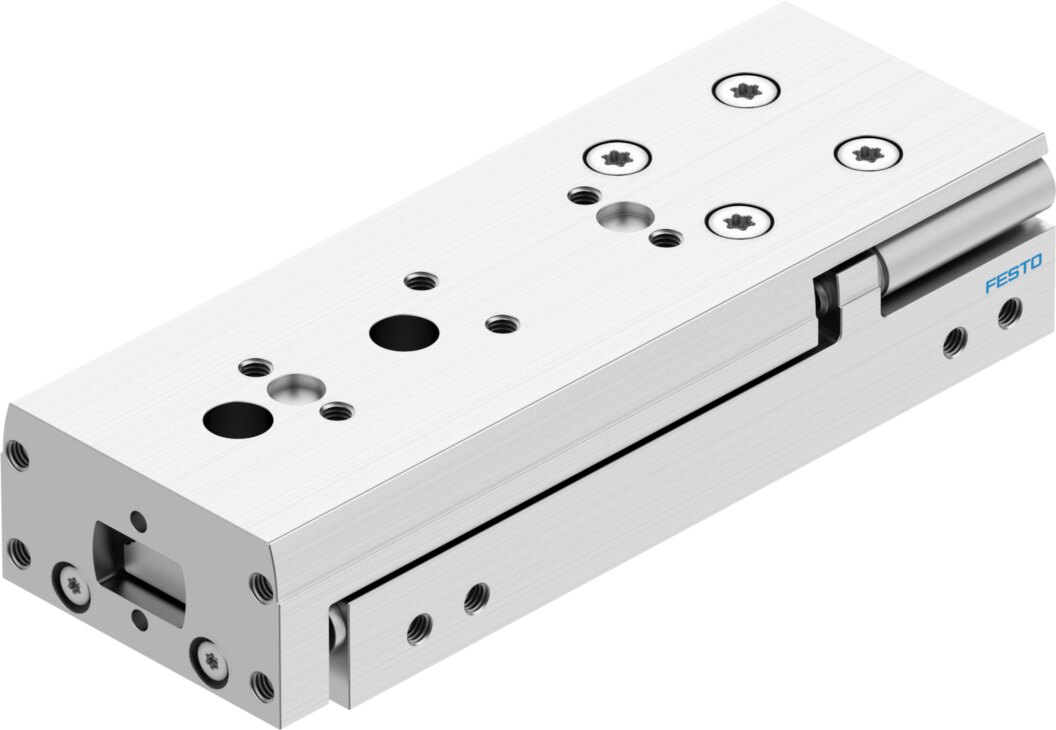

Festo DGST-6-50-PA Mini slide
Part number8085109EAN / GTIN4052568449971HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGST-6-50-PA — Mini slide, drives with slides. stroke 50 mm; piston diameter 6 mm; operating pressure 0.15. 0.8 MPa (1.5. 8 bar; 21.75. 116 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 8085109
- Type code
- DGST-6-50-PA
- EAN / GTIN
- 4052568449971
- Product category
- Drives with slides
- Stroke
- 50 mm
- Adjustable end position range/length front
- 13.1 mm
- Adjustable end position range/length rear
- 11.6 mm
- Piston diameter
- 6 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Yoke, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991249
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar; 21.75 ... 116 psi)
- Max. speed
- 0.5 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 ... 60 °C
- Impact energy in end positions
- 0.018 J
- Cushioning length
- 0.9 mm
- Max. force Fy
- 280 N
- Max. force Fz
- 280 N
- Max. moment Mx
- 1.4 Nm
- Max. moment My
- 1.2 Nm
- Max. moment Mz
- 1.2 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 25 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 34 N
- Moving mass
- 93 g
- Product weight
- 182 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material guide
- POM, TPE-E, High-alloy steel
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 3.2769 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568449971
- MPN 8085109
Product Documentation
