Festo
Festo FENG-63-400-KF Guide unit
Part number34519EAN / GTIN4052568115364HS code8412.90
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FENG-63-400-KF — Guide unit, linear guides. stroke 400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 34519
- Type code
- FENG-63-400-KF
- EAN / GTIN
- 4052568115364
- Product category
- Linear guides
- Size
- 63
- Stroke
- 400 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Explosion protection
- The information in the certificate must be observed!
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. moment Mx
- 75 Nm
- Max. torque Mx static
- 95 Nm
- Max. moment My
- 90 Nm
- Max. torque My static
- 115 Nm
- Max. moment Mz
- 90 Nm
- Max. torque Mz static
- 115 Nm
- Displacement force
- 15 N
- Product weight
- 7370 g
- Type of mounting
- With female thread
- Material guide component
- Tempered steel
- Material housing
- Anodised wrought aluminium alloy
- Material yoke plate
- Anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 134.2464 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84129070
- HS code
- 8412.90
Standards & Compliance
- HS Code
- 8412.90
Cross References
- EAN 4052568115364
- MPN 34519
Product Documentation
Document preview: FENG-63-400-KF — Festo product documentation
More from Festo
Festo
Festo VMPA2-M1BH-E-PI Solenoid valve
8022038
Festo
Festo DZH-50-300-PPV-A Flat cylinder
14072
Festo
Festo DZF-25-10-A-P-A Flat cylinder
161250
Festo

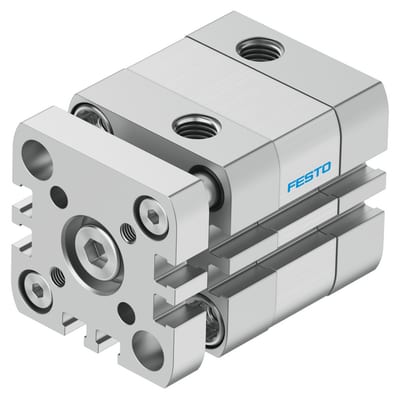

Festo ADNGF-25-60-P-A Compact cylinder
554237
Festo

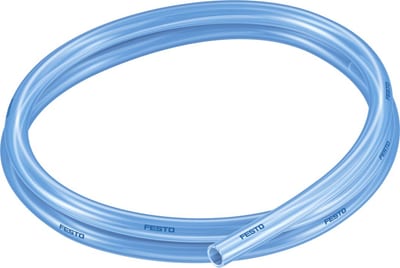

Festo PUN-H-10X1,5-Tbl Plastic tubing
8048701
Festo
Festo FUA-32 Flange mounting
157302
Festo
Festo NPFC-S-2G38-F Coupling sleeve
8030293
Festo

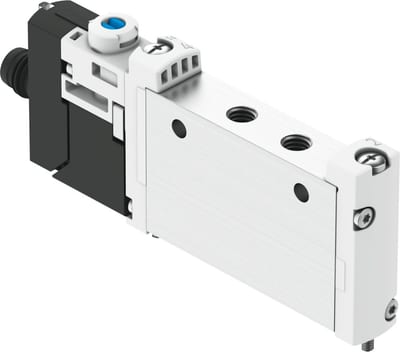

Festo VUVG-L10-M52-MT-M5-1R8L Solenoid valve
