Festo

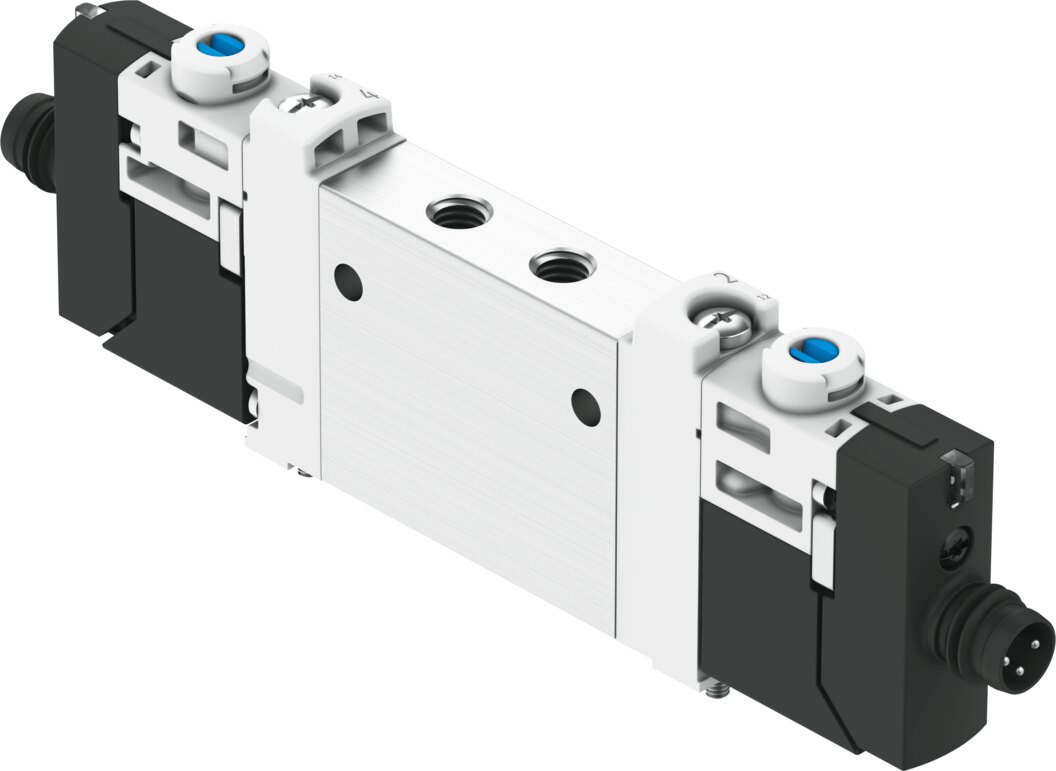

Festo VUVG-LK10-T32C-AT-M5-1R8L-S Solenoid valve
Part number8042542EAN / GTIN4052568286743HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-LK10-T32C-AT-M5-1R8L-S — Solenoid valve, universal directional control valves. valve function 2x3/2 closed monostable; operating pressure 0.15. 0.7 MPa (1.5. 7 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 8042542
- Type code
- VUVG-LK10-T32C-AT-M5-1R8L-S
- EAN / GTIN
- 4052568286743
- Product category
- Universal directional control valves
- Valve function
- 2x3/2 closed monostable
- Type of actuation
- Electrical
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 180 l/min
- pneumatic working port
- M5
- Operating voltage
- 24 V DC
- Operating pressure
- 0.15 ... 0.7 MPa (1.5 ... 7 bar)
- Design
- Piston slide with sealing ring
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00992904
- lap
- Overlap
- Signal status display
- LED
- Max. switching frequency
- 2 Hz
- Switching time off
- 14 ms
- Switching time on
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse with 1 signal
- 3000 µs
- Characteristic coil data
- 24 V DC: 0.8 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 55 g
- Electrical connection
- M8x1 A-encoded to EN 61076-2-104, Plug
- Type of mounting
- On manifold rail, with through-hole
- Pneumatic connection, port 2
- M5
- Pneumatic connection, port 4
- M5
- Material seals
- HNBR, NBR
- Material housing
- Wrought aluminium alloy
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Temperature min
- -5 °C
- Temperature max
- 50 °C
- Working pressure
- 7 bar
- Carbon footprint (EPD)
- 1.3135 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568286743
- MPN 8042542
Product Documentation
Document preview: VUVG-LK10-T32C-AT-M5-1R8L-S — Festo product documentation
