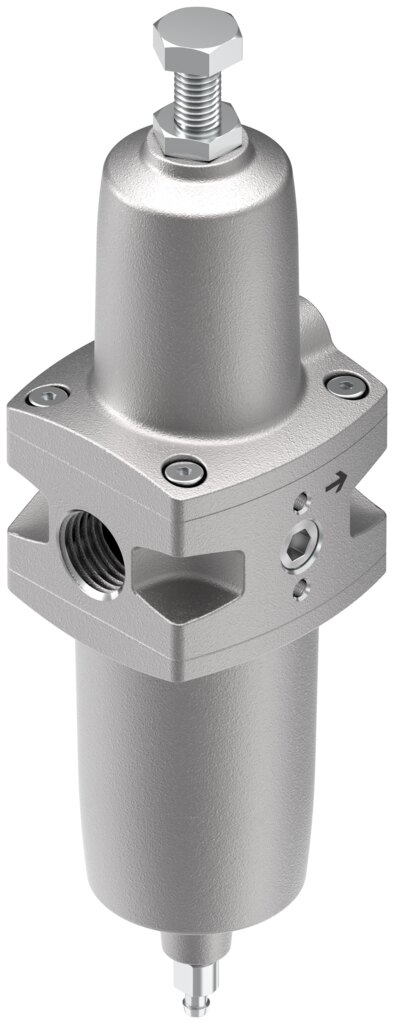

Festo PCRP-64-G12-12-E-R1-M-T18 Filter regulator
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo PCRP-64-G12-12-E-R1-M-T18 — Filter regulator, individual devices. operating pressure 0.1. 2 MPa (1. 20 bar); conforms to standard NACE MR0175/ISO 15156 (housing and bowl).
Technical Specifications
- Manufacturer part number (MPN)
- 4787814
- Type code
- PCRP-64-G12-12-E-R1-M-T18
- EAN / GTIN
- 4052568418892
- Product category
- Individual devices
- Size
- 64
- Series
- P
- Actuator lock
- Adjusting screw with lock
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 40 µm
- Condensate drain
- Manual, rotating
- Design
- Filter regulator without pressure gauge
- Conforms to standard
- NACE MR0175/ISO 15156 (housing and bowl)
- Max. condensate volume
- 30 ml
- Controller function
- With primary pressure compensation, with secondary exhausting
- Symbol
- 00991586
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/4
- Operating pressure
- 0.1 ... 2 MPa (1 ... 20 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.2 bar
- Max. standard flow rate
- 6440 l/min
- Standard nominal flow rate (standardised to DIN 1343)
- 3100 l/min
- Explosion protection
- The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Operating medium
- Inert gas
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -20 ... 80 °C
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Media temperature
- -20 ... 80 °C
- Ambient temperature
- -20 ... 80 °C
- Product weight
- 1910 g
- Type of mounting
- With mounting kit
- Pressure gauge connection
- G1/4
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material of drain screw
- High-alloy stainless steel
- Material number of drain screw
- 1.4404/316L
- Material filter carrier
- Cast stainless steel
- Material number of filter support
- 1.4409/CF3M(316L)
- Material mounting bracket
- High-alloy stainless steel
- Material seals
- CR, NBR
- Material spring
- High-alloy stainless steel
- Material filter
- High-alloy stainless steel
- Material number of filter
- 1.4404/316L
- Material housing
- Cast stainless steel
- Material number housing
- 1.4409/CF3M(316L)
- Material adjusting screw
- High-alloy stainless steel
- Material bowl
- Cast stainless steel
- Material number of bowl
- 1.4409/CF3M (316L)
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Filter element
- 40 My
- Temperature min
- -20 °C
- Temperature max
- 80 °C
- Carbon footprint (EPD)
- 17.7588 kg CO2e per pcs
- Country of origin
- India
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568418892
- MPN 4787814
