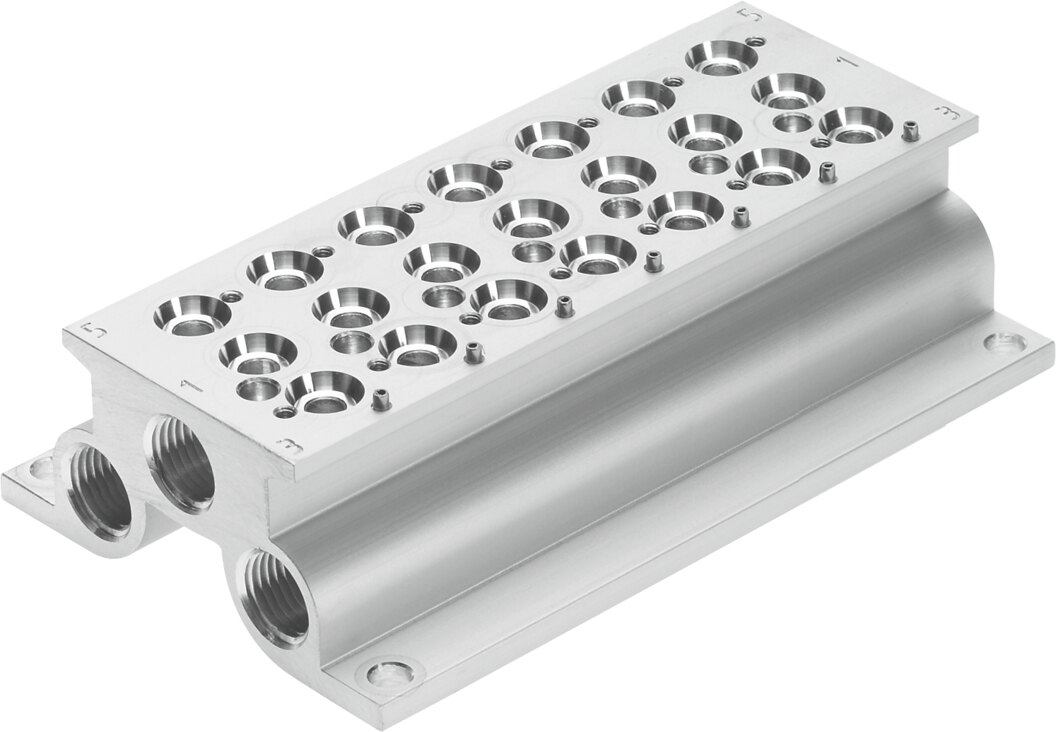

Festo CPE14-PRS-3/8-7 Manifold block
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE14-PRS-3/8-7 — Manifold block, valves and valve terminals. operating pressure -0.09. 1 MPa (-0.9. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 543835
- Type code
- CPE14-PRS-3/8-7
- EAN / GTIN
- 4052568091644
- Product category
- Valves and valve terminals
- Grid dimension
- 20 mm
- Mounting position
- Any
- Max. number of valve positions
- 7
- Max. number of pressure zones
- 2
- Burst pressure
- 5 MPa (50 bar; 725 psi)
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque for valve mounting
- 1.2 Nm
- Product weight
- 671 g
- Type of mounting in-line valve manifold
- With through-hole
- Mounting method for valve
- With female thread
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material manifold rail
- Wrought aluminium alloy
- Product type
- Pneumatic ISO accessories
- Product group
- Pneumatics
- Thread
- 3/8"
- Carbon footprint (EPD)
- 6.8502 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
Standards & Compliance
- HS Code
- 8481.90
Cross References
- EAN 4052568091644
- MPN 543835
Product Documentation
More from Festo
Festo
Festo DSBC-32-125-PPVA-N3 ISO cylinder
1376427
Festo
Festo AEVC Short stroke cylinder - 16mm, M5, 25mm, AEVC-16-25-A-P-A
188104
Festo
Festo ADVC Short stroke cylinder - 32mm, G1/8, 20mm, ADVC-32-20-A-P-A
188217
Festo
Festo ADN-50-30-I-P-A Compact cylinder
536325
Festo
Festo AEVC Short stroke cylinder - 63mm, G1/8, 10mm, AEVC-63-10-A-P-A
188280
Festo
Festo DFM-16-100-P-A-GF Guided drive
170839
Festo
Festo YSRF-S-8-C Mounting flange
4052568068035
Festo

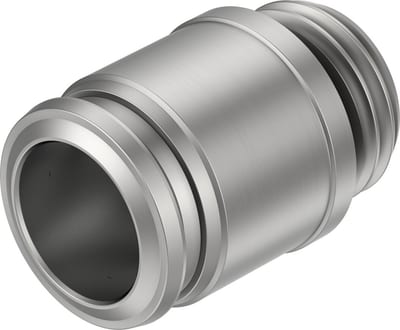

Festo NPQR-DK-G12-Q16 Push-in fitting
