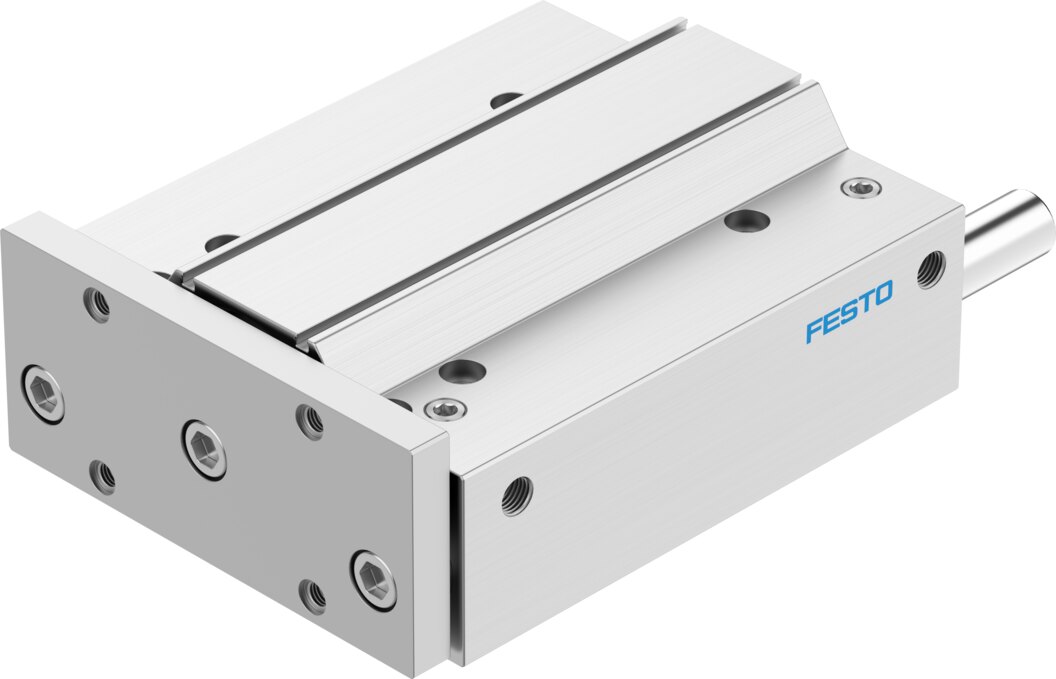

Festo DFM-100-200-P-A-KF Guided drive
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM-100-200-P-A-KF — Guided drive, drives with guide rods. stroke 200 mm; piston diameter 100 mm; operating pressure 0.05. 1 MPa (0.5. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 170973
- Type code
- DFM-100-200-P-A-KF
- EAN / GTIN
- 4052568013578
- Product category
- Drives with guide rods
- Distance from centre of gravity of load to yoke plate xs
- 125 mm
- Stroke
- 200 mm
- Piston diameter
- 100 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Symbol
- 00991737
- Operating pressure
- 0.05 ... 1 MPa (0.5 ... 10 bar)
- Max. speed
- 0.4 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 ... 60 °C
- Impact energy in end positions
- 1 J
- Max. force Fy
- 3043 N
- Max. force Fy static
- 5400 N
- Max. force Fz
- 3043 N
- Max. force Fz static
- 5400 N
- Max. moment Mx
- 286.02 Nm
- Max. torque Mx static
- 507.6 Nm
- Max. moment My
- 155.16 Nm
- Max. torque My static
- 275.4 Nm
- Max. moment Mz
- 155.16 Nm
- Max. torque Mz static
- 275.4 Nm
- Max. permissible torque load Mx as a function of stroke
- 40.82 Nm
- Max. effective load dependent upon stroke at defined dista
- 422 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 4418 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 4712 N
- Moving mass
- 8910 g
- Product weight
- 21124 g
- Centre of gravity of moving mass as a function of stroke
- 116.3 mm
- alternative connections
- See product drawing
- Pneumatic connection
- G3/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G3/8
- Carbon footprint (EPD)
- 396.6370 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568013578
- MPN 170973
Product Documentation
More from Festo
Festo

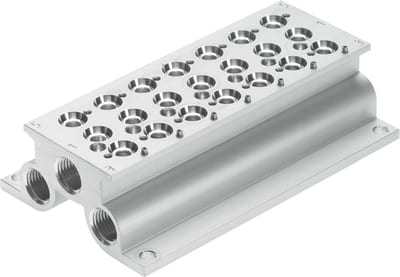

Festo CPE14-PRS-3/8-7 Manifold block
543835
Festo

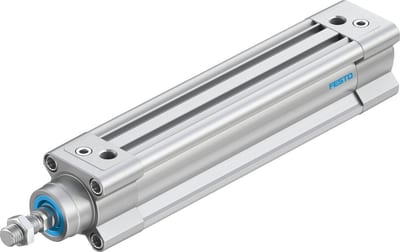

Festo DSBC-32-125-PPVA-N3 ISO cylinder
1376427
Festo

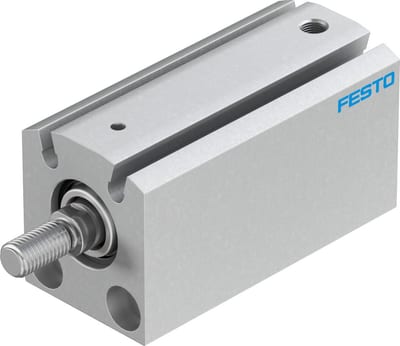

Festo AEVC Short stroke cylinder - 16mm, M5, 25mm, AEVC-16-25-A-P-A
188104
Festo

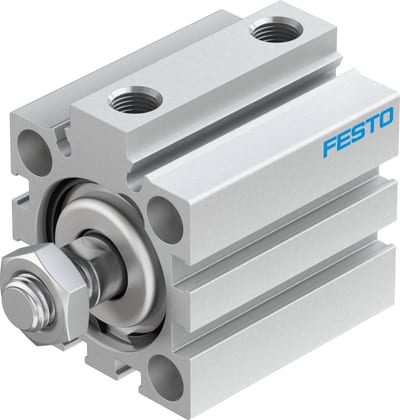

Festo ADVC Short stroke cylinder - 32mm, G1/8, 20mm, ADVC-32-20-A-P-A
188217
Festo

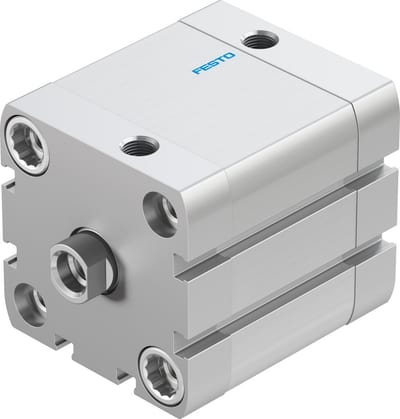

Festo ADN-50-30-I-P-A Compact cylinder
536325
Festo

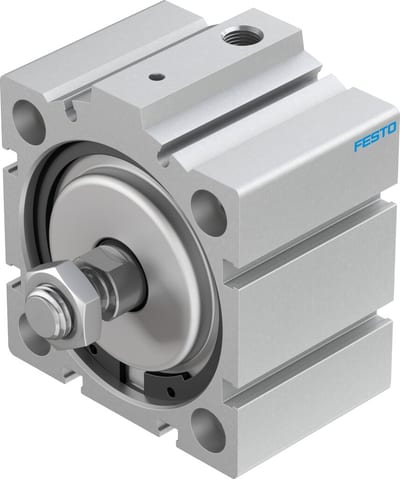

Festo AEVC Short stroke cylinder - 63mm, G1/8, 10mm, AEVC-63-10-A-P-A
188280
Festo

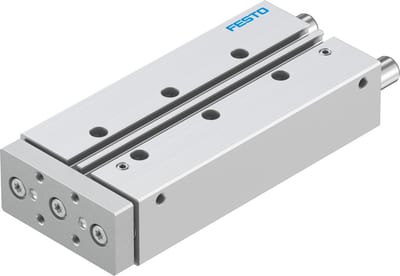

Festo DFM-16-100-P-A-GF Guided drive
