Festo

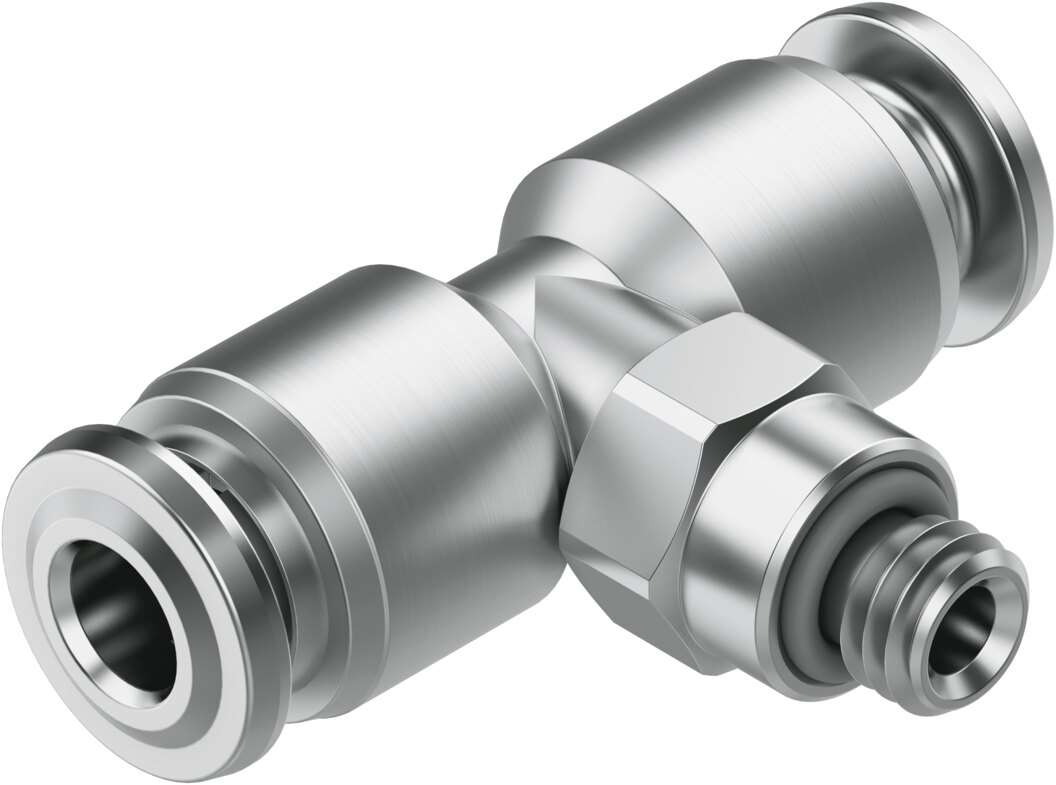

Festo NPQR-T-M5-Q4 Push-in fitting
Part number8085691EAN / GTIN4052568454838HS code7307.29
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQR-T-M5-Q4 — Push-in fitting, push-in fittings. nominal size 2 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 8085691
- Type code
- NPQR-T-M5-Q4
- EAN / GTIN
- 4052568454838
- Product category
- Push-in fittings
- Size
- Standard
- Nominal size
- 2 mm
- Tubing insertion depth
- 11 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 1
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 1.6 MPa (-0.95 ... 16 bar; -13.775 ... 232 psi)
- Certificate issuing authority
- NSF C0556009
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 4 - Very high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity, NSF/ANSI 169
- Ambient temperature
- -20 ... 150 °C
- Nominal torque
- 1 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 10.4 g
- Type of mounting
- External hexagon, size 8 mm
- Pneumatic connection, port 1
- Male thread M5
- Pneumatic connection, port 2
- For tubing outside diameter of 4 mm
- Colour of release ring
- Silver
- Material housing
- High-alloy stainless steel
- Material thread seal
- Fluoro rubber
- Guard ring material
- High-alloy stainless steel
- Material release ring
- High-alloy stainless steel
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PPSU
- Product type
- Push-in connectors
- Product group
- Pneumatics
- Outer hose diameter
- 4 mm
- Thread diameter
- 5 mm
- Carbon footprint (EPD)
- 0.2546 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 73072910
- HS code
- 7307.29
Standards & Compliance
- HS Code
- 7307.29
Cross References
- EAN 4052568454838
- MPN 8085691
Product Documentation
Document preview: NPQR-T-M5-Q4 — Festo product documentation
