Festo

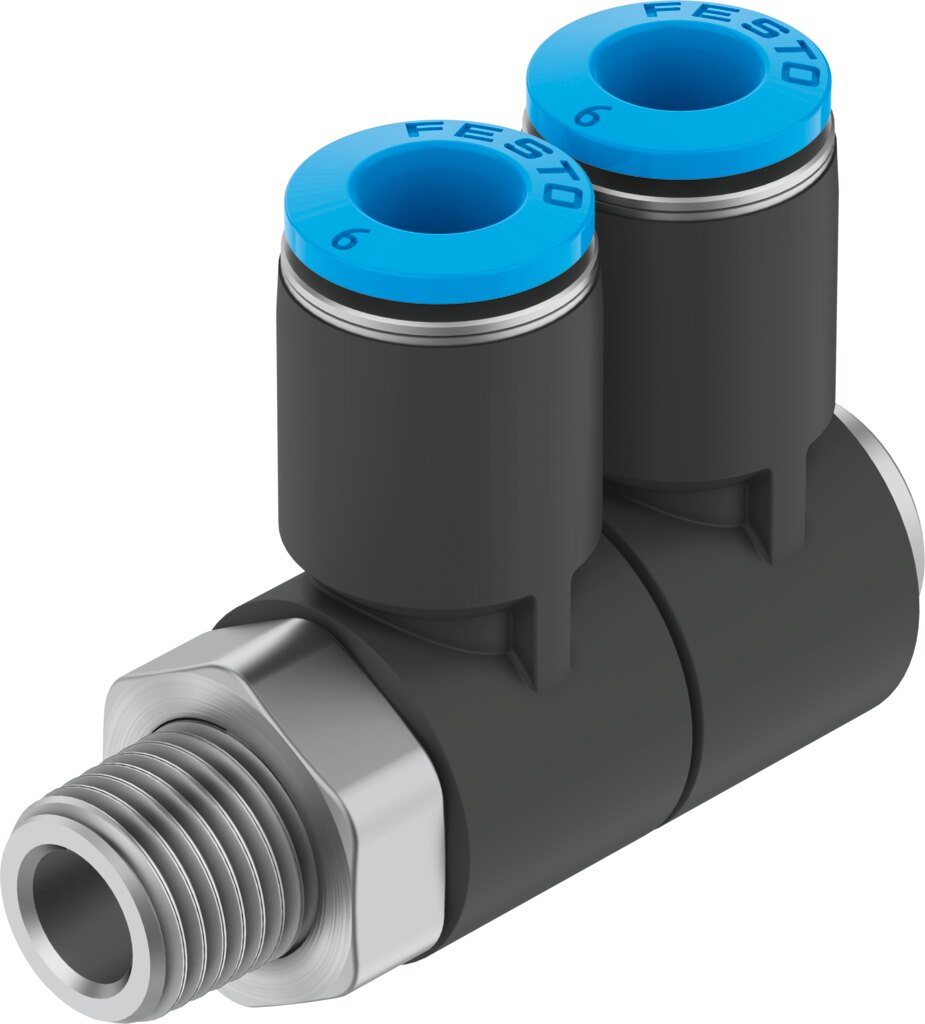

Festo QSLV2-1/4-6 Multiple distributor
Part number153213EAN / GTIN4052568032968HS code7419.80
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSLV2-1/4-6 — Multiple distributor, pneumatic multi connectors. nominal size 3.2 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 153213
- Type code
- QSLV2-1/4-6
- EAN / GTIN
- 4052568032968
- Product category
- Pneumatic multi connectors
- Size
- Standard
- Nominal size
- 3.2 mm
- Tubing insertion depth
- 17 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Push-pull principle
- Size of pack
- 1
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 80 °C
- Nominal torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 34 g
- Number of outputs
- 2
- Number of supply lines
- 1
- Pneumatic connection, port 1
- Male thread R1/4
- Pneumatic connection, port 2
- For tubing outside diameter of 6 mm
- Colour of release ring
- Blue
- Material housing
- PBT
- Material hollow bolt
- Brass, nickel-plated
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- Product type
- Insertions C
- Product group
- Pneumatics
- Outer hose diameter
- 6 mm
- Thread
- 1/4"
- Carbon footprint (EPD)
- 0.2556 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 74198090
- HS code
- 7419.80
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 4052568032968
- MPN 153213
Product Documentation
Document preview: QSLV2-1/4-6 — Festo product documentation
