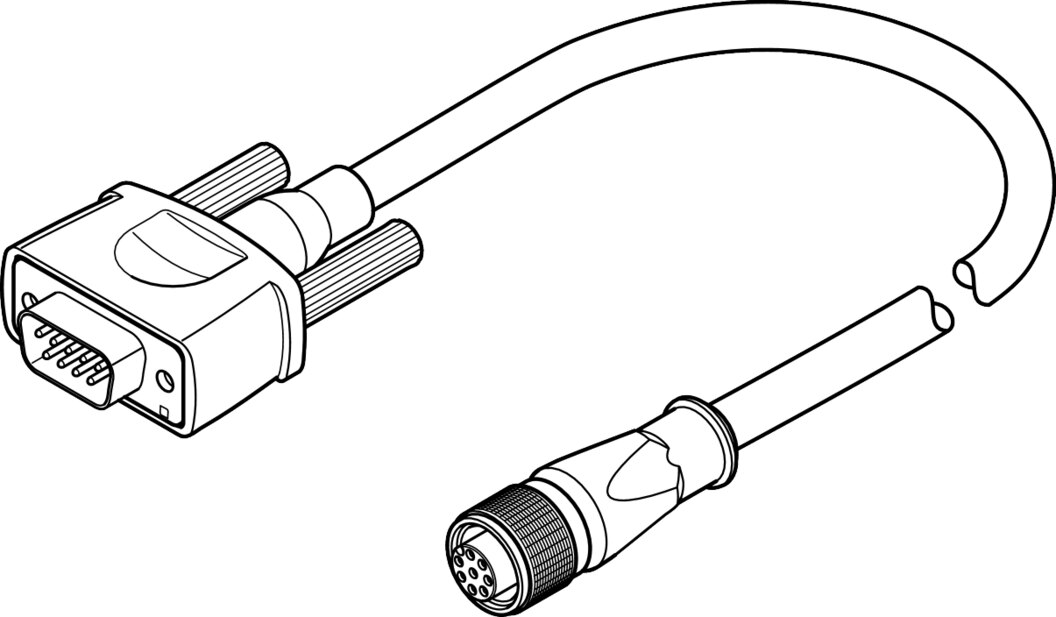

Festo NEBM-M12G8-E-10-S1G9 Encoder cable
Part number550749EAN / GTIN4052568192594HS code8544.42
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NEBM-M12G8-E-10-S1G9 — Encoder cable, accessories for servo drives.
Technical Specifications
- Manufacturer part number (MPN)
- 550749
- Type code
- NEBM-M12G8-E-10-S1G9
- EAN / GTIN
- 4052568192594
- Product category
- Accessories for servo drives
- Cable designation
- Without inscription label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connector system
- M12x1, A-coded to EN 61076-2-101
- Electrical connection 1, number of connections/cores
- 8
- Electrical connection 1, used connections/cores
- 8
- Electrical connection 1, connection pattern
- 00992265
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connector system
- Sub-D
- Electrical connection 2, number of connections/cores
- 9
- Electrical connection 2, used connections/cores
- 8
- Electrical connection 2, connection pattern
- 00995639
- Operational voltage range DC
- 0 ... 30 V
- Nominal operating voltage DC
- 24 V
- Operational voltage range AC
- 0 ... 30 V
- Nominal operating voltage AC
- 24 V
- Shielding
- Yes
- Cable length
- 10 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, moving cable
- 49 mm
- Cable diameter
- 6.5 mm
- Cable structure
- 4 x 2 x 0.14 mm²
- Nominal cross section conductor
- 0.14 mm²
- Degree of protection
- IP65
- Ambient temperature
- -40 ... 70 °C
- Ambient temperature with moving cable
- -40 ... 70 °C
- CE mark (see declaration of conformity)
- In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material cable sheath
- TPE-U(PUR)
- Cable sheath colour
- Grey
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Temperature max
- 70 °C
- Temperature min
- -40 °C
- Carbon footprint (EPD)
- 3.6057 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85444290
- HS code
- 8544.42
