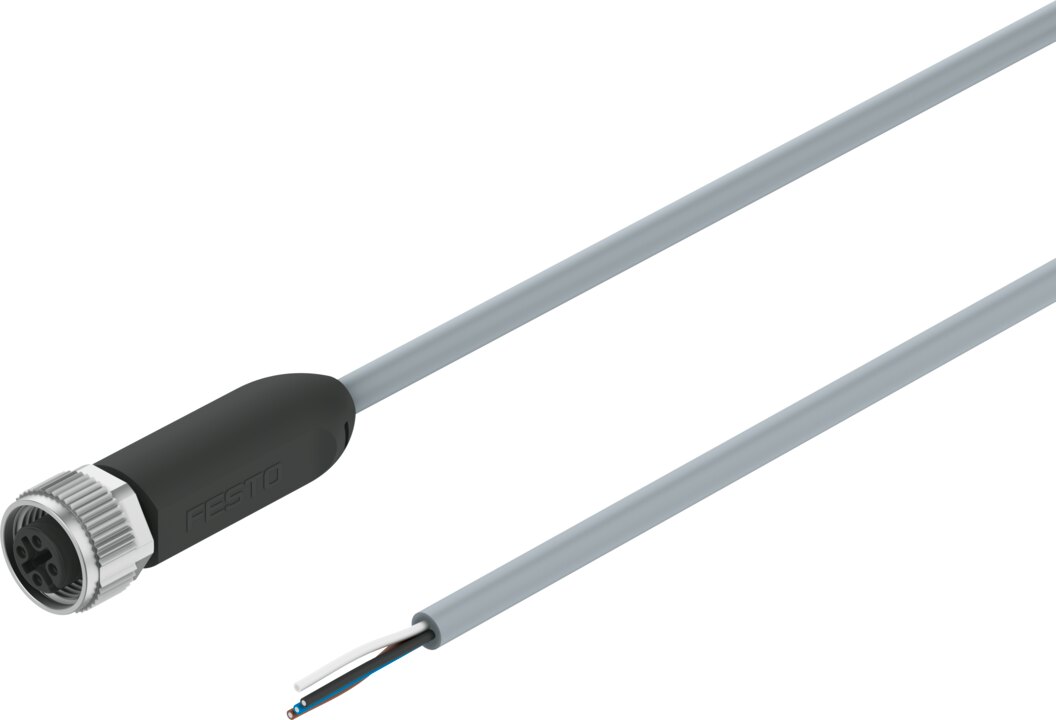

Festo NEBA-M12G5-U-2.5-N-LE4 Connecting cable

Festo NEBA-M12G5-U-2.5-N-LE4 — Connecting cable, connecting cables, universal. conforms to standard EN 61984.

Manufacturer part number (MPN)

8078239

Type code

NEBA-M12G5-U-2.5-N-LE4

EAN / GTIN

4052568625955

Product category

Connecting cables, universal

Conforms to standard

EN 61984

Approval

c UL us - Listed (Oil)

Intended use

The connecting cable connects field devices (sensors, actuators) with controllers.

Explosion protection

The information in the certificate must be observed!, Zone 2 (ATEX), Zone 22 (ATEX)

Certificate issuing authority

UL E253748

Cable designation

Without inscription label holder

Frequency of connection

100

Product weight

72 g

Electrical connection 1, function

Field device side

Electrical connection 1, design

Round

Electrical connection 1, connection type

Socket

Electrical connection 1, cable outlet

Straight

Electrical connection 1, connector system

M12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores

5

Electrical connection 1, used connections/cores

4

Electrical connection 1, type of mounting

Screw-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mounting

Compatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern

00991861

Electrical connection 1, terminal allocation

Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK

Electrical connection 1, display

None

Electrical connection 2, function

Control side

Electrical connection 2, connection type

Cable

Electrical connection 2, connector system

Open end

Electrical connection 2, number of connections/cores

4

Electrical connection 2, used connections/cores

4

Electrical connection 2, terminal allocation

Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK

Electrical connection 2, display

None

Operational voltage range DC

0 ... 250 V

Operational voltage range AC

0 ... 250 V

Current rating at 40° C

4 A

Immunity to surge

2.5 kV

Cable length

2.5 m

Cable characteristic

Suitable for energy chains/robot applications, Abrasion-resistant, Low adhesion, Flame-retardant and self-extinguishing

Test conditions cable

Test conditions on request

Torsional strength

> 300,000 cycles, ±270°/0.1 m

Flexural strength

>50000 cycles, bending radius 5 mm

Energy chain

> 5 million cycles, bending radius 28 mm

Notes on test conditions cable

Tested at 23°C

Bending radius, fixed cable

14 mm

Bending radius, moving cable

46 mm

Cable diameter

4.5 mm

Cable structure

4 x 0.25 mm²

Nominal cross section conductor

0.25 mm²

Wire ends

Stripped, Cut off bluntly

Degree of protection

IP65, IP68, IP69K

Special characteristics

UV-resistant, Hydrolysis-resistant, Resistant to cooling lubricants, Resistant to microbes, Oil-resistant, Ozone-resistant

Outdoor applications

Application areas with direct exposure to outdoor climatic influences Class D1 based on IEC 60654-1

Ambient temperature

-40 ... 85 °C

Ambient temperature with moving cable

-20 ... 85 °C

Storage temperature

-25 ... 55 °C

Relative air humidity

Max. 93% at 40 °C

Nominal altitude of use

<= 2000 m NHN

Overvoltage category

II

CE mark (see declaration of conformity)

To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions, To UK regulations for electrical equipment

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14

Class 4 according to ISO 14644-1

Pollution degree

3

Corrosion resistance class CRC

1 - Low corrosion stress

Material cable sheath

TPE-U(PUR)

Cable sheath colour

Grey

Material housing

TPE-U(PUR)

Housing colour

Black

Material screw-type lock

Nickel-plated die-cast zinc

Material seals

Fluoro rubber

Material electrical contact

Gold-plated copper alloy

Material insulating sheath

PP

Product type

Pneumatic coils/cable connectors

Product group

Pneumatics

Size

M12 mm

Carbon footprint (EPD)

0.6131 kg CO2e per pcs

Country of origin

Turkey

Customs tariff code (EU CN)

85444290

HS code

8544.42

HS Code

8544.42
