Festo

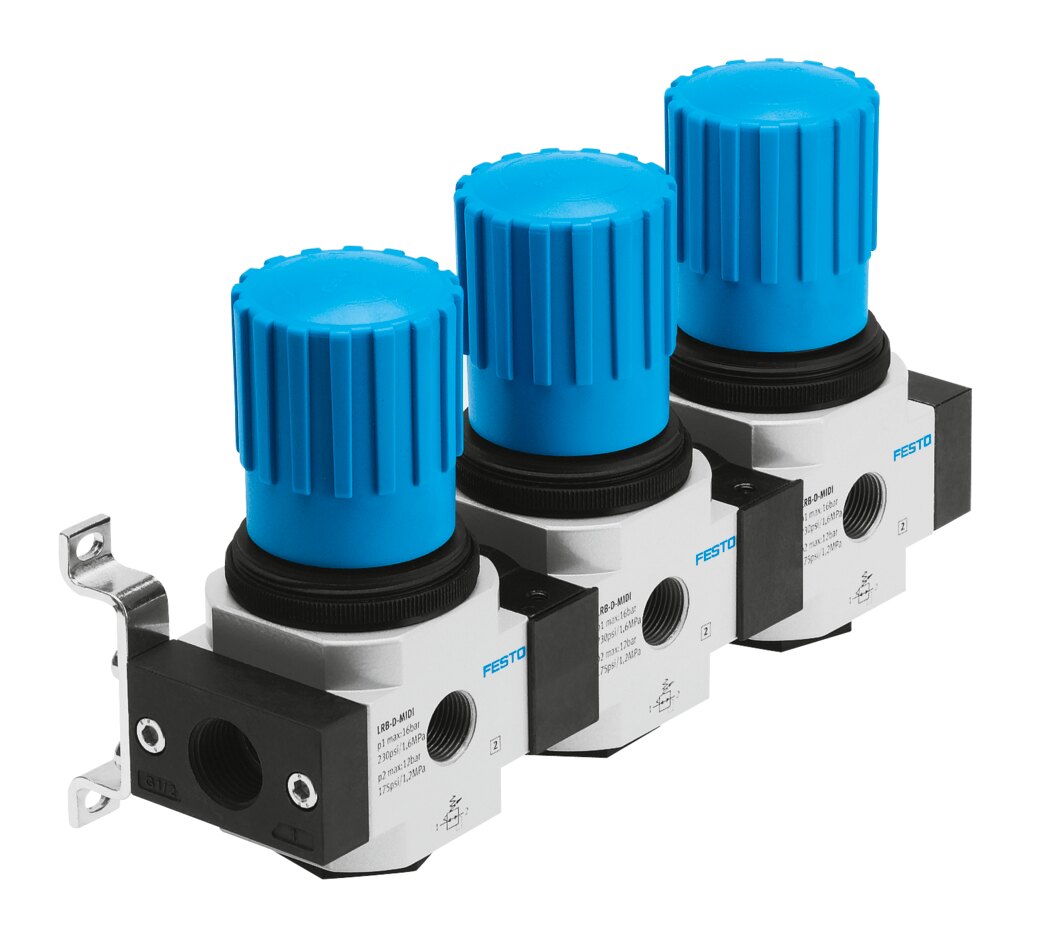

Festo LRB-3/8-D-O-K3-MINI Pressure regulating valve manifold
Part number528971EAN / GTIN4052568163211HS code8481.10
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LRB-3/8-D-O-K3-MINI — Pressure regulating valve manifold, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 528971
- Type code
- LRB-3/8-D-O-K3-MINI
- EAN / GTIN
- 4052568163211
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Mini
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Any
- Design
- Directly actuated diaphragm regulator, with through compressed air supply
- Controller function
- Output pressure constant, with primary pressure compensation, with secondary exhausting
- Symbol
- 00995332
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/8
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.05 ... 1.2 MPa (0.5 ... 12 bar; 7.25 ... 174 psi)
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar; 2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1090 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G1/4
- Material sub-base
- Die-cast zinc
- Material control panel
- PA
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/8"
- Press Area
- 0.5 to 12 bar
- Carbon footprint (EPD)
- 9.8247 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568163211
- MPN 528971
Product Documentation
Document preview: LRB-3/8-D-O-K3-MINI — Festo product documentation
