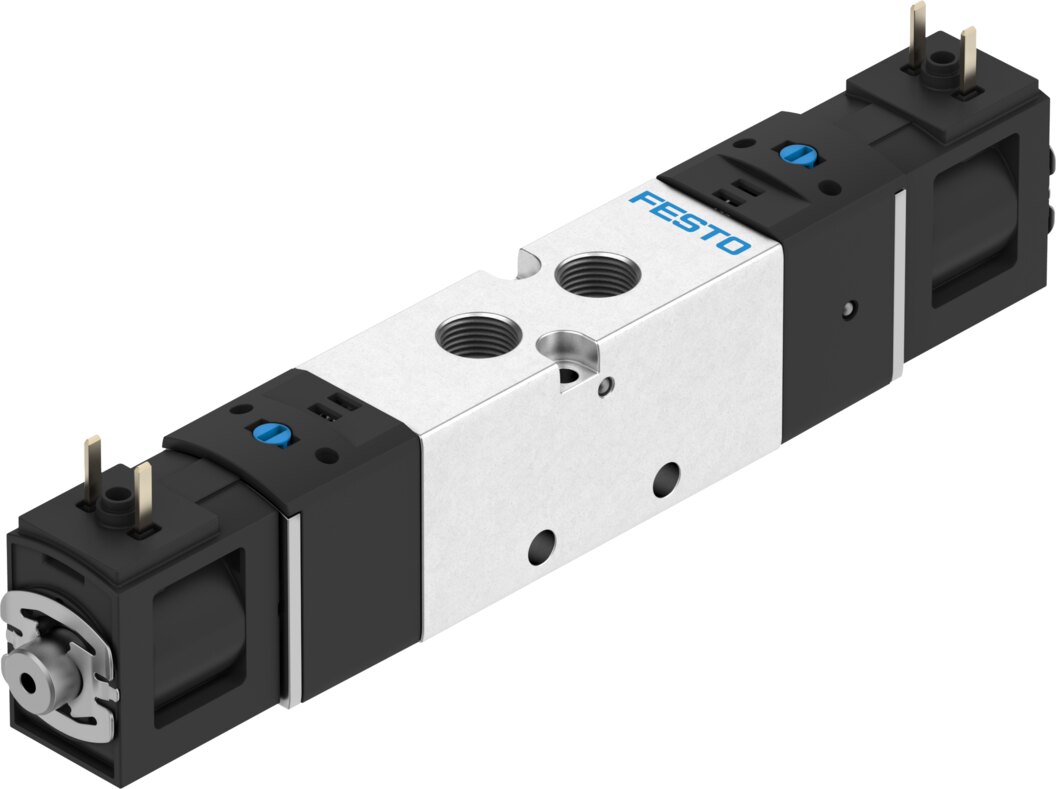

Festo VUVS-LK20-B52-D-G18-1C1-S Solenoid valve
Part number8043215EAN / GTIN4052568287115HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-LK20-B52-D-G18-1C1-S — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure 0.15. 0.8 MPa (1.5. 8 bar); nominal size 5.2 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 8043215
- Type code
- VUVS-LK20-B52-D-G18-1C1-S
- EAN / GTIN
- 4052568287115
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 21 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 550 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Design
- Piston gate valve
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 5.2 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991005
- lap
- Overlap
- b value
- 0.38
- C value
- 2.66 l/sbar
- Switching time reversal
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2700 µs
- Max. negative test pulse with 1 signal
- 1100 µs
- Characteristic coil data
- 24 V DC: 2.4 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 200 g
- Electrical connection
- Type C, To EN 175301-803
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- HNBR, NBR
- Material housing
- Wrought aluminium alloy
- Material piston slide
- Wrought aluminium alloy
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Temperature min
- -5 °C
- Temperature max
- 50 °C
- Working pressure
- 8 bar
- Carbon footprint (EPD)
- 4.5746 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
