Festo

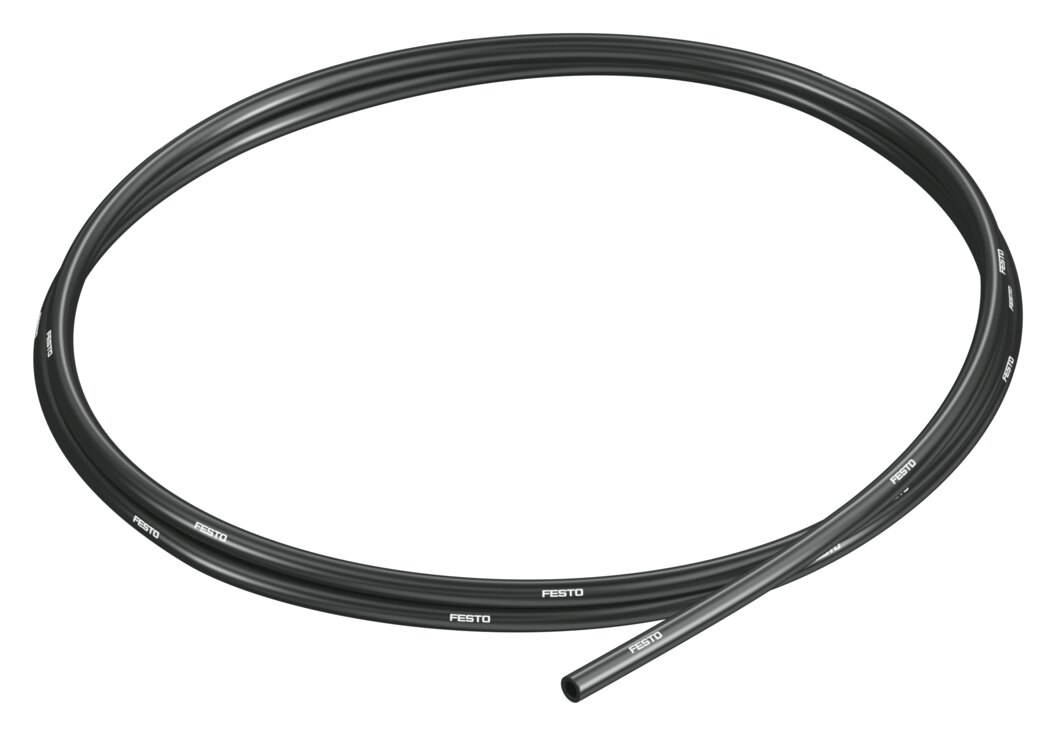

Festo PUN-H-4X0,75-Sw Plastic tubing
Part number197390EAN / GTIN4052568045197HS code3917.32
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo PUN-H-4X0,75-SW — Plastic tubing, standard pneumatic tubing.
Technical Specifications
- Manufacturer part number (MPN)
- 197390
- Type code
- PUN-H-4X0,75-SW
- EAN / GTIN
- 4052568045197
- Product category
- Standard pneumatic tubing
- Outside diameter
- 4 mm
- Flow-relevant bending radius
- 16 mm
- Inside diameter
- 2.6 mm
- Min. bending radius
- 8 mm
- Instructions on use
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar; -13.775 ... 145 psi)
- Approval
- German Technical Control Board (TÜV)
- Certificate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Fire test material
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Element installed statically, no meaningful evaluation possible according to ISO 14644-1
- Suitable for use with food
- See supplementary material information
- Ambient temperature
- -35 ... 60 °C
- Product weight according to length
- 0.0085 kg/m
- Pneumatic connection
- For push-in connector O.D. 4 mm, For push-in connector outside diameter of 5/32", For barbed fitting I.D. 3 mm with union nut
- Colour
- Black
- Shore hardness
- D 52 +/-3
- Material tubing
- TPE-U(PU)
- Product type
- Pneumatic hoses
- Product group
- Pneumatics
- Roll size
- 50 m
- Temperature max
- 60 °C
- Pressure max
- 10 bar
- Temperature min
- -35 °C
- Type
- Shore D 52 +/-3
- Sales unit
- Roll
- Carbon footprint (EPD)
- 0.0623 kg CO2e per M
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 39173200
- HS code
- 3917.32
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4052568045197
- MPN 197390
Product Documentation
Document preview: PUN-H-4X0,75-SW — Festo product documentation
