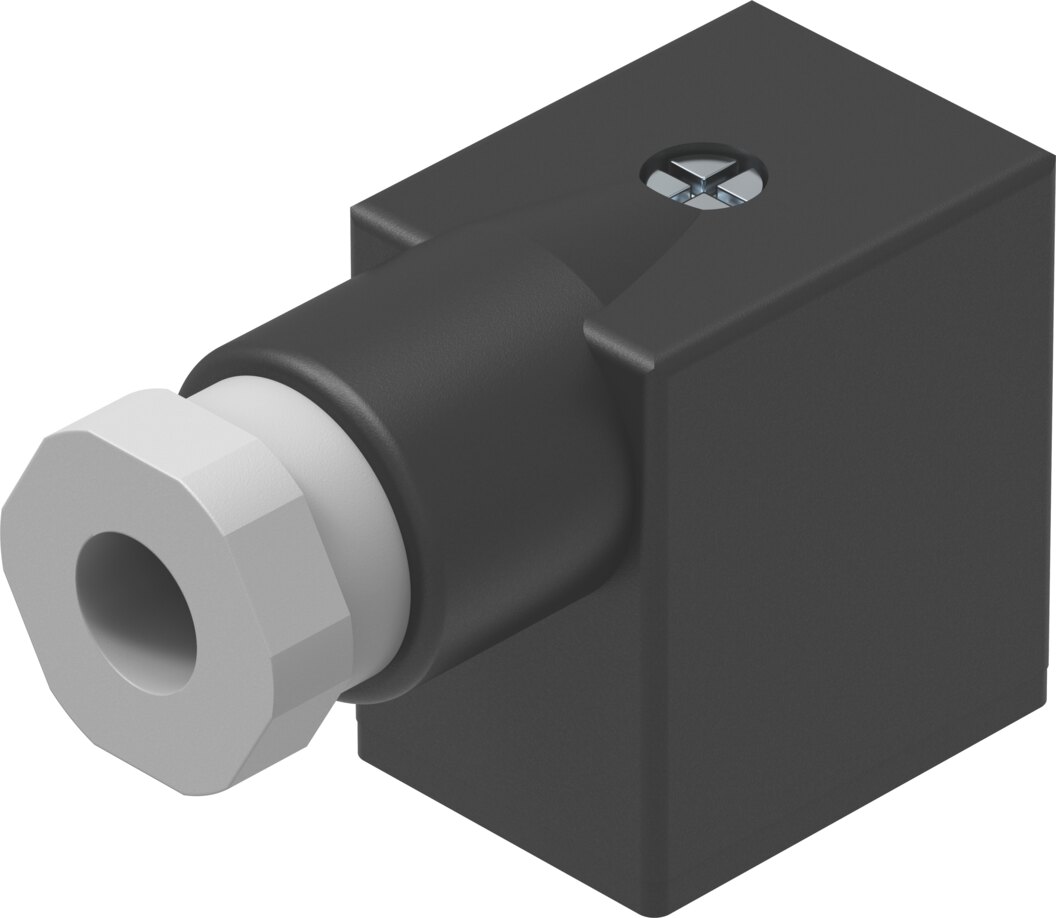

Festo MSSD-F Plug socket
Pricing
Request a quote
We reply within 24 hours
Overview
Festo MSSD-F Plug socket (part number 34431) is listed under Pneumatics / Pneumatic Components. Type code: MSSD-F; Product category: Plugs for valves; Type of mounting: On solenoid valve via M3 central screw; Cable outlet: Angled; Mounting position: Any; Product weight: 17 g.
Technical Specifications
- Manufacturer part number (MPN)
- 34431
- Type code
- MSSD-F
- EAN / GTIN
- 4052568009793
- Product category
- Plugs for valves
- Type of mounting
- On solenoid valve via M3 central screw
- Cable outlet
- Angled
- Mounting position
- Any
- Product weight
- 17 g
- Electrical connection
- 3-pin, Angled socket, Square design MSF
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, connection pattern
- 00995628
- Electrical connection 2
- Screw terminal
- Operational voltage range DC
- 0 ... 250 V
- Operational voltage range AC
- 0 ... 250 V
- Current rating at 40° C
- 16 A
- Protective conductor connection
- Available
- Cable fitting
- Pg9
- Cable diameter
- 6 ... 8 mm
- Nominal cross section conductor
- 1.5 mm²
- Degree of protection
- IP65
- Ambient temperature
- -25 ... 90 °C
- CE mark (see declaration of conformity)
- To EU Low Voltage Directive, In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions, To UK regulations for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material housing
- Polymer
- Housing colour
- Black
- Material seals
- NBR
- Product type
- Pneumatic coils/cable connectors
- Product group
- Pneumatics
- Temperature min
- -25 °C
- Temperature max
- 90 °C
- Carbon footprint (EPD)
- 0.1520 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 85366990
- HS code
- 8536.69
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4052568009793
- MPN 34431
Product Documentation
More from Festo
Festo
Festo VACF-A-A1-7 Solenoid coil
8030823
Festo
Festo DNC-32-20-PPV-A ISO cylinder
1922617
Festo
Festo ADVC-4-2,5-A-P Short-stroke cylinder
188054
Festo
Festo LFR-1/4-D-MIDI Filter regulator
186481
Festo

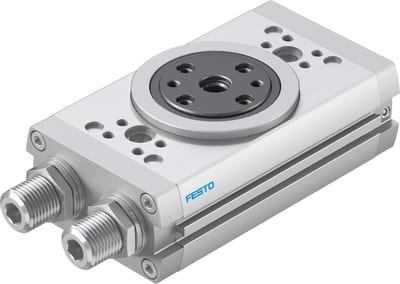

Festo DRRD-32-180-FH-PA Semi-rotary drive
1578512
Festo
Festo ADN-80-30-I-PPS-A Compact cylinder
572722
Festo

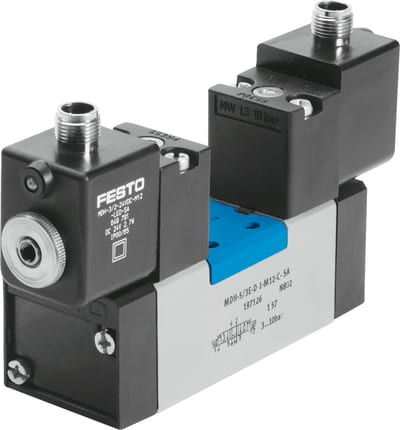

Festo MDH-5/3E-D-3-M12-C Solenoid valve
