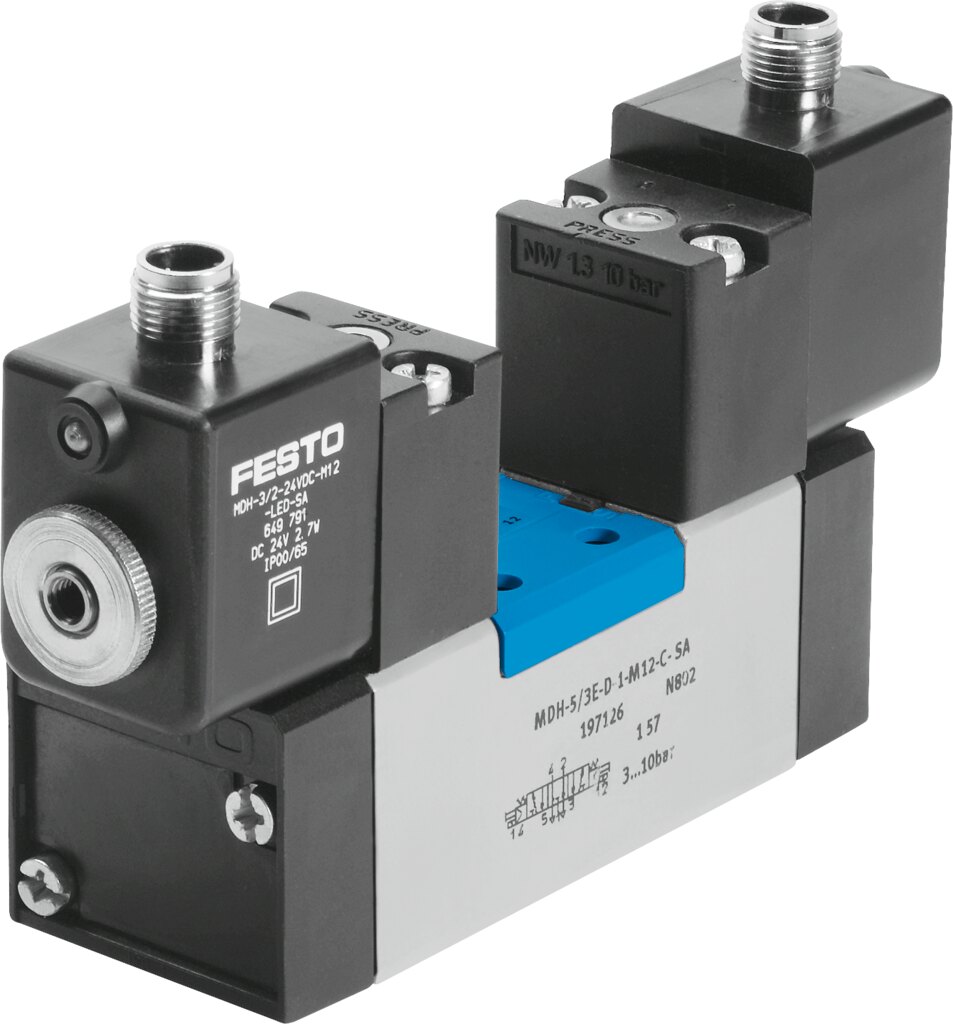

Festo MDH-5/3E-D-3-M12-C Solenoid valve

Festo MDH-5/3E-D-3-M12-C — Solenoid valve, standards-based directional control valves. valve function 5/3 exhausted; operating pressure 3. 10 bar; conforms to standard ISO 5599-1.

Manufacturer part number (MPN)

533017

Type code

MDH-5/3E-D-3-M12-C

EAN / GTIN

4052568259686

Product category

Standards-based directional control valves

Valve function

5/3 exhausted

Type of actuation

Electrical

Construction width

65 mm

Standard nominal flow rate (standardised to DIN 1343)

4600 l/min

pneumatic working port

Sub-base size 3 to ISO 5599-1, G1/2

Operating voltage

24 V DC

Operating pressure

3 ... 10 bar

Design

Piston gate valve

Type of reset

Mechanical spring

Degree of protection

IP65

Nominal size

14.5 mm

Grid dimension

71 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Conforms to standard

ISO 5599-1

Manual override

Non-detenting

ISO code

357

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991082

lap

Overlap

Switching time off

84 ms

Switching time on

36 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

3800 µs

Max. negative test pulse with 1 signal

4900 µs

Characteristic coil data

24 V DC: 2.7 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-10 ... 50 °C

Sound pressure level

85 dB(A)

Ambient temperature

-10 ... 50 °C

Product weight

1120 g

Electrical connection

M12x1

Type of mounting

On sub-base, Via through-hole and screw

Pilot exhaust port 82

M5

Pilot exhaust port 84

M5

Pneumatic connection, port 1

Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 2

Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 3

Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 4

Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 5

Sub-base size 3 to ISO 5599-1

Material seals

HNBR, NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

M12 mm

Activation

El

Return

Spring

Country of origin

Hungary

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568259686
• MPN 533017
